KD200
Pen Test

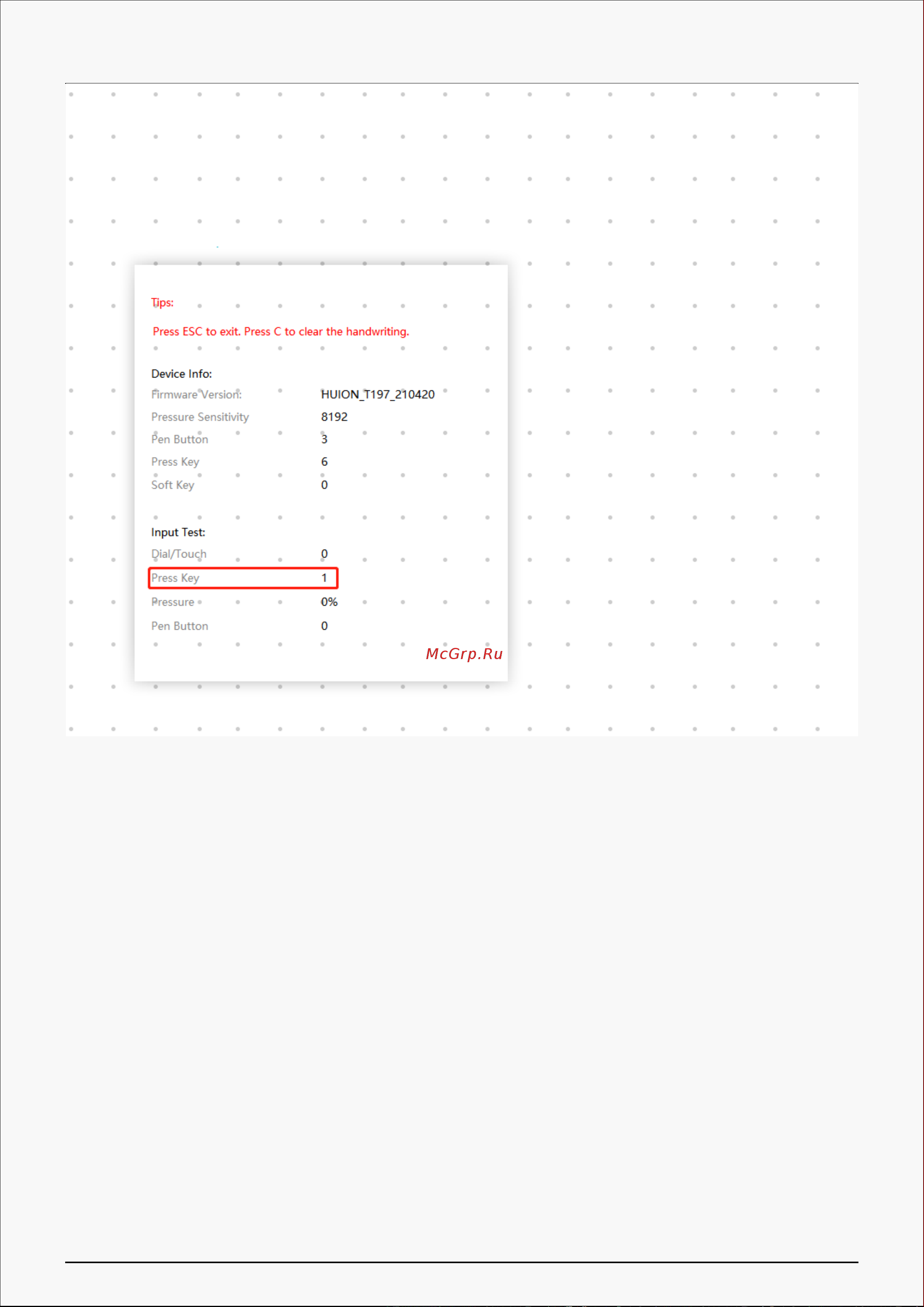

1. Click “Diagnose”, you will see the below interface, hold the pen within 10mm (0.4 inches)
from the surface of the tablet, and you will see relevant data appearing in the “Device Info”.
Move the pen across the surface of the tablet, and the pressure value will change accordingly.
2. Press the pen nib to the surface. When you press it with your maximum force, the pressure
value should change from 0% to 100%.
3. Press the pen nib and pen press keys one at a time. When the pen nib does not touch the
tablet, the “Pen Button” will show 0; when it touches, 1; when you press the down press key, 2;
when you press the up press key, 3.
28 / 37
