Instruction Manual

Description

Dear Customer!

Thank you for purchasing our product. For safety, it is strongly recommended to read

this manual carefully before connecting, operating and/or adjusting the product and keep

the manual for reference in future.

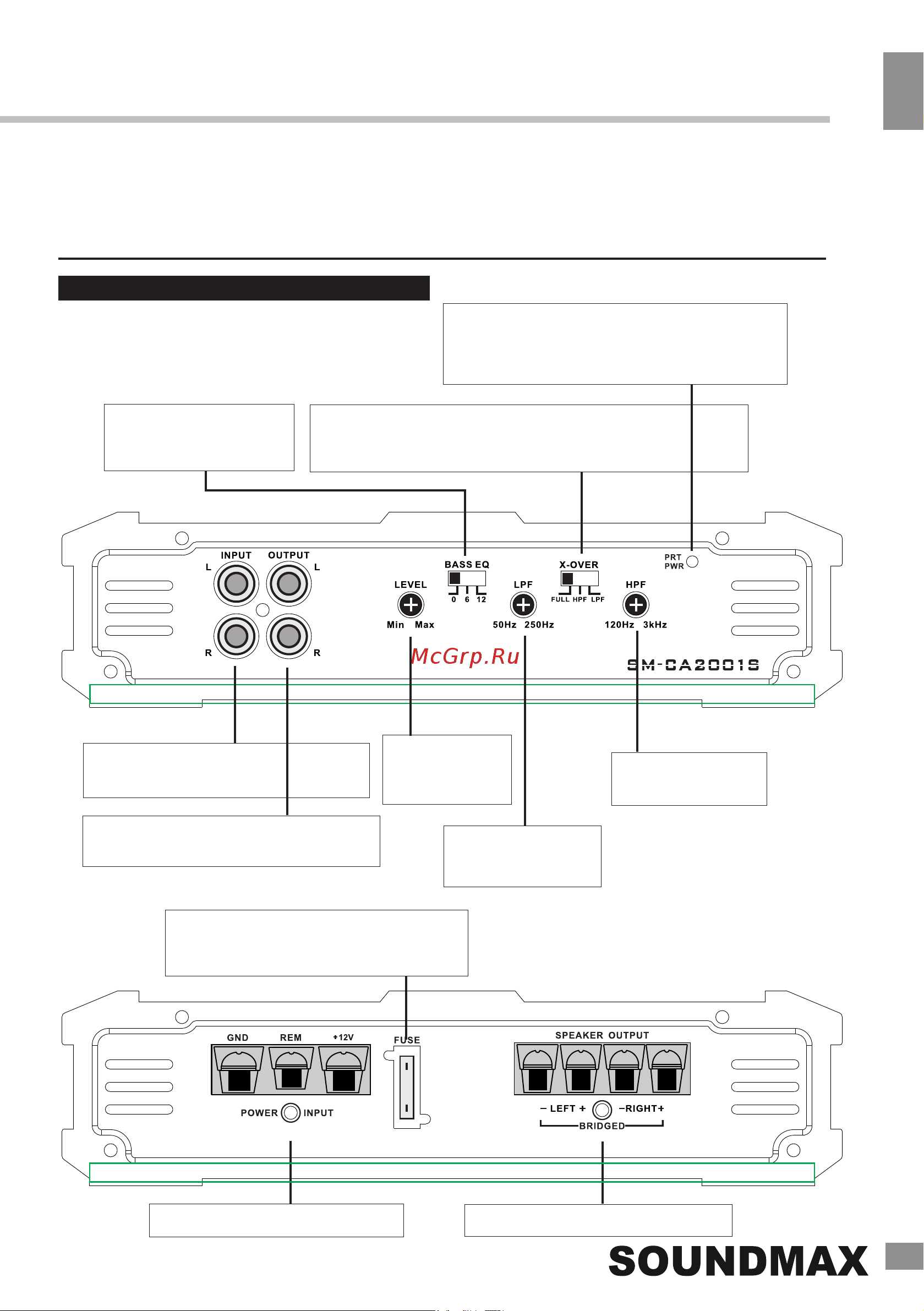

LED light

Lights up in green when the power is on.

Lights up in red the amplifier has entered the safety

mode (short circuit, overload, overheating, etc.).

Bass boost

Bass boost adjustable from

0dB to 6/12dB.

Crossover switch

Routes output of the full range (FULL), or a low pass (LPF), or a

high pass (HPF) filter to the internal power amplifier.

High Pass Filter

Variable high pass filter

from 120 Hz to 3 KHz.

Low Pass Filter

Variable low pass filter

from 50 Hz to 250 Hz.

Input Level

Accepts line level

(RCA) inputs from

MIN to MAX.

Line Input

The line-in RCA jacks must be connected to

the head unit's RCA output jacks.

Line Ouput

Allows you to connect an additional amplifier.

Fuse

Protects the amplifier and the vehicle's on-

board network from short circuits.

Power terminals

Speaker output terminals
