Vertical Cordless Vacuum Cleaner / User Manual

3 Installation

3.1 Intended use

This appliance is intended for household use and it is not suitable for industrial use.

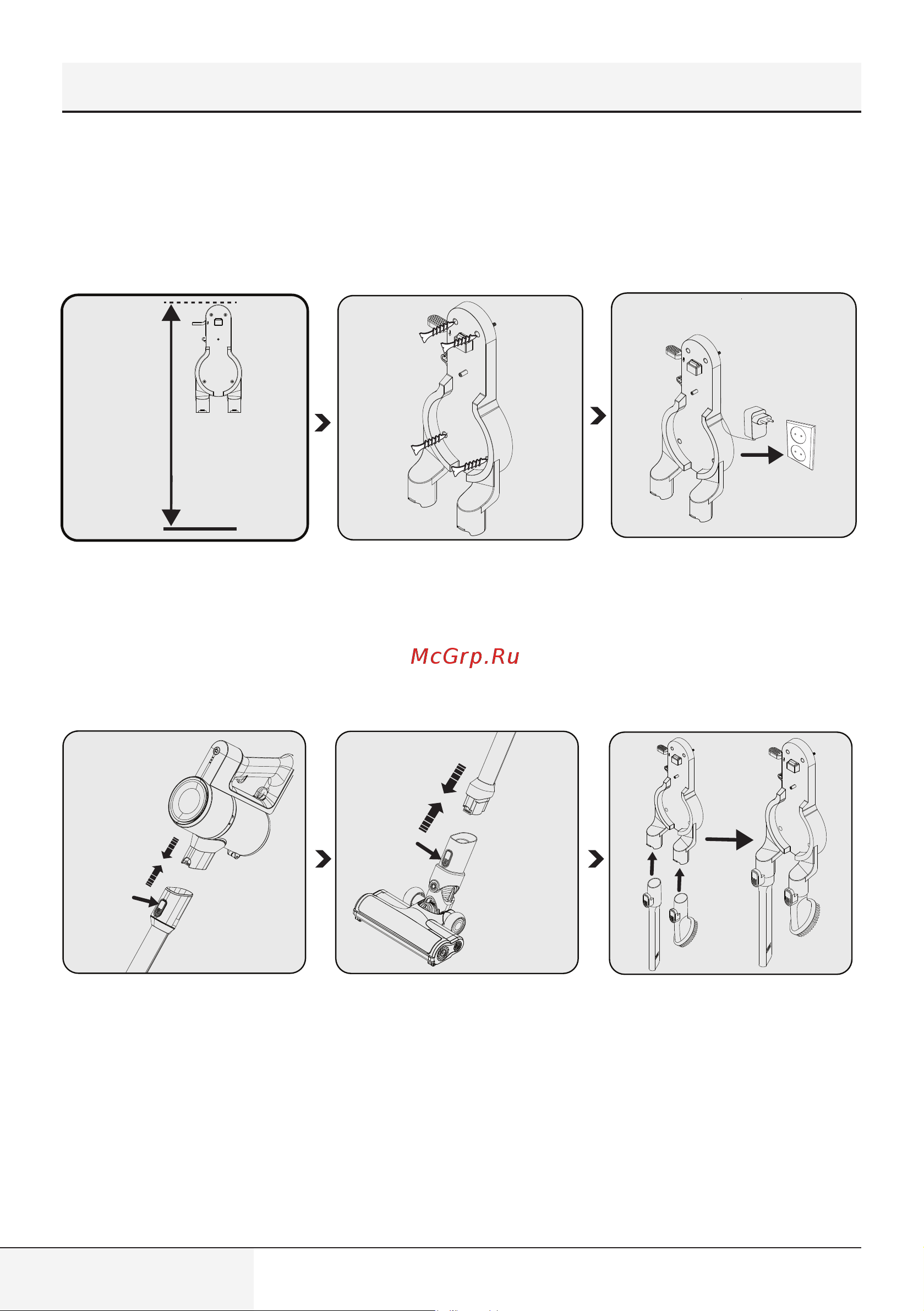

3.2 Installation of the charging dock

104-106 cm

Position the charging dock (8) at

a height of 104-106 cm from the

ground.

1- Fix four dowels (17) on the wall

2- Place four screws (16) into their

locations on the charging dock (8)

and mount on the dowels on the

wall.

Plug the charging adaptor (13) to

the socket.

3.3 Installation of the body and the brush

Push the tube (10) in the direction

of arrow towards the body by

pushing on the tube release button

(6).

Press the electric turbo brush

release button (11) on the electric

turbo brush (12) and push it in the

direction of arrow towards the tube.

Attach crevice attachment (15) and

dust brush (15) to the charging

dock (8).
