Candy CEHDD30TCT/1 [10/24] Before locating the fixing brackets

EN-17

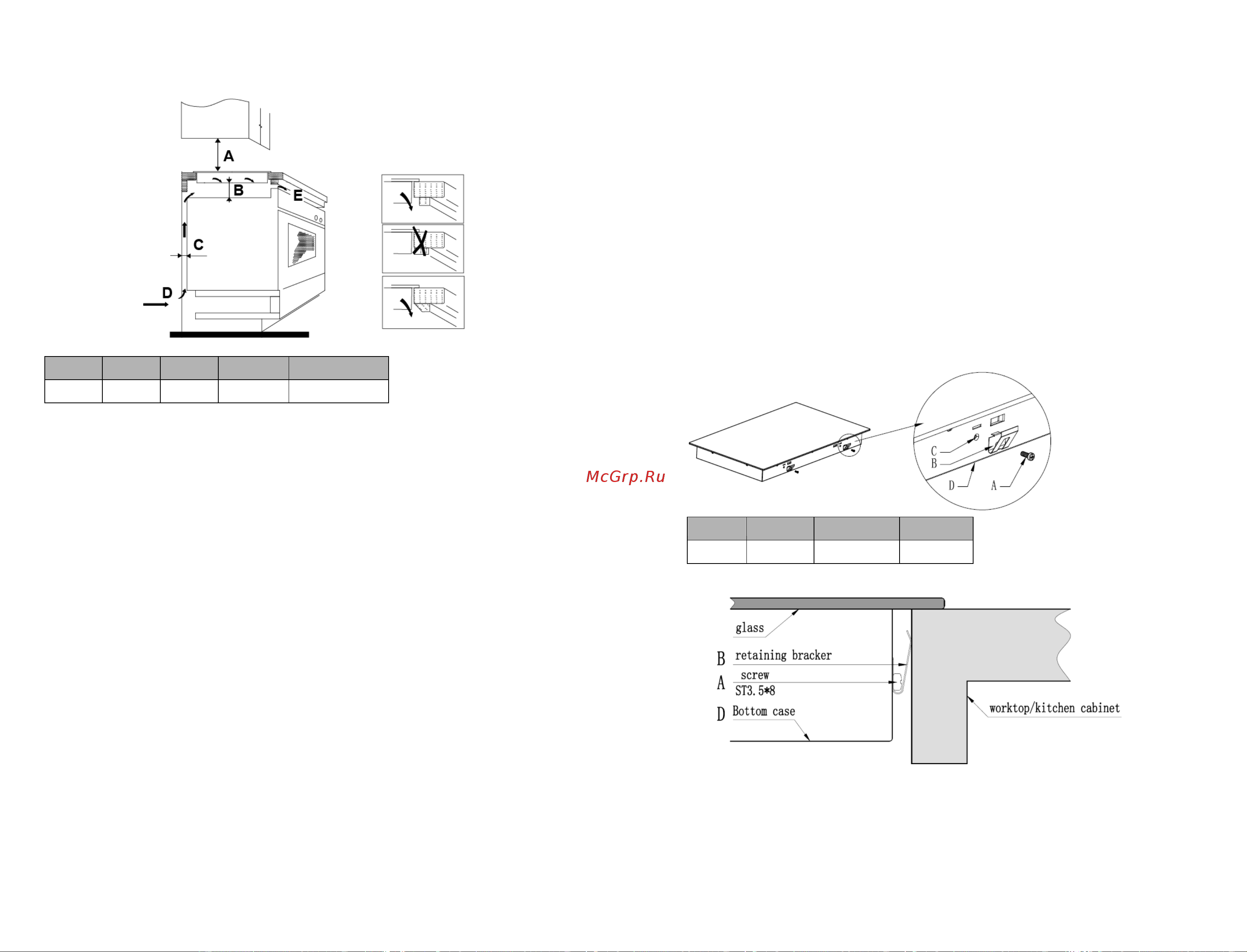

A(mm) B(mm) C(mm) D E

760 50 mini 30 mini Air intake

Air exit 5 mm

Before you install the hob, make sure that

• the work surface is square and level, and no structural members interfere with

space requirements

• the work surface is made of a heat-resistant material

• if the hob is installed above an oven, the oven has a built-in cooling fan

• the installation will comply with all clearance requirements and applicable

standards and regulations

• a suitable isolating switch providing full disconnection from the mains power

supply is incorporated in the permanent wiring, mounted and positioned to

comply with the local wiring rules and regulations.

The isolating switch must be of an approved type and provide a 3 mm air gap

contact separation in all poles (or in all active [phase] conductors if the local

wiring rules allow for this variation of the requirements)

• the isolating switch will be easily accessible to the customer with the hob

installed

• you consult local building authorities and by-laws if in doubt regarding

installation

• you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the

wall surfaces surrounding the hob.

EN-18

When you have installed the hob, make sure that

• the power supply cable is not accessible through cupboard doors or drawers

• there is adequate flow of fresh air from outside the cabinetry to the base of the

hob

• if the hob is installed above a drawer or cupboard space, a thermal protection

barrier is installed below the base of the hob

• the isolating switch is easily accessible by the customer

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not

apply force onto the controls protruding from the hob.

Fix the hob on the work surface by screw 4 brackets on the bottom case of hob

(see picture) after installation.

screw

bracket

Screw hole

base

Cautions

1. The ceramic cooker hob must be installed by qualified personnel or technicians.
