User manual
LASER DISTANCE METER
User manual
LASER DISTANCE METER
User manual
LASER DISTANCE METER
User manual
LASER DISTANCE METER
User manual
LASER DISTANCE METER
User manual
LASER DISTANCE METER
User manual
LASER DISTANCE METER
User manual
LASER DISTANCE METER
User manual
LASER DISTANCE METER
User manual
LASER DISTANCE METER
User manual
LASER DISTANCE METER
User manual
LASER DISTANCE METER
User manual
LASER DISTANCE METER
User manual
LASER DISTANCE METER
User manual
LASER DISTANCE METER
CONDTROL SMART 20 CONDTROL SMART 20 CONDTROL SMART 20
CONDTROL SMART 20 CONDTROL SMART 20 CONDTROL SMART 20CONDTROL SMART 20
CONDTROL SMART 20 CONDTROL SMART 20 CONDTROL SMART 20CONDTROL SMART 20
CONDTROL SMART 20 CONDTROL SMART 20 CONDTROL SMART 20CONDTROL SMART 20
UTILIZATION
Expired tools, accessories and package should be passed for
waste recycle. Please send the product to the following address
for proper recycle:
CONDTROL GmbH
Wasserburger Strasse 9
84427 Sankt Wolfgang
Germany
Do not throw the product in municipal waste!
According to European directive 2002/96/ЕC expired measuring
tools and their components must be collected separately and
submitted to environmentally friendly recycle of wastes.
2) Continuous measurement (tracking)
When in single distance measurement mode press and hold
for 1 sec. button . The device will take measurements
one after the other, showing the last measured value. To stop
continuous measurement press button or .
To exit the mode short press .
Display backlight
When the device is on, backlight turns on automatically
when you press button . The backlight will turn off
automatically in 10 seconds after last operation.
Reference point
Reference point is the bottom end of the device.
Measuring unit.
Press simultaneously buttons and to select the
reference point – m (meter) or ft (foot).
MEASUREMENTS
1) Single distance measurement
Short press button to switch on the device. Laser beam
will be on. Point the laser beam at the target and short press
button for single distance measurement. The result of
measurement will appear in the main line on the display.
To perform next single distance measurement press button
to turn on the laser beam and then press again.
Congratulations on your purchase of laser distance meter
CONDTROL SMART 20.
Safety instructions can be found in the end of this user manual
and should be carefully read before you use the device for the
first time.
FUNCTIONS/APPLICATIONS
Laser distance meter SMART 20 is intended to measure
distance at indoor building areas.
PACKAGE
1. Laser distance meter – 1pc.
2. Batteries (type ААА) - 2 pcs.
3. User manual – 1 pc.
SPECIFICATIONS
Working range 0,2…20m*
Smallest unit displayed 1mm
Measuring accuracy ±3mm**
Laser type
Class II,
630-670nm,
< 1mW
Continuous measurement (tracking) +
Display backlight +
Automatic shutdown of laser 30sec.
Automatic shutdown of laser distance meter 180sec.
Storage temperature -10…+60°С
Working temperature 0…+40°С
Battery
2 х 1.5V AAA LR3
(alkaline)
Battery life
up to 5000
measurements
Dimensions 100х40х25mm
Weight 80g
* Use a reflecting plate to increase the measurement range during
daylight or if the target has poor reflective properties.
** In favorable conditions (good target surface properties, room
temperature) up to 10 m. In unfavorable conditions, such as intense
sunshine, poorly reflecting target surface or considerable temperature
variations, accuracy can decrease at distance over 10m.

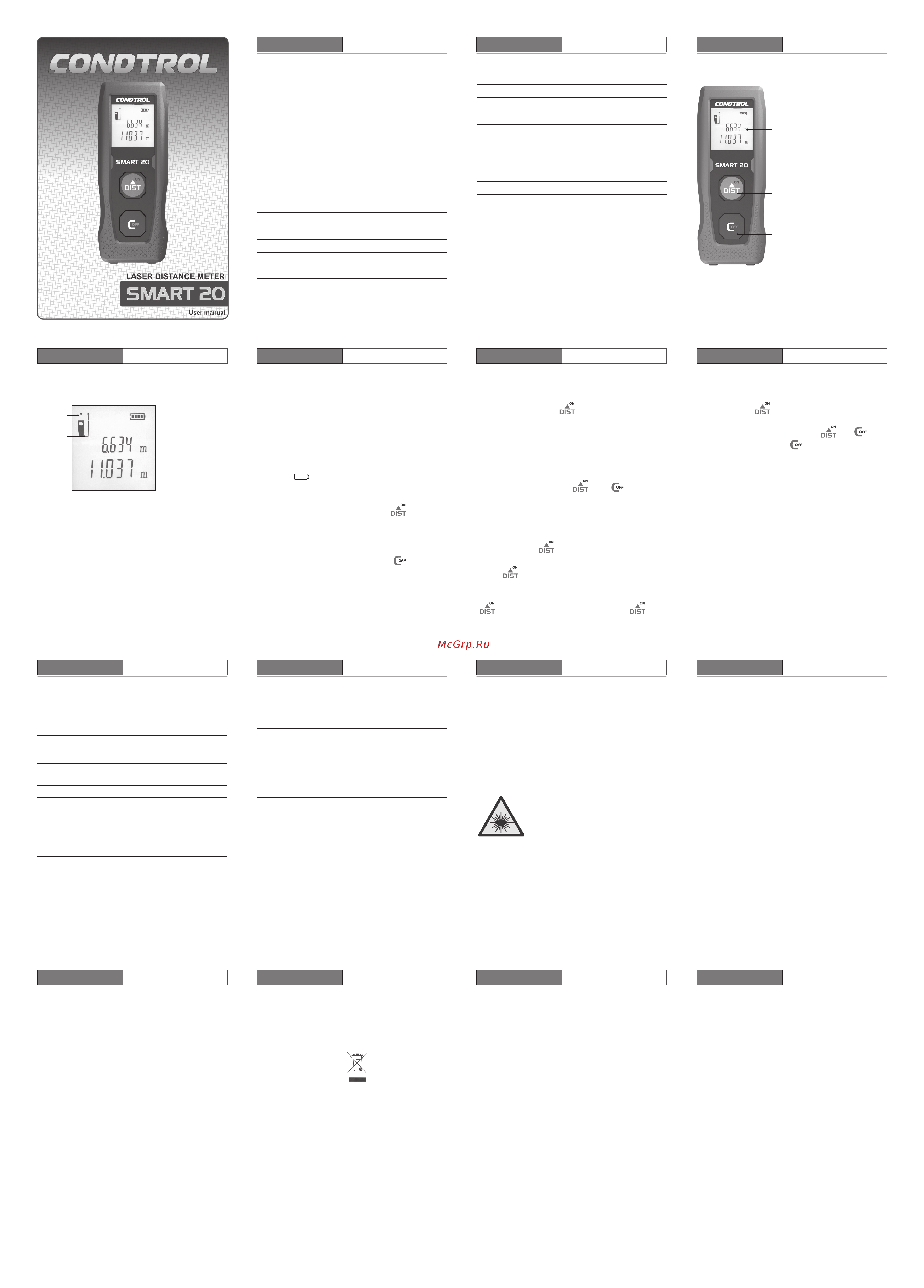

Display
Switch on / turn on laser
beam
/ make measurement
/continuous measurement
PRODUCT DESCRIPTION
Switch off/clear
Display
1. Main display line
2. Secondary display line
3. Battery charge level
4. Measuring unit
5. Laser beam indication
6. Reference point
6
5
OPERATION
Insert/replace batteries
Remove the battery cover. Insert the batteries, observing
correct polarity. Put the battery cover back. Remove the
batteries when the device is not used for a long time to avoid
corrosion and battery depletion. Both batteries should be
replaced at the same time. Both batteries must be of the same
brand with the same charge level. Replace batteries when you
see symbol on the display.
Switch on/off
Switch on: press and hold for 1 sec. button .
The device will turn on and enter single distance measuring
mode. Laser beam will turn on simultaneously. Laser beam
automatically turns off in 30 seconds after the last operation.
Switch off: press and hold for 1 sec. button .
In order to save battery power the device will switch off
automatically within 3 minutes after the last operation.
MESSAGE CODES
While operation, the following codes/symbols may appear on
the display:
Message Cause Solution
204 Calculation error
Refer to user manual, repeat
the procedure.
208 Excessive current
Please contact the distributor
or authorized service center.
220 Batteries are low Replace the batteries.
252
Operating
temperature is
too high
Cool down the device to
temperature within 0…+40
0
С.
253
Operating
temperature is
too low
Warm up the device to
temperature within 0…+40
0
С
255 Received signal is
too weak
Make measurements against
surface with better reflective
properties. Use a reflecting
plate.
SAFETY REGULATIONS
The user manual should be read carefully before you use the
device for the first time. Unintended use of the device can
be dangerous for human’s health and cause serious injury.
Keep this user manual. If the device is given to somebody for
temporary use, be sure to enclose user manual to it.
- Do not misuse the device.
- Do not remove warning signs and protect them from abrasion,
because they contain information about safe operation of the
device.
Laser radiation!
Do not stare into beam
Class 2 laser
<1 mW, 630-670 nm
IEC 60825-1: 2007-03
- Do not look into the laser beam or its reflection, with
unprotected eye or through an optical instrument. Do not point
the laser beam at people or animals without the need. You can
dazzle them.
- To protect your eyes close them or look aside.
- It is prohibited to disassemble or repair the device yourself.
Entrust device repair to qualified personnel and use original
spare parts only.
- Do not use the device in explosive environment, close to
flammable materials.
256
Received signal is
too strong
Make measurements against
surface with lower reflective
properties. Use a reflecting
plate.
261
Outside of
measuring range
Carry out measurements
within the range acceptable
for this device.
500
Hardware error
Switch on/off the device several
times. If this error still appears,
please contact the distributor
or authorized service center.
- Avoid heating the batteries to avoid the risk of explosion and
electrolyte leakage. In case of liquid contact with skin, wash
it immediately with soap and water. In case of contact with
eyes, flush with clean water during 10 minutes and consult the
doctor.
CARE AND MAINTENANCE
Attention! The instrument is a high precision device and
requires careful handling. The following recommendations will
extend the life of the device:
- Do not point the device at the sun
- Protect the device from bumps, falls and excessive vibration;
do not let liquids, construction dust and foreign objects get
inside the device.
- Do not expose the device to extreme temperatures.
- If liquids get inside the device first remove batteries, then
contact a service center.
- Do not store or use the device under high humidity conditions
for a long time.
- Clean the device with soft wet cloth.
- Keep device optics clean and protect it from mechanical
damage.
- Сarry out control measurements occasionally, especially if
the device is subject to excessive mechanical or other impact,
before and after making important measurements.
WARRANTY
All CONDTROL GmbH products go through post-production
control and are governed by the following terms of warranty.
The buyer’s right to claim about defects and general provisions
of the current legislation do not expire.
1) CONDTROL GmbH agrees to eliminate all defects of the
device, discovered during the warranty period, that represent
defect in material or workmanship in full volume and at its own
expense.
2) The warranty period is 24 months and starts from the date
of purchase by end consumer (see the original supporting
document).
3) The warranty doesn’t cover defects resulting from wear
and tear or improper use, malfunction of the device caused by
failure to observe the instructions of this user manual, untimely
maintenance and service and insufficient care, the use of non-
original accessories and spare parts. Modifications in design of
the device relieve the seller from responsibility for warranty
works. The warranty doesn’t cover cosmetic damage, that
doesn’t hinder normal operation of the device.
4) CONDTROL GmbH reserves the right to decide on
replacement or repair of the device.
5) Other claims not mentioned above, are not covered by the
warranty.
6) After warranty works are carried out by CONDTROL GmbH
warranty period is not renewed or extended.
7) CONDTROL GmbH is not liable for loss of profit or
inconvenience associated with a defect of the device, the rental
cost of alternative equipment for the period of repair.
This warranty applies to German law except provision of the
United Nations Convention on contracts for the international
sale of goods (CISG).
In warranty case please return the device to retail seller or send
it with defect description to the following address:
CONDTROL GmbH
Wasserburger Strasse 9
84427 Sankt Wolfgang
Germany
