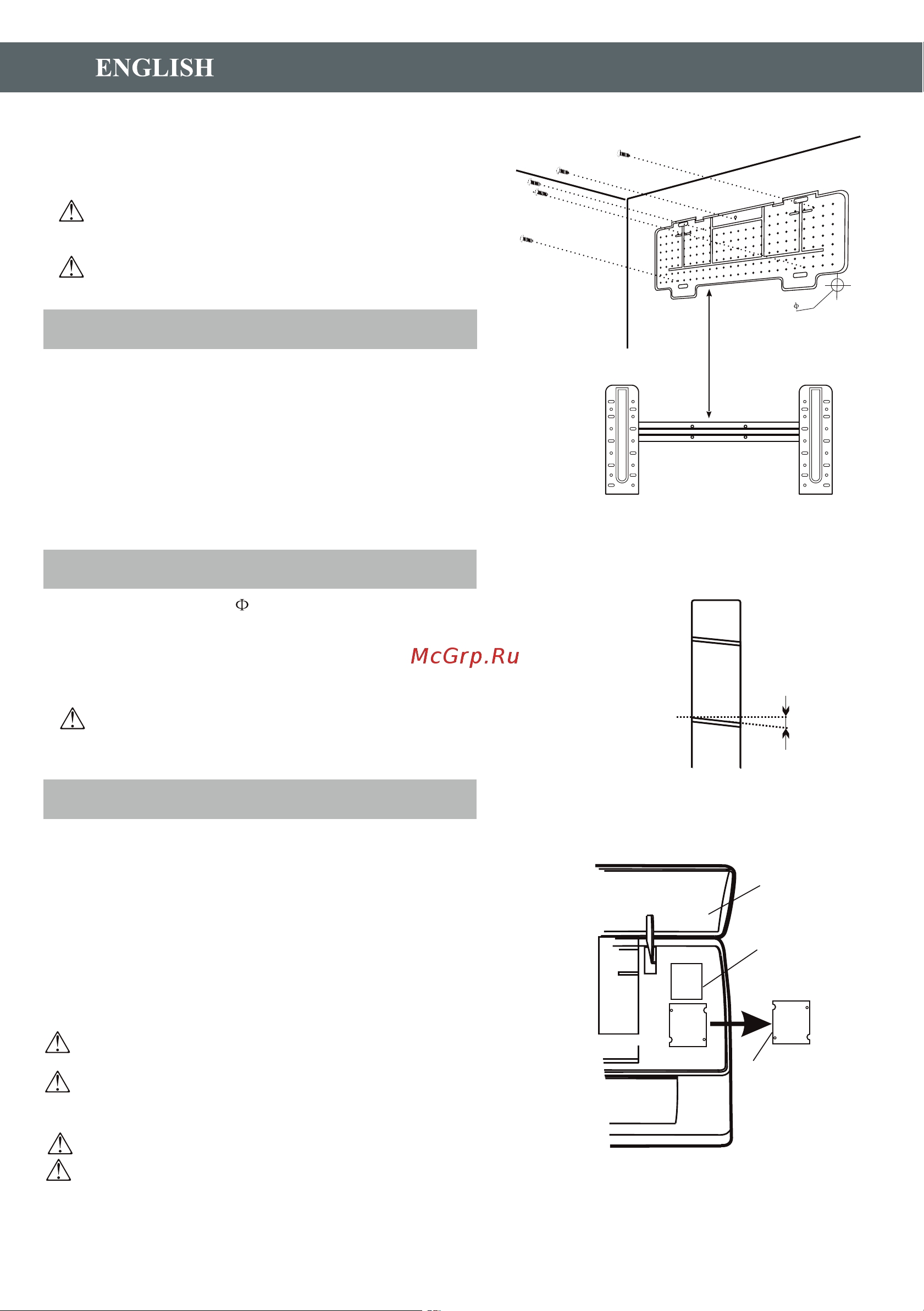

INSTALLATION MANUAL---Installation of the Indoor unit
50
5mm
Note : Keep the drain pipe down towards the direction
of the wall hole, otherwise leakage may occur.
Before starting installation, decide on the position of the
indoor and outdoor units, taking into account the minim-
um space reserved around the units
To install, proceed as follows:
The hole must slope downwards towards the exterior
Note : The shape of the mounting plate may be different
from the one above, but installation method is similar .
Indoors
Outdoors
Front panel
Terminal block cover
wiring diagram
47
Installation of the mounting plate
Drilling a hole in the wall for the piping
Electrical connections---Indoor unit
Do not install your air conditioner in a
wet room such as a bathroom or laundry etc
The installation site should be 250cm or more
above the floor.
1 Always mount the rear panel horizontally and vertically
2. Drill 32 mm deep holes in the wall to fix the
plate;
3. Insert the plastic anchors into the hole;
4 .Fix the rear panel on the wall with provided tapping screws
5.Be sure that the rear panel has been fixed firmly enough
to withstand the weight
1. Make the piping hole ( 55) in the wall at a slight
downward slant to the outdoor side.
2. Insert the piping-hole sleeve into the hole to prevent the
connection piping and wiring from being damaged when
passing through the hole.
1. Open the front panel.
2. Take off the cover as indicated in the piciure ( by
removing a screw or breaking the hooks).
3. For the electrical connections, see the circuit diagram
on the right part of the unit under the front panel.
4. Connect the cable wires to the screw terminals by
following the numbering ,Use wire size suitable to
the electric power input (see name plate on the unit)
and according to all current national safety code
requirements.
The cable connecting the outdoor and indoor units
must be suitable for outdoor use.
The plug must be accessible also after the appliance
has been installed so that it can be pulled out if nece-
ssary.
An efficient earth connection must be ensured.
If the power cable is damaged, it must be replaced by
an authorised Service Centre.
Note:Optional the wires can been connected to the main
PCB of indoor unit by manufacturer according to the
model without terminal block.
