6. Make sure that each skid shoe firmly touches the surface.

Then tighten the mounting nuts.

NOTICE To prevent contact with the auger, make sure

that the mounting nuts are outside the auger housing.

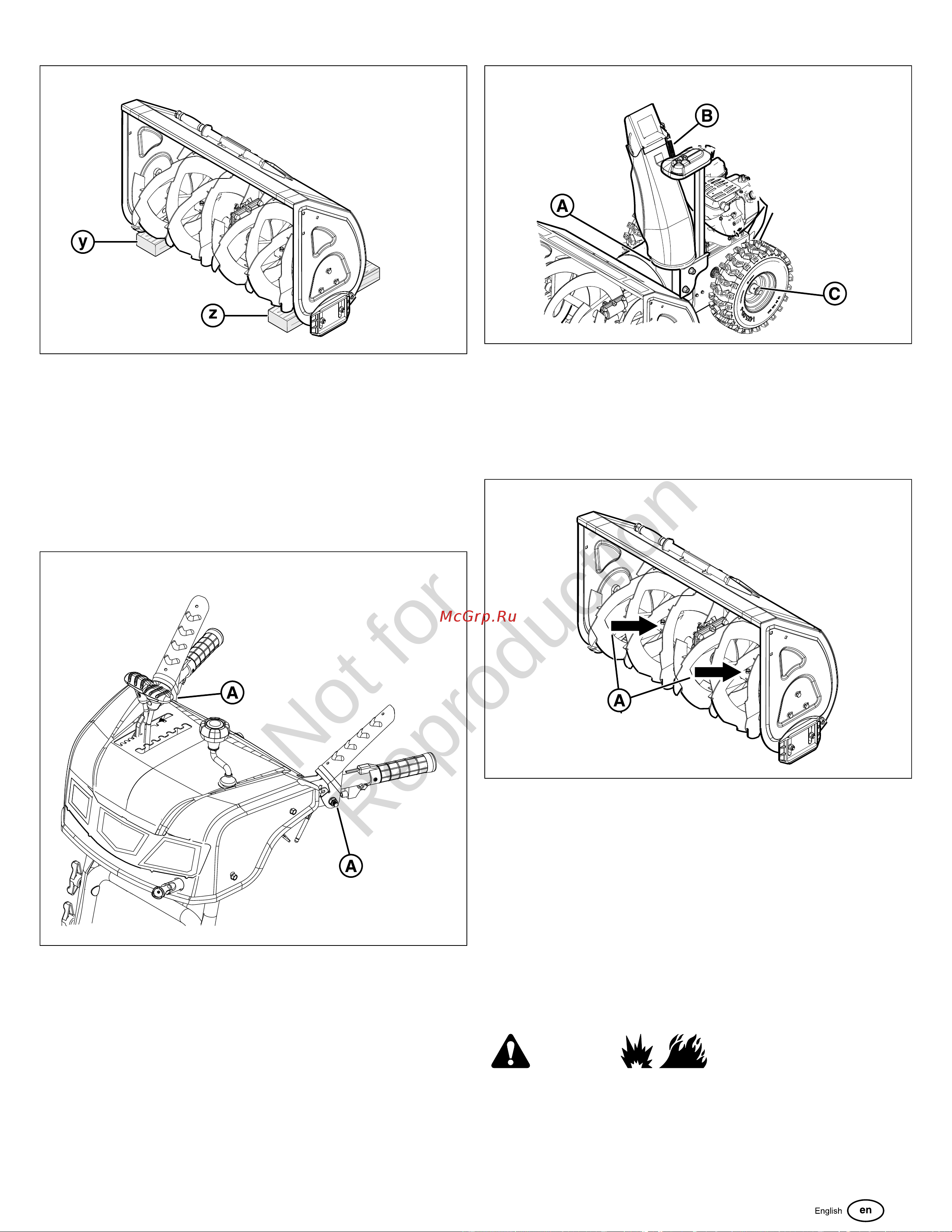

Lubricate the Control Lever Linkage

Apply grease to the control lever linkage at the locations (A)

as shown in Figure20.

Lubricating the Discharge Chute,

Deflector, and Wheel Axle

1. STOP the engine and remove the key.

2. Lubricate the discharge chute (A, Figure21) with lithium

grease.

3. Lubricate the deflector (B) with clean engine oil.

4. Lubricate the wheel axles (C) with lithium grease.

Lubricating the Auger Assembly

1. STOP the engine and remove the key.

2. Lubricate the auger shaft assembly (A, Figure22) with

grease at the grease fittings, (if equipped).

Lubricating the Hex Shaft and Gear

For friction drive systems only:

NOTICE Do not let grease or oil touch the rubber friction

wheel or the disc drive plate. If grease or oil touches the

friction wheel, replace it. Do not clean it. If grease or oil

touches the disc drive plate, clean it thoroughly with an

alcohol based solvent.

1. STOP the engine. Remove the ignition key or push/pull

key.

2. Set the speed select lever to the first forward gear.

WARNING

Fuel and its vapors are extremely flammable, which could

cause burns or fire that result in death or serious injury.

• During maintenance make sure that the fuel tank is

empty. Fuel leakage can result in a fire or explosion.

3. Lift the snowthrower up on the auger housing end.
