Note:When you fill the crankcase with oil, do not let the

snowthrower stand on the auger housing for an extended

period of time.

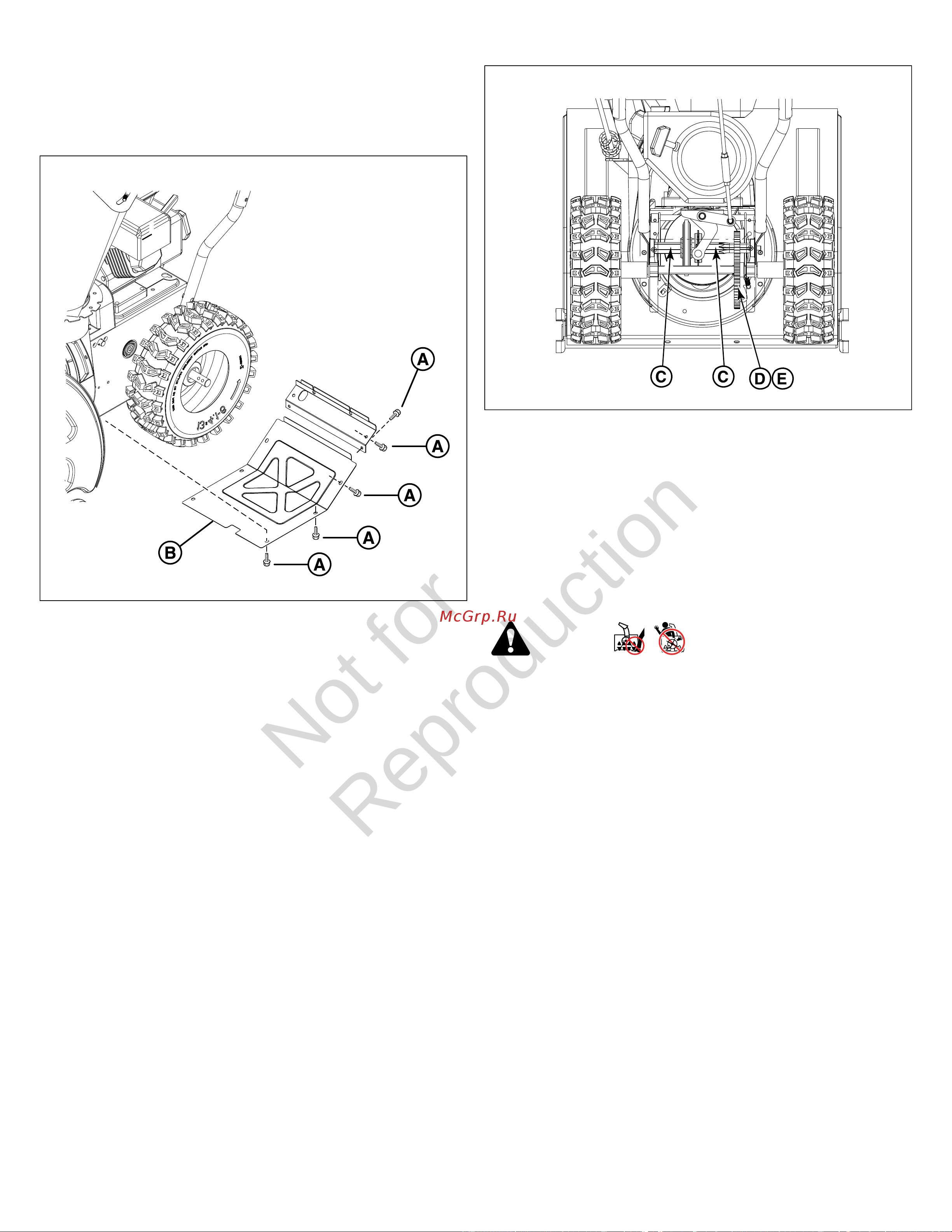

4. Remove the screws (A,Figure23) and bottom panel (B).

5. Apply a very thin coat of50 weight synthetic motor oilto

the hex shaft (C,Figure24). Do this before storage and at

the start of each season.

NOTICE Do not let grease or oil touch the rubber friction

wheel or the disc drive plate. If grease or oil touches the

friction wheel, replace it. Do not attempt to clean it. If grease

or oil touches the disc drive plate, clean it thoroughly with

an alcohol based solvent.

6. Lightly, lubricate the sprocket (D)and chain (E)with

motor oil, before storage and at the start of each season.

Adjusting the Traction Control Cable and

Drive Belt

The traction cables and drive belt are adjusted at the factory.

Adjustments are unnecessary. However, if the cables are

stretched or the traction drive belt slips, an adjustment might

be necessary. Please see an Authorized Service Dealer for

these adjustments.

Replacing the Auger ShearPins

DANGER

The snowthrower contains a rotating auger and impeller that

throws snow. Fingers or feet can quickly become caught in

the auger or impeller and result in traumatic amputation or

severe laceration.

• STOP the engine, wait for all moving parts to stop, and

remove the engine key before maintenance or repairs.

1. STOP the engine. Remove the key.

2. Remove the existing shearpinsandclips.

3. Apply grease to the auger grease fittings, (if equipped).

Turn the auger quicklyto lubricate the auger shaft.

4. Align the bolt holes. Install the new shearpins(A,

Figure25) through the auger shaft (B).Install the clips (C)

into the holes of the shear pins.
