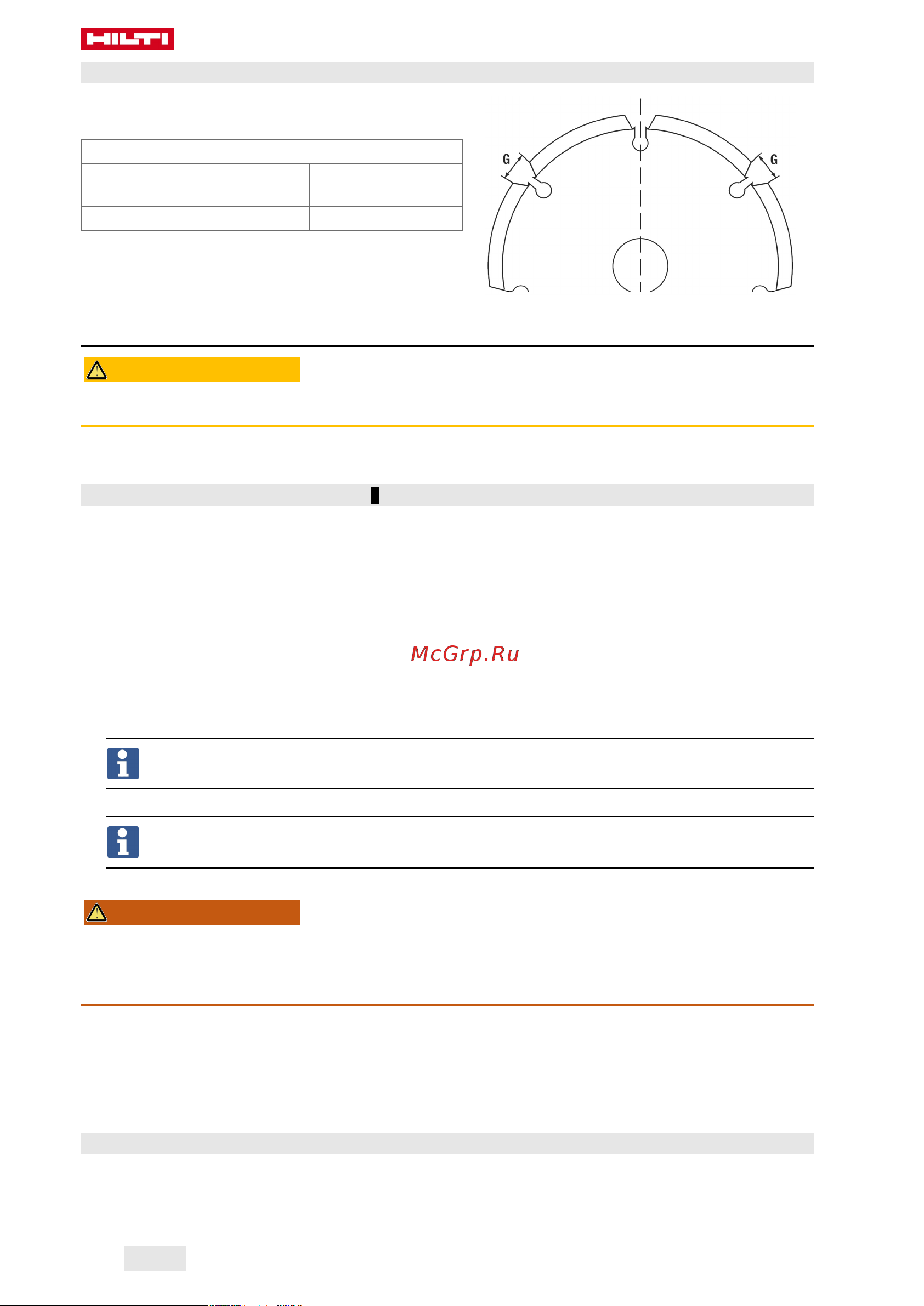

4.3 Dimensions and format of suitable diamond slitting wheels

Diamond slitting wheels must meet the following require-

ments in terms of dimensions and format.

Technical data

Slot width between segments

(G)

≤ 15 mm

Cutting angle Negative

5 Preparations at the workplace

CAUTION

Risk of injury! Inadvertent starting of the product.

▶ Unplug the supply cord before making adjustments to the power tool or before changing accessories.

Observe the safety instructions and warnings in this documentation and on the product.

5.1 Installing diamond slitting discs 2

Pin wrench

;

Clamping nut

Spacer ring

Diamond slitting wheel

Clamping flange

(

Arbor (on the slitting tool)

)

Direction-of-rotation arrow on casing

1. Lay the tool on its left side (spirit level facing up).

2. Press and hold down the carriage release button to unlock the carriage.

3. Swing the carriage out and let go the carriage release button.

4. Fit the clamping flange onto the spindle.

5. Place the first diamond slitting disc on the clamping flange. Make sure that the direction-of-rotation arrow

on the slitting disc points in the same direction as the direction-of-rotation arrow on the power tool.

Comply with the instructions for selecting suitable diamond slitting discs. → page 20

6. Select the correct spacer rings for the width of the slit and place them on the clamping flange.

The width of the slit is equal to the thickness of the two diamond slitting discs and the spacer rings

inserted between them. The widths of the spacer rings are 4 mm, 7 mm, 13 mm and 22.5 mm.

7. Place the second diamond slitting disc in position.

WARNING

Risk of injury! The diamond slitting wheels can work loose in operation if the complete set of spacer rings

is not installed on the clamping flange.

▶ After installing the second diamond slitting wheel, always place all the remaining spacer rings on the

clamping flange.

8. Place the remaining spacer rings on the clamping flange.

9. Press and hold down the spindle lock button.

10. Screw on the clamping nut and tighten it securely with the pin wrench. Release the spindle lock button

and remove the pin wrench.

11. Pivot the carriage towards the body of the machine until it engages in position.

5.2 Connecting the vacuum cleaner

▶ Connect the vacuum cleaner hose to the vacuum cleaner hose connector of the slitting tool.
