NH-U9B SE2

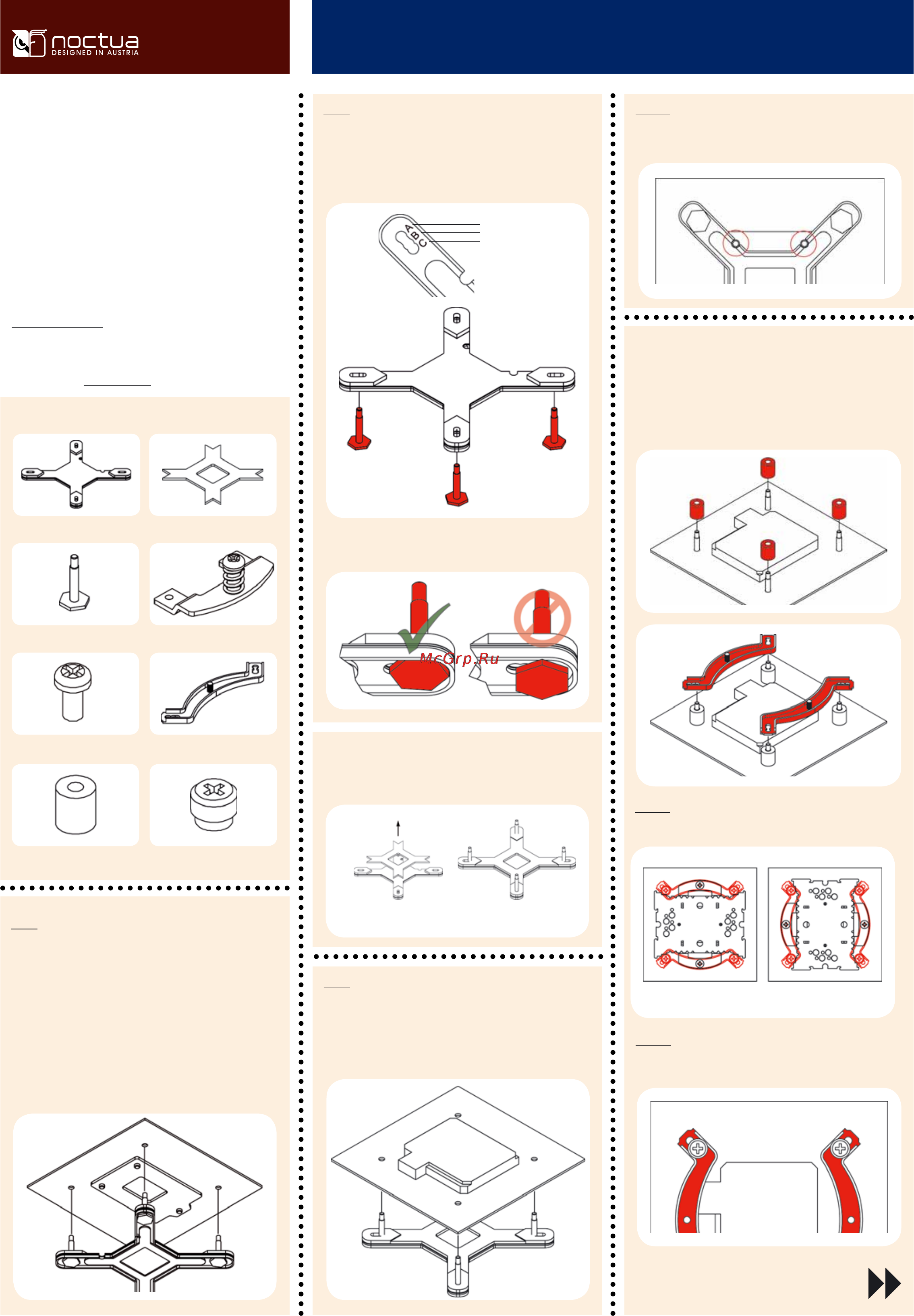

Installation Manual INTEL

Removing the mainboard

Step 1:

In case you want to use the cooler on an assembled system,

you first have to remove the mainboard from the case in order

to be able to install the supplied backplate.

Caution: On LGA1366 and LGA1156/1155, the supplied back-

plate will install over the mainboard’s stock backplate, so the

mainboard’s stock backplate must not be taken off.

Required mounting parts:

First put the four bolts into the holes appropriate for your

mainboard’s CPU socket.

Setting up the backplate

Step 2:

Thank you very much for choosing a Noctua cooler.

This manual will guide you through the installation process

of the SecuFirm

2 mounting system step by step.

Prior to installing the cooler, please consult the

compatibility list on our website and verify that the cooler

is fully compatible with your motherboard. Should you

encounter any difficulties, please check the FAQs on our

website and don’t hesitate to contact our support team at

support@noctua.at. Noctua cannot be held responsible for

any damage or losses caused by compatibility issues.

Multilingual versions of this manual are available

on our website: www.noctua.at

Caution: Please verify that all four bolts are put into the ap-

propriate holes fully pushed in.

Step 4:

Installing the mounting bars

First put the plastic spacers onto the bolts, then add the mount-

ing bars.

Noctua NH-U9B SE2

Installation Manual

4x plastic spacers 4x thumbscrews

1x 3-in-1 Intel backplate

4x bolts for backplate 2x fastening brackets

4x short screws

2x mounting bars

LGA1366 (80mm)

LGA1156/1155 (75mm)

LGA775 (72mm)

For use on LGA1366 and LGA1156/1155 mainboards, please

remove the rubber inlay. Make sure that the rubber inlay is

in place for LGA775.

LGA1366 & LGA1156/1155 LGA775

Caution: On LGA1156/1155, please make sure that the two

cuts in the supplied backplate align with the screws of the main-

board’s stock backplate.

Caution: Choose the alignment of the mounting bars according

to the desired final orientation of the cooler:

Orientation A

Step 3:

Attaching the backplate

Place the backplate on the rear side of the mainboard so that

the bolts stick through the mounting holes.

Caution: Make sure that the curved sides of the mounting bars

are pointing outwards.

Orientation B

LGA775 rubber inlay
