Инструкция по эксплуатации Страница: 7

Denzel CSL-36-01 26001 [7/24] Speed adjustment

Содержание

Похожие устройства

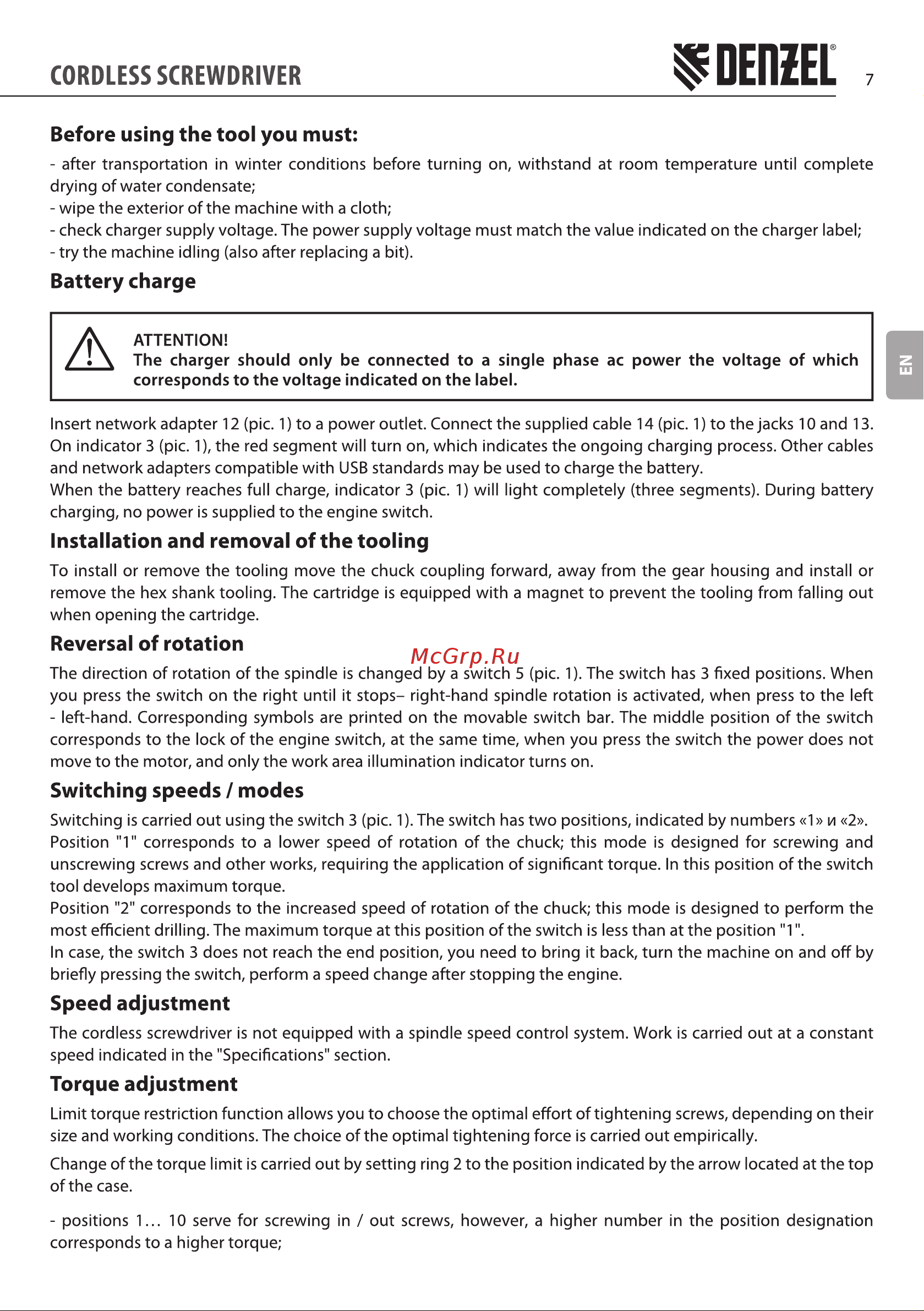

CORDLESS SCREWDRIVER DERZEL Before using the tool you must after transportation in winter conditions before turning on withstand at room temperature until complete drying of water condensate wipe the exterior of the machine with a cloth check charger supply voltage The power supply voltage must match the value indicated on the charger label try the machine idling also after replacing a bit Battery charge A ATTENTION The charger should only be connected to a single phase ac power the voltage of which corresponds to the voltage indicated on the label Insert network adapter 12 pic 1 to a power outlet Connect the supplied cable 14 pic 1 to the jacks 10 and 13 On indicator 3 pic 1 the red segment will turn on which indicates the ongoing charging process Other cables and network adapters compatible with USB standards may be used to charge the battery When the battery reaches full charge indicator 3 pic 1 will light completely three segments During battery charging no power is supplied to the engine switch Installation and removal of the tooling To install or remove the tooling move the chuck coupling forward away from the gear housing and install or remove the hex shank tooling The cartridge is equipped with a magnet to prevent the tooling from falling out when opening the cartridge Reversal of rotation The direction of rotation of the spindle is changed by a switch 5 pic 1 The switch has 3 fixed positions When you press the switch on the right until it stops right hand spindle rotation is activated when press to the left left hand Corresponding symbols are printed on the movable switch bar The middle position of the switch corresponds to the lock of the engine switch at the same time when you press the switch the power does not move to the motor and only the work area illumination indicator turns on Switching speeds I modes Switching is carried out using the switch 3 pic 1 The switch has two positions indicated by numbers 1 u 2 Position 1 corresponds to a lower speed of rotation of the chuck this mode is designed for screwing and unscrewing screws and other works requiring the application of significant torque In this position of the switch tool develops maximum torque Position 2 corresponds to the increased speed of rotation of the chuck this mode is designed to perform the most efficient drilling The maximum torque at this position of the switch is less than at the position 1 In case the switch 3 does not reach the end position you need to bring it back turn the machine on and off by briefly pressing the switch perform a speed change after stopping the engine Speed adjustment The cordless screwdriver is not equipped with a spindle speed control system Work is carried out at a constant speed indicated in the Specifications section Torque adjustment Limit torque restriction function allows you to choose the optimal effort of tightening screws depending on their size and working conditions The choice of the optimal tightening force is carried out empirically Change of the torque limit is carried out by setting ring 2 to the position indicated by the arrow located at the top of the case positions 1 10 serve for screwing in I out screws however a higher number in the position designation corresponds to a higher torque
