Zalman CNPS2X [7/9] D backplate installation

Intel Socket 1156 / 1155 / 1150 / 775

AMD Socket FM2/FM1/AM3+/AM3/AM2+/AM2

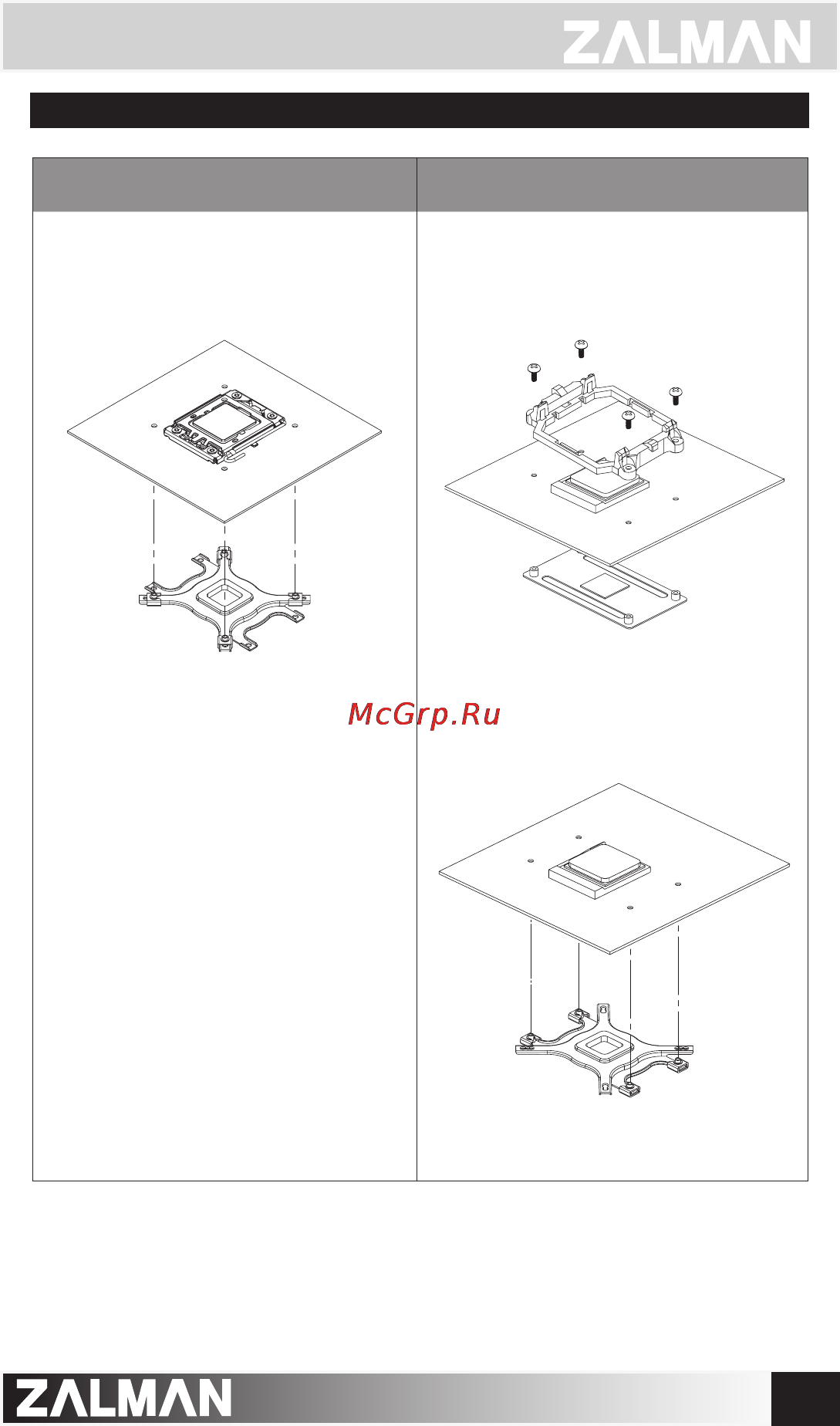

- Align the Backplate’s nuts with

motherboard’s clip support holes, attach

it to the back side of the motherboard.

① Take away the fixed Clip support from

the motherboard.

② Align the Backplate with motherboard’s

clip support holes, attach it to the back

side of the motherboard.

D. Backplate Installation
