5. Installation

Intel Socket Installation (Go to Page 8 For AMD Sockets)

1) Intel Socket 2011 Installation (CNPS9900 MAX Series Only)

Apply thermal grease just enough to thinly cover the CPU surface. Then, insert four Silver

Bolts (type A) through the outermost Intel Clip holes, and using the 3/32” Allen Wrench,

fasten the Silver Bolts incrementally while alternating between them.

Please make sure to use the

Bolts with correct color and

thread length as they can

appear quite similar.

Sliver Bolt A

(4mm)

Wrench

Caution

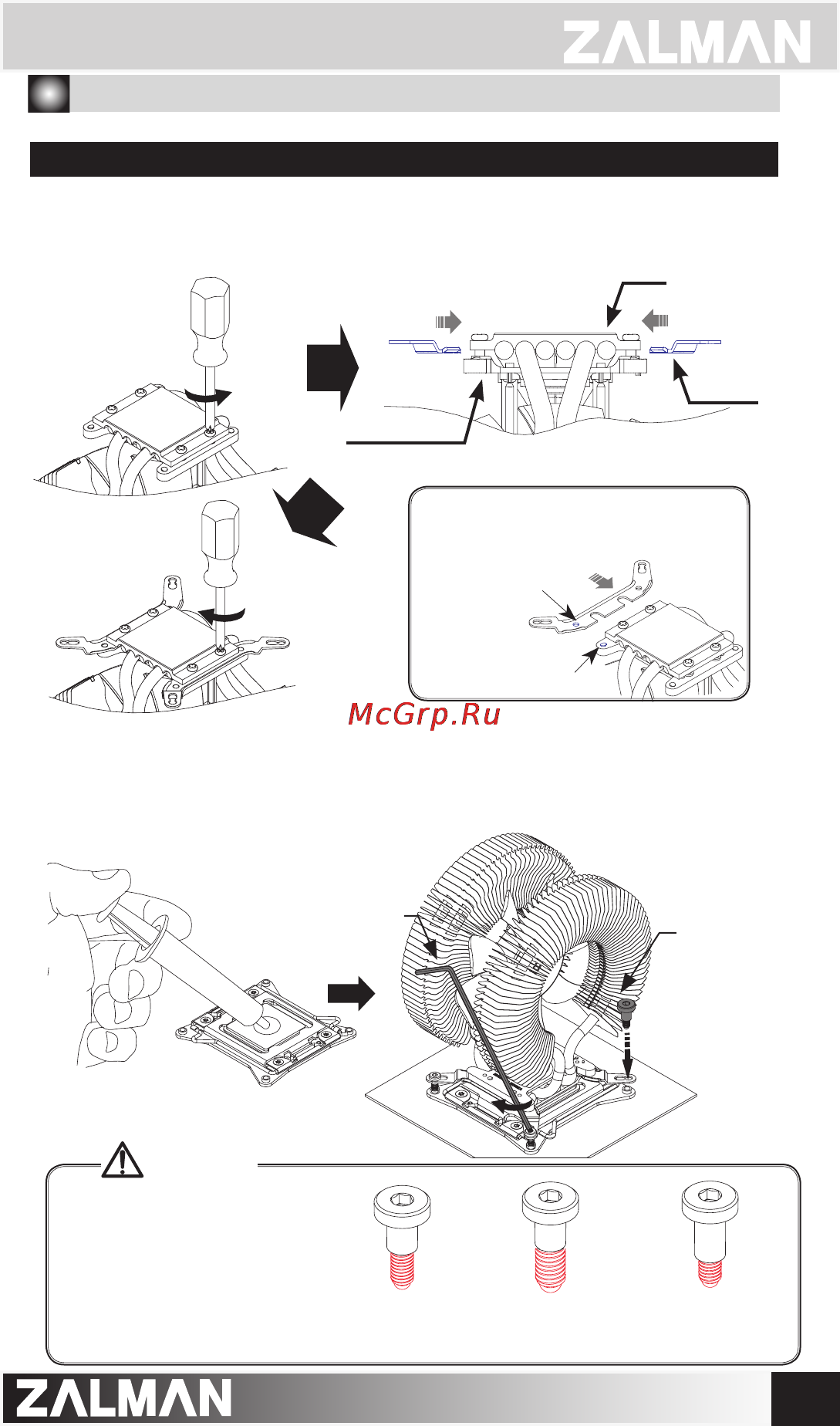

Partially unscrew the four bolts located on the base of the CPU cooler. Then,

insert the Intel Clips between the base and the heatpipe cover, with the clips

bent away from the heatsink.

Insert

Key

Intel Clip

Base

Heatpipe cover

The holes in the Clip (as shown below) are

matched to the “keys” on the heatpipe cover

for secure Clip installation.

Gold Bolts

(Socket LGA 1366)

Sliver Bolts A (4mm)

(Socket LGA 2011)

Sliver Bolts B (3mm)

(Socket AMD/LGA1156/

1155/775/)
