4. Installation Requirements

1) Space Requirements

2) Air Guide Removal

3) Cooler Orientation

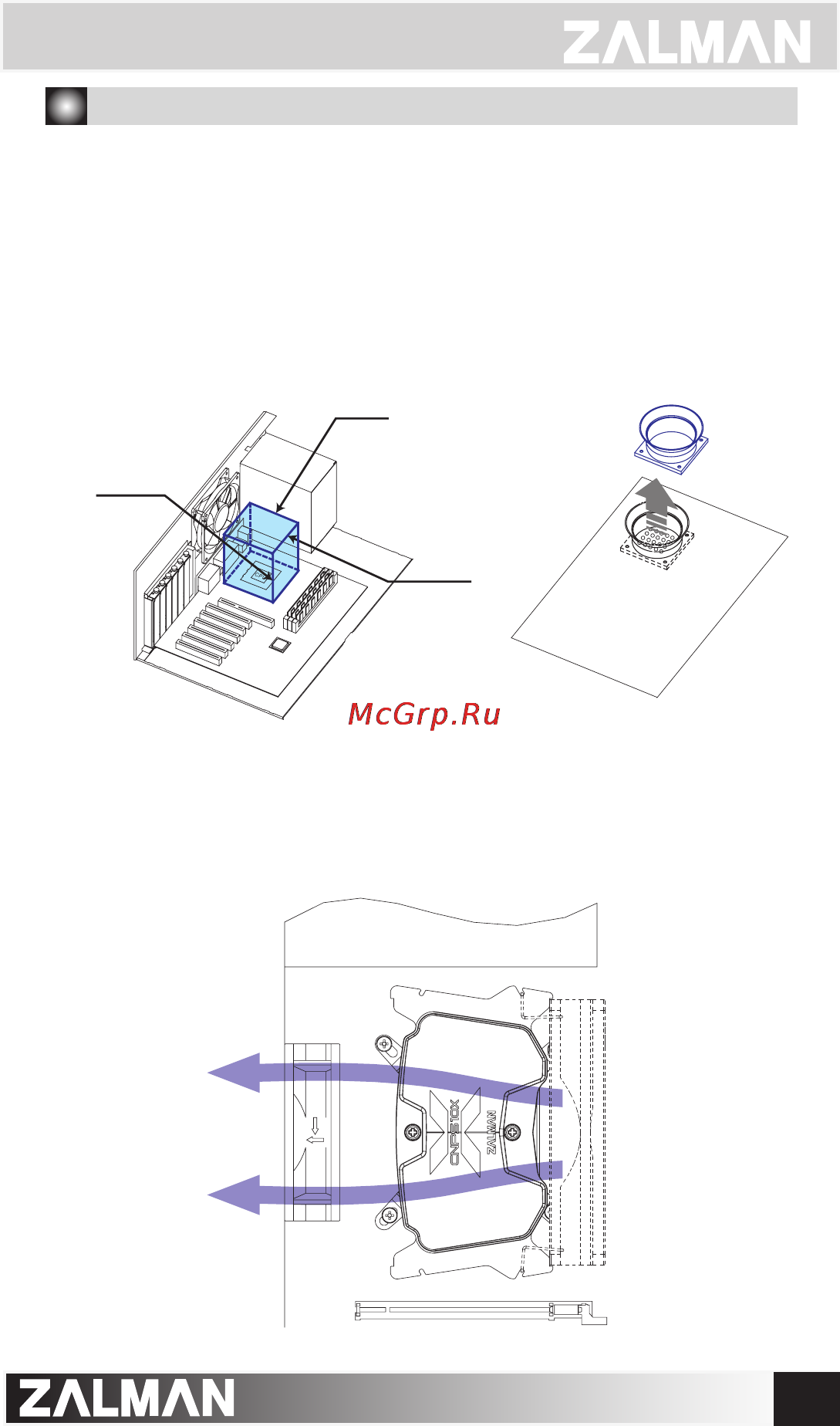

The cooler’s installation requires unobstructed space with dimensions of

140mm(width), 140mm(length), 155mm(height), and the CPU as a central

reference point. Please check if components such as ODDs and PSU protrude

into the required space.

Air guides on enclosures must be removed, before the cooler’s installation, for

they protrude into the cooler’s required space.

Zalman recommends installing the cooler so that the air channeled through the cooler

exits thought the rear of this case as shown below.

※ Recommended cooler orientation may differ according to the motherboard model.

140㎜

155㎜

140㎜
