5. Installation
1) Intel Socket 1155 / 1156 / 775 and Socket 1366 Installation

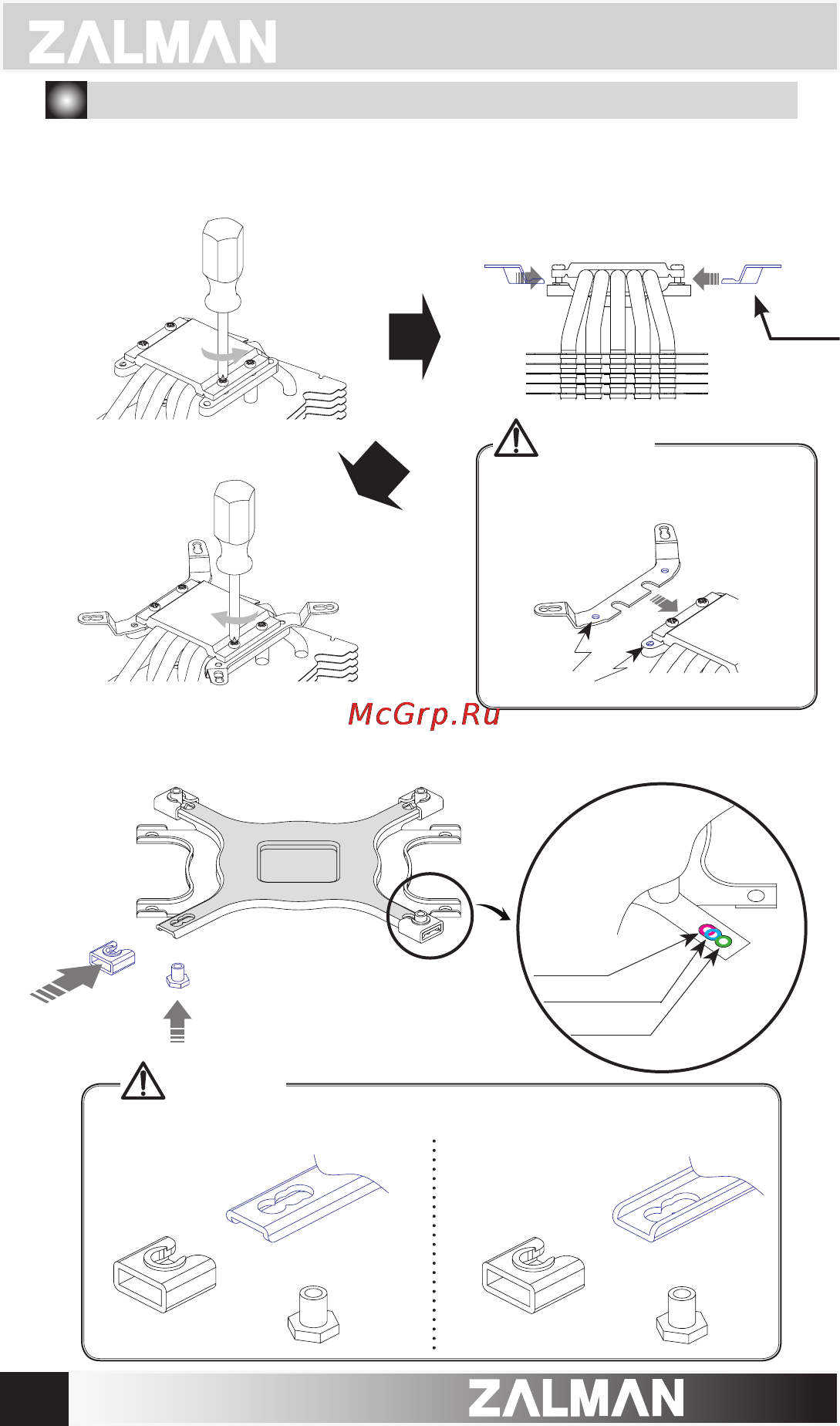

② Insert the Nuts to the Backplate according to the Socket type and fix with
the Side Caps.
Socket 775
Socket 1155/1156
Socket 1136
Please note the direction of the Nuts and Side Caps.
X
O
Caution
1
2
① Unfasten the cooler base’s Bolt’s one thread, insert the Intel Clips
between the cover and base and refasten the Bolts.
Make sure the Intel clip’s holes and
the base cover protrusion’s holes are
aligned.
Caution
Align
Intel Clip
