The specifications of product may change without any prior notice to improve performance.

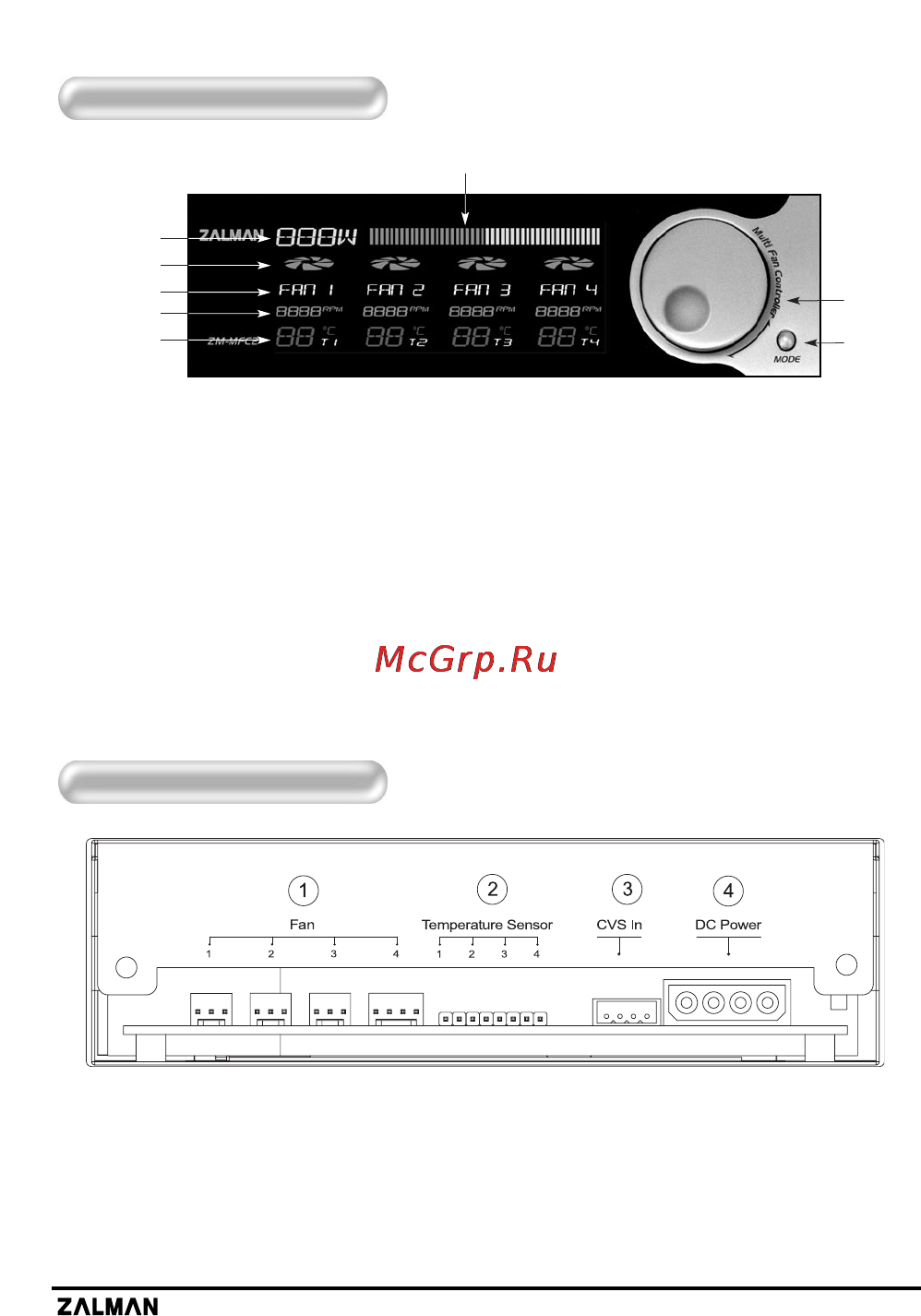

󲾩 Graphic Power Load Meter: Displays power between 30 to 800W in 4 stages.

󲾪 Numeric Power Load Display: Numerically displays power between 30 and 800W.

(The Numeric Power Load Display will read “LLL”when an overflow occurs. “LLL”indicates power

loads beyond the unit’s measurable range.)

󲾫 Fan Status Display: The Fan’s operation status is indicated with animated propeller images.

󲾬 Fan Channels

󲾭 RPM Display: During RPM Setting, RPM is displayed in units of 60RPM, and actual operational RPM is

displayed in units of 10RPM.

󲾮 Temperature Display: Displays temperature readings between -9

℃

and +99

℃

󲾯 Jog Wheel: Used for adjusting Fan RPM. RPM can be set from 1000 to 5940RPM in units of 60RPM.

󲾰 Mode Button: Used for selecting a Fan Channel and saving the Fan RPM setting.

󲾩

󲾪

󲾫

󲾬

󲾭

󲾮

󲾯

󲾰

Front Panel

󲾩 Standard Fans (Fan 1~3): 3-Pin fans that include the RPM output function can be connected for use.

PWM Fan (Fan 4): 4-Pin fan that includes the PWM function can be connected for use.

󲾪 Temperature Sensing: Four temperature sensors can be connected.

󲾫 CVS Terminal: Receives the measured values of the CVS.

󲾬 Power Connector: Connects with the PSU’s 4-Pin connector.

Back Panel
