5. Installation

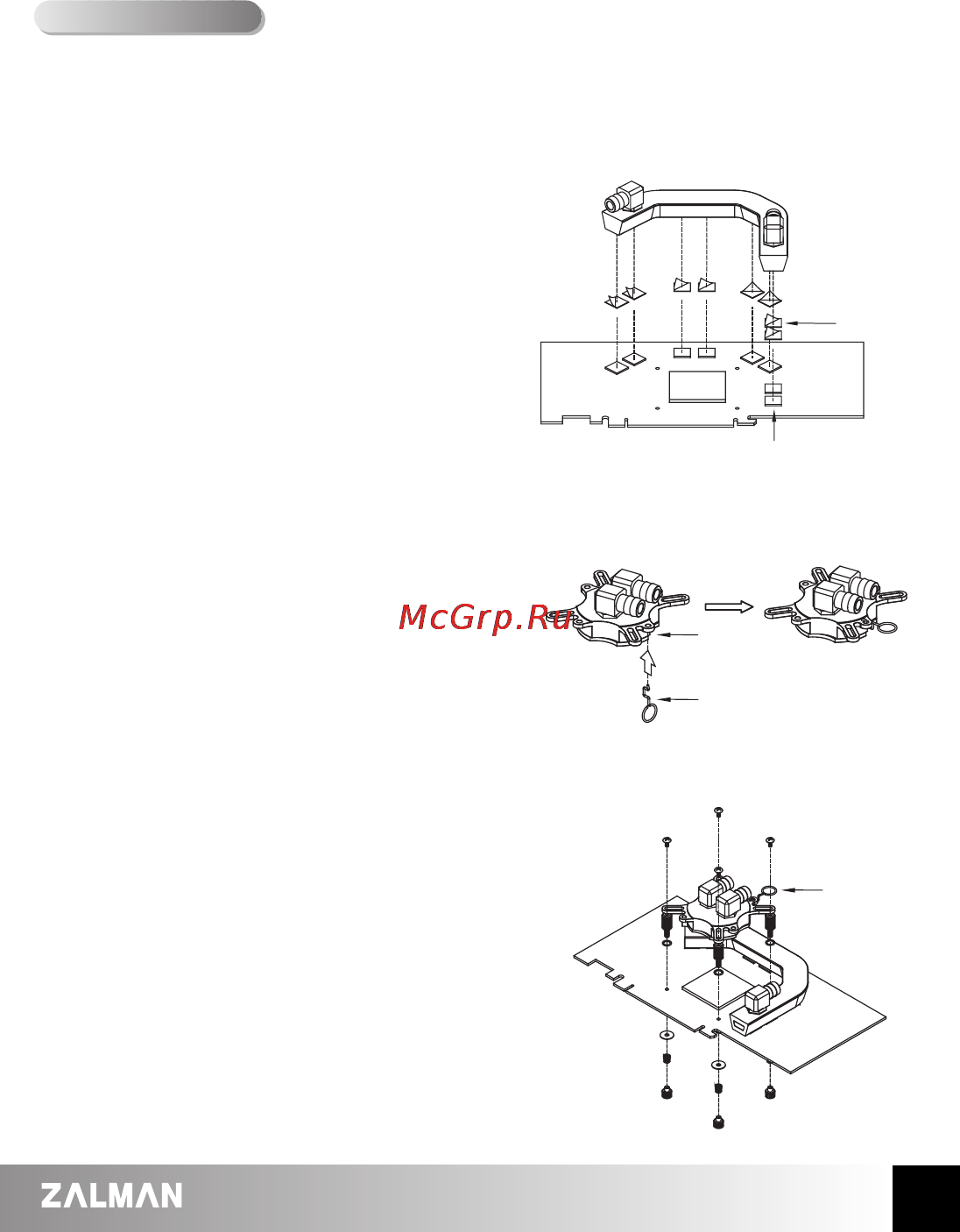

1) Install VGA RAM Water Block

Place the Thermal Tapes on top of the VGA RAM, remove the film of the Thermal Tapes, and install the ZM-RWB1

on top of these Thermal Tapes by exerting a downward force as shown in the diagram.

Note 1) If Thermal Grease or other residue remains on the

VGA RAM, then the Thermal Tapes will not stick.

Clean the VGA RAM surface with acetone or alcohol

before attaching.

Note 2) The bonding strength of the Thermal Tapes reaches

90% after 24 hours of curing. Press down once again

after two hours of initial attachment.

Note 3) Thermal Tapes are not reusable because they lose

adhesiveness after their initial attachment.

Purchase new Thermal Tapes if you need to make

reattachments.

2) Attach Clip

Attach the Clip by pushing it up into GWB3’s ATI hole as

shown in the diagram.

3) Connect with GWB3

Install GWB3 with the Clip hooked into the ATI hole as

shown in the diagram.

Note 1) Hooking the RWB1 Clip into the ATI hole positioned

on the upper region of the VGA water block will

create tension. Now hook the other side of the

RWB1 Clip on to the upper part of the RWB1 in

order to effectively install the RWB1.

Note 2) For more information on GWB3 installation, please

visit www.zalman.co.kr to view the installation video.

Thermal

Tape

VGA RAM

ATI Hole

Clip
