4) Install Tubes

Connect the tubes with the VGA water block and VGA RAM water block’s fittings, and install the Tube Clamps.

Note 1) Hold the VGA water block and VGA RAM water block with one hand to keep them from moving

when installing the tubes.

Note 2) Cutting the tubes to adequate length beforehand will simplify the process of connecting the tubes

with the VGA water block and RWB1.

5) Check Installation

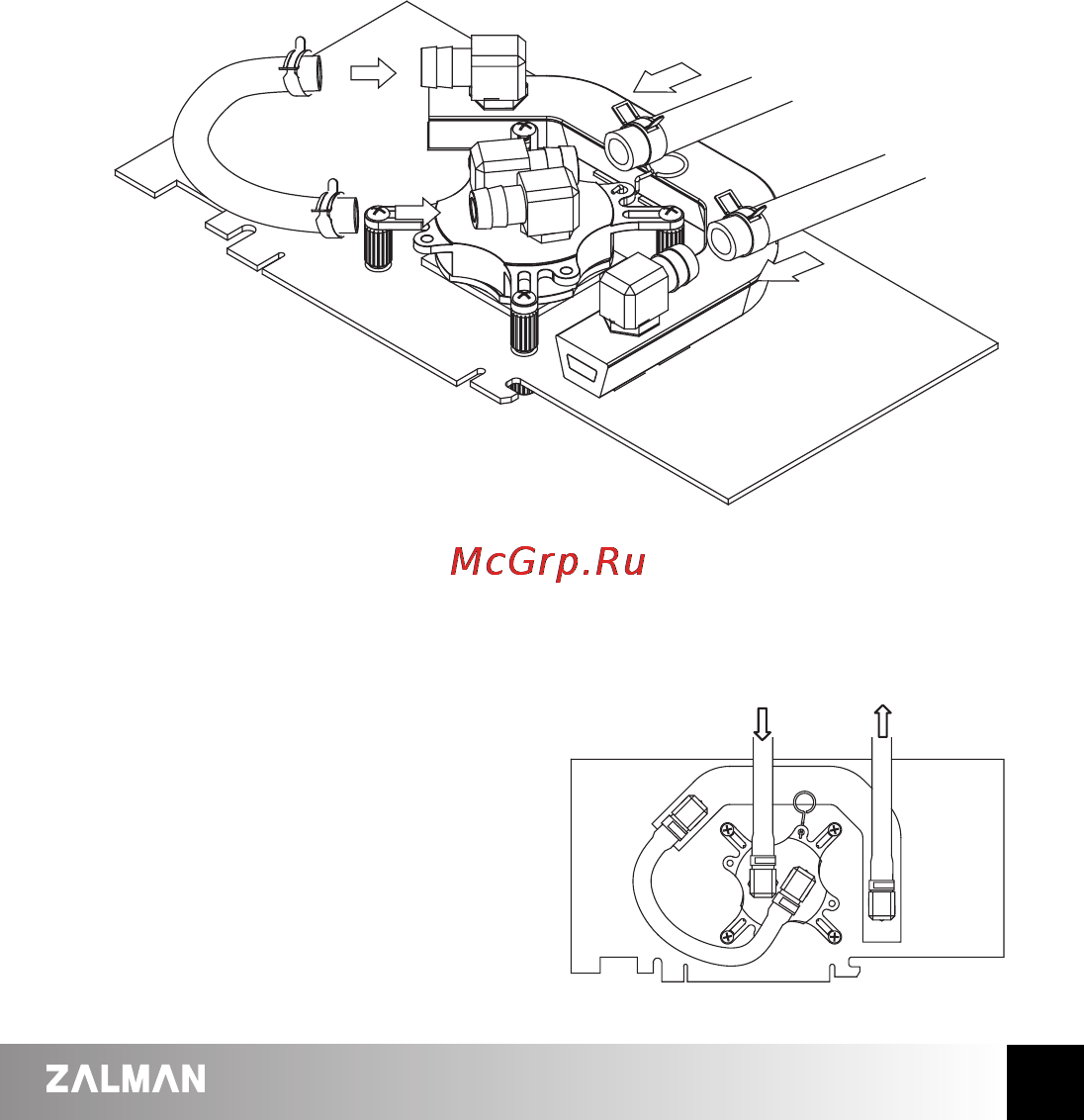

Connect the tubes to the VGA water block and VGA RAM water block’s fittings as shown in the diagram, and

install the Tube Clamps.

Note 1) Check to see if the tubes are connected

as shown in the picture on the right, and

check if the tubes are properly connected

by pulling on them.

Note 2) After confirming connection, press onto the

VGA RAM water block one more time after

two hours, check for leakage, and start the

system.

Inlet Outlet
