5. Installation

※ This installation method applies to both GTS/GTX.

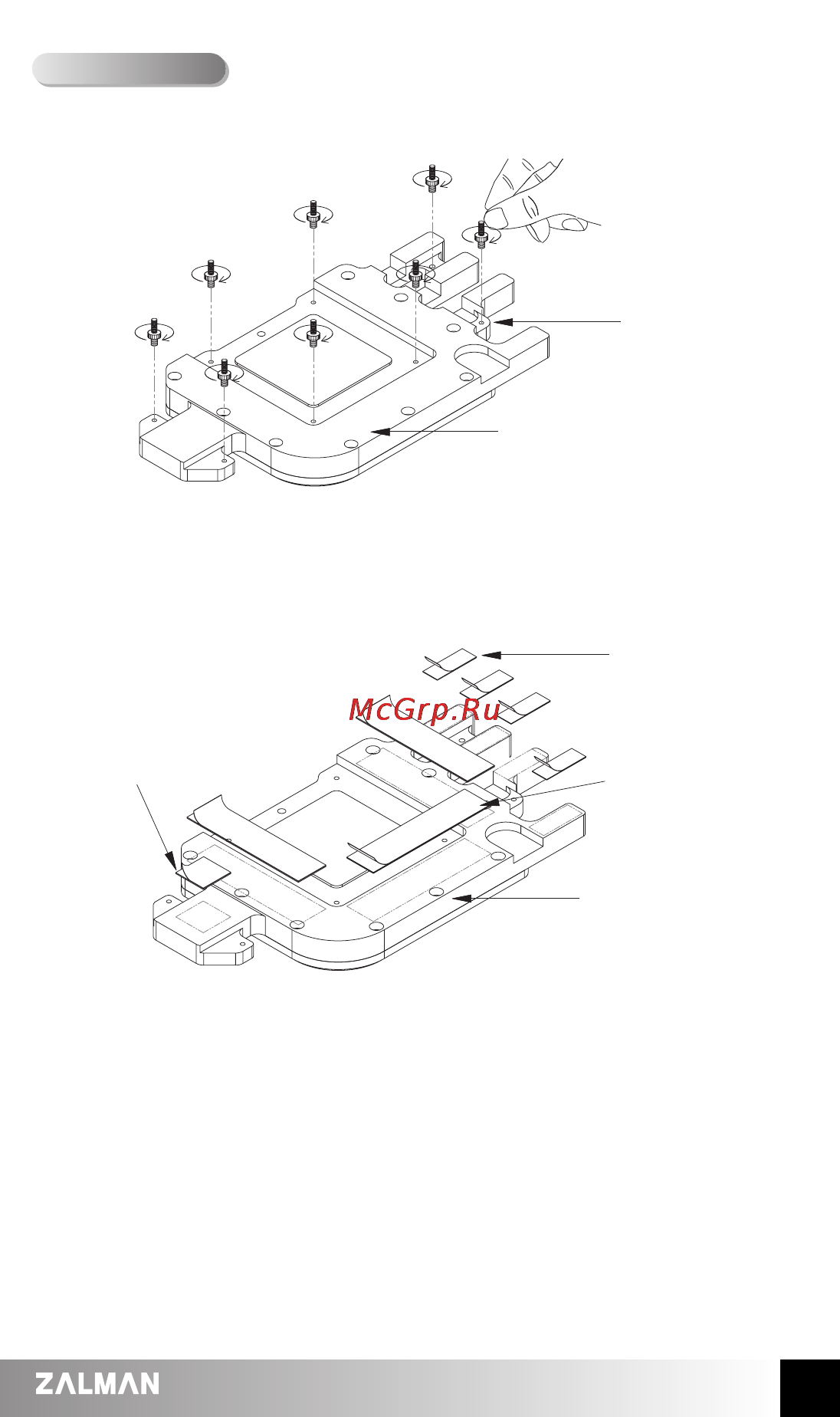

1) Nipple Installation

Install the Nipple onto the Install Tap on the base side of the Water Block.

Note 1) Use a tool such as Long Nose Pliers to firmly tighten the Nipples.

2) Thermal Pad Attachment

①

Clean the contact surface of the VGA Chipset completely.

②

As shown in the diagram, attach the Thermal Pads on the bottom side of the

Water Block base (marked with dotted lines) that will come in contact with the RAM,

FET, and I/O Chipset.

Note 1) If the Thermal Pads are crookedly attached or attached on the wrong place,

then carefully remove them and attach properly.

Note 2) Pay attention so that the Thermal Pads do not get bent or damaged when

attaching them.

Note 3) Exerting too much pressure when adhering the Thermal Pads could cause

compression, which could lead to a gap between the Thermal Pads and the

Water Block during VGA card installation. Must carefully attach them.

Note 4) Using tweezers or a knife can facilitate the detachment of the protective film

from the Thermal Pads.

Install Tap

Water Block Base

Thermal Pad

(for FET Contact)

Thermal Pad

(for RAM Contact)

Water Block Base

Thermal Pad

(for I/O Chipset Contact)
