Zalman ZM-GWB8800 GTS [8/9] Installation of tubes and tube clamps

The specifications of any product may change without prior notice to improve performance.

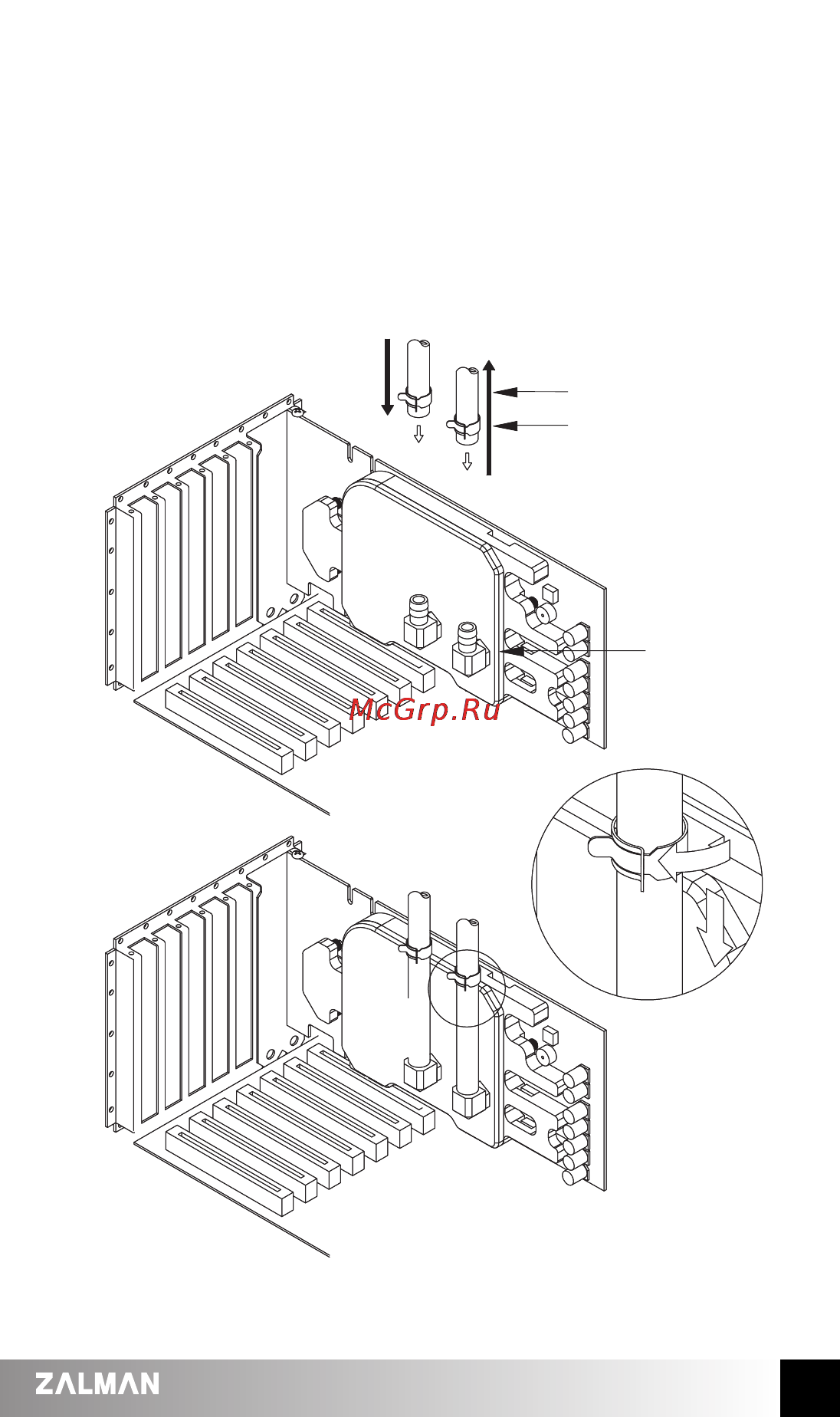

7) Installation of Tubes and Tube Clamps

Plug the tubes over the VGA Water Block’s fittings and install the Tube Clamps.

Note 1) Hold the VGA card with one hand when plugging the Tube into the Fitting.

Note 2) Use of a tool such as Long Nose Pliers when installing the Tube Clamp will

ease the installation process.

Note 3) Pull on the tube after installing the Tube Clamp to check the tension.
