Zalman ZM-GWB8800 GTS [6/9] Thermal grease application

※

The specifications of any product may change without prior notice to improve performance.

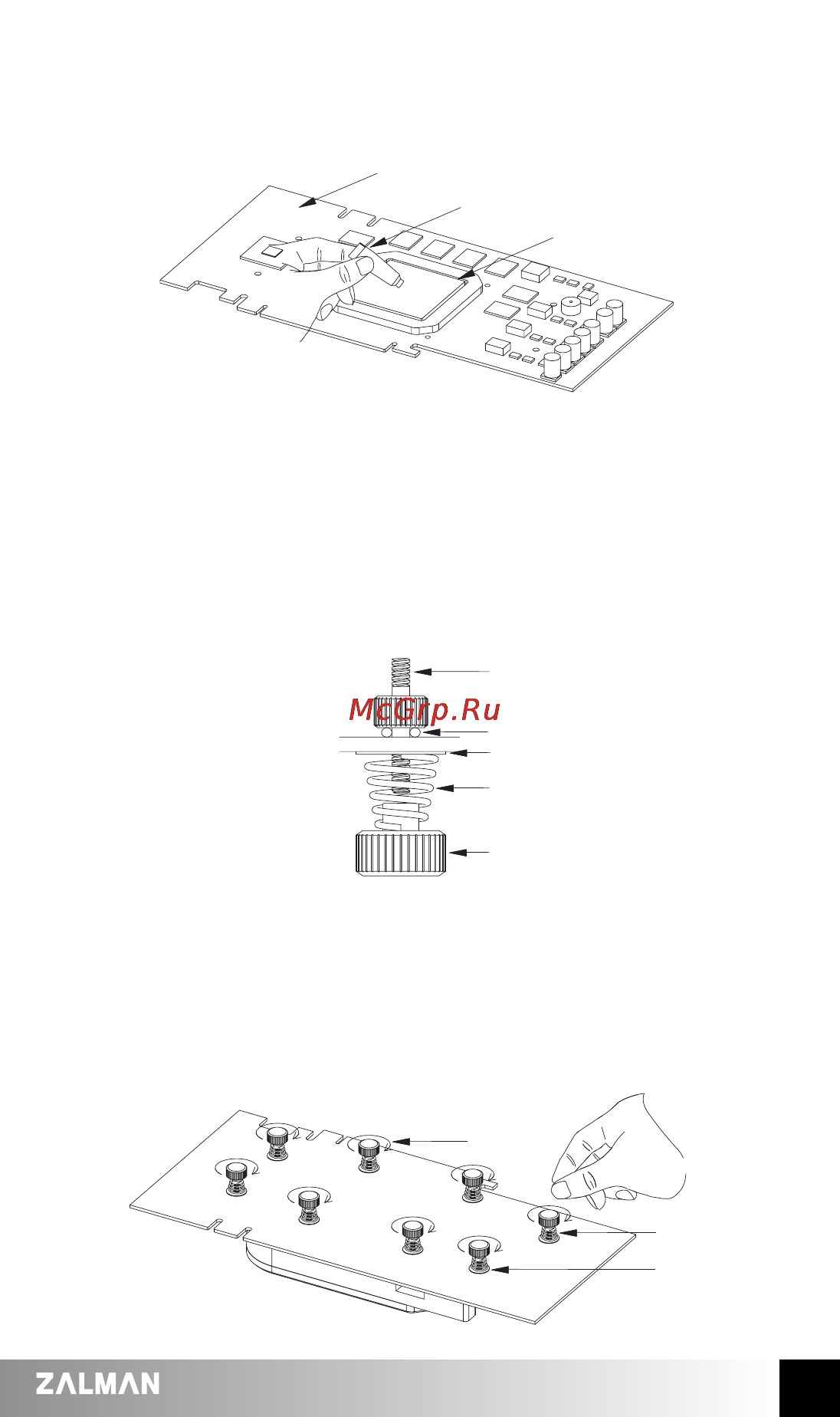

3) Thermal Grease Application

Evenly apply the Thermal Grease on the GPU surface that comes in contact with the

VGA Water Block.

4) VGA Water Block Installation

①

Insert the O-ring into the Nipple.

②

Insert the Nipples installed on the VGA Water Block into the Mounting Holes after

aligning them.

③

Install the PVC Washers, Springs, and Nuts on the back side of the VGA card in the

mentioned order.

Note 1) Check to see if the Water Block’s base side is in proper contact with the VGA

chipset before finishing the installation.

Note 2) Assembling the Springs with the Nuts prior to installation will ease the installation

process.

VGA Card

Thermal Grease

GPU

Nipple

O-Ring

PVC Washer

Spring

Nut

Spring

PVC Washer
