3) AMD Duron/Athlon/Athlon XP/Sempron - 462

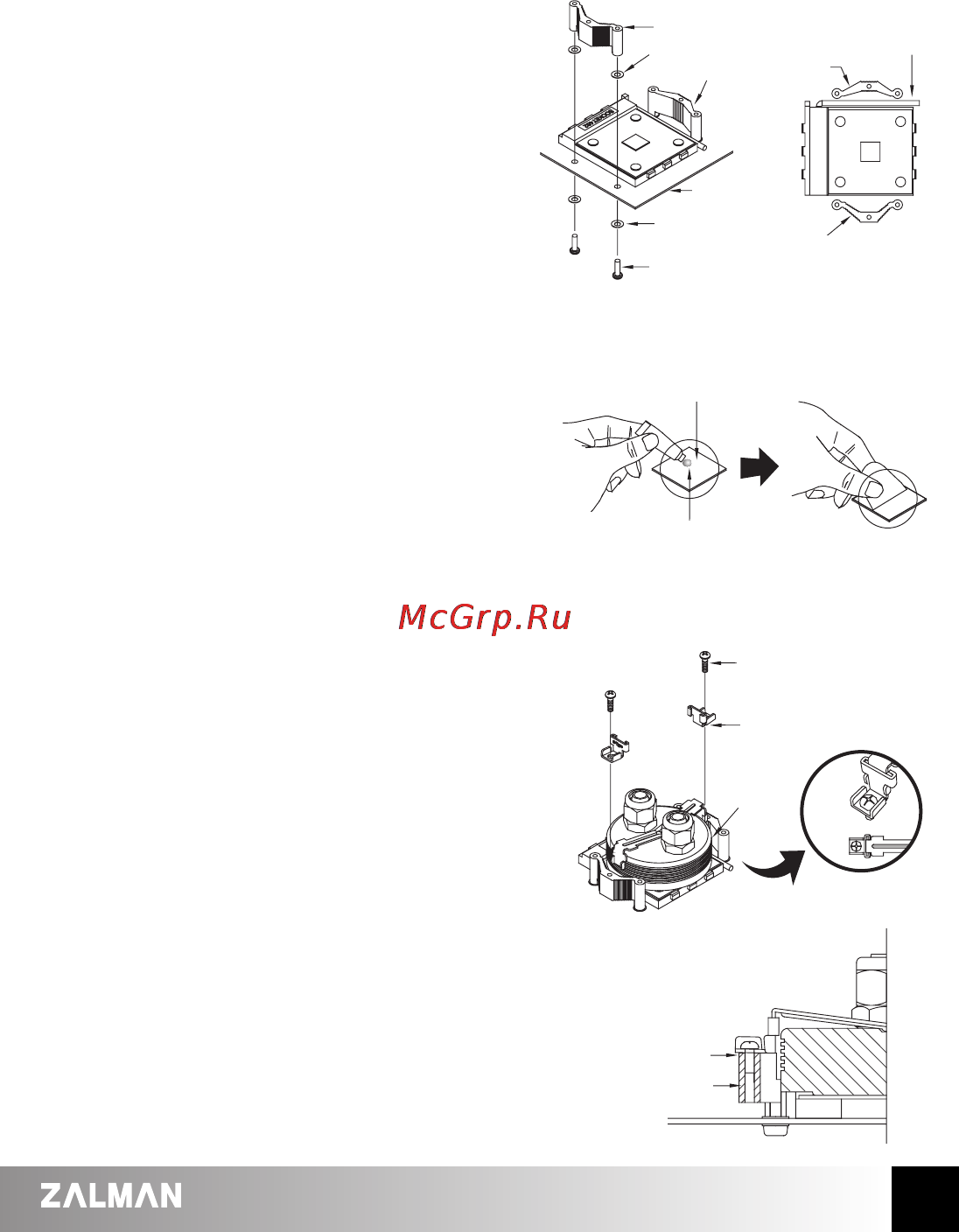

① Installing the Clip Supports for Socket 462

Install the Clip Supports for Socket 462 on the motherboard,

while making sure that their locations are not swapped.

※

The A-type Clip Support must be installed next to the lever.

Install in the order of : Bolts > Small Washers > Motherboard

Small Washers > Clip Supports.

② Applying Thermal Grease

Clean off particles and residue then spread a thin

layer of Thermal Grease evenly on the CPU core

(Only on the core’s surface that actually makes

contact with the Block Base).

③ Installing the Grips and Bolts

Interlock the S-type Grips with the Clip.

Insert the two Bolts into the holes of the Grips.

④ Installing the CPU Water Block

Set the CPU Water Block at the center of the CPU.

Screw the Bolts in slightly, then tighten each Bolt a

few turns at a time while alternating between the

two until the Grips are completely pressed against

the Clip Supports.

Clip Support B for Socket 462

Small Washer

Clip Support

A for Socket 462

Motherboard

Bolt

Clip Support B for Socket 462

Small Washer

CPU

Thermal Grease

Bolt

Grip (S-Type)

CPU Water Block

Clip Support for

Socket 462

Grip (S-Type)
