4) AMD Sempron/AMD64 - 754/939/940

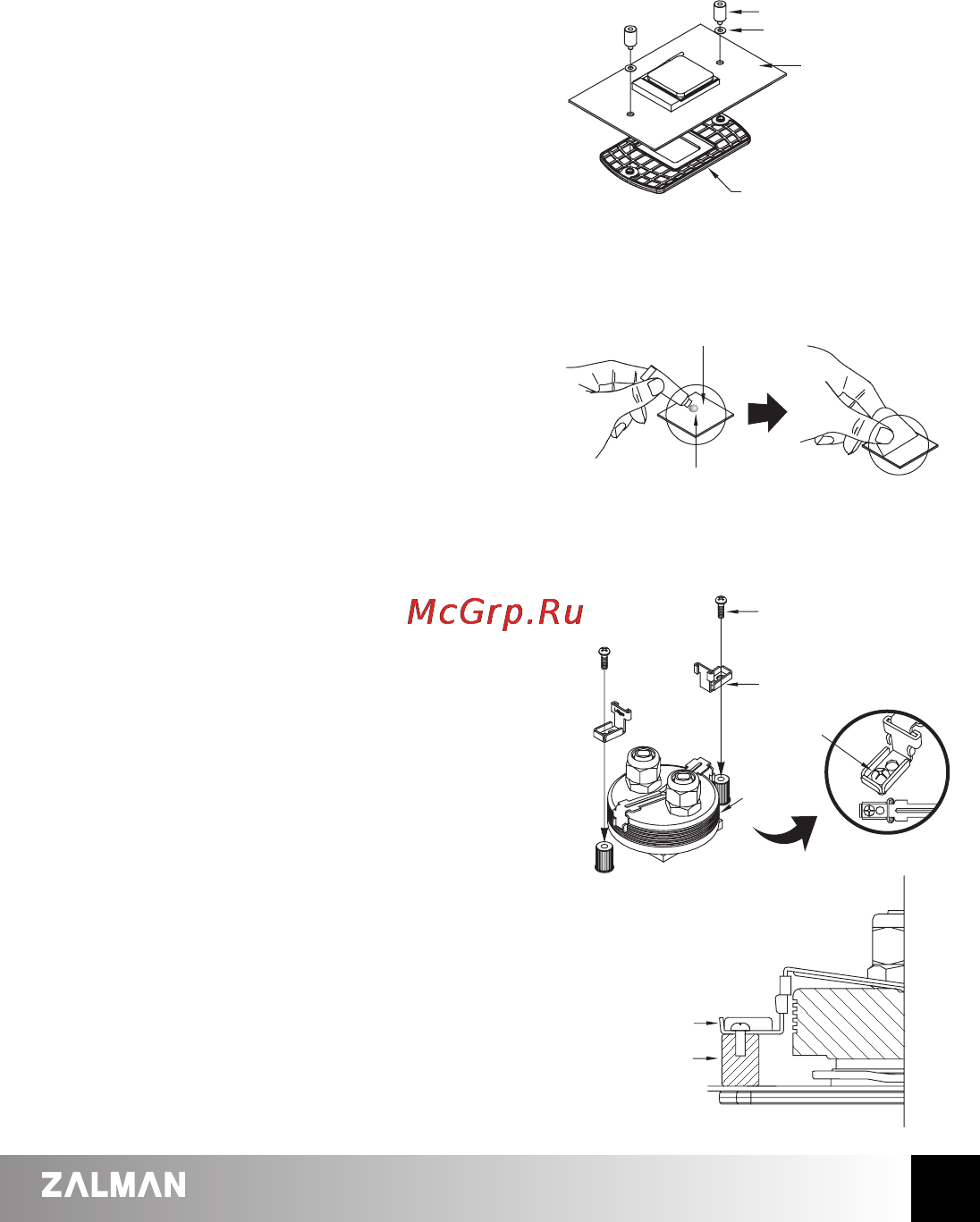

① Installing the Nipples

Place a Small Washer on the motherboard. Then, put a

Nipple over it and fasten the Nipple until the Backplate

for AMD64 is firmly attached to the motherboard on the

opposite side of the CPU.

※ The

Retention Guide is not necessary for installing the

ZM-WB3 Gold on a Socket 754/939/940.

② Applying Thermal Grease

Clean off particles and residue then spread a

generous amount of Thermal Grease thoroughly on

top of the CPU.

③ Installing the Grips and Bolts

Interlock the L-type Grips with the Clip.

Insert the two Bolts into the outer holes of the Grips.

④ Installing the CPU Water Block

Set the CPU Water Block at the center of the CPU.

Screw the Bolts in slightly, then tighten each Bolt a few

turns at a time while alternating between the two until

the Grips are completely pressed against the Nipples.

CPU (Lid)

Thermal Grease

Bolt

Grip (L-Type)

Outer Hole

CPU Water Block

Nipple

Small Washer

Motherboard

Backplate for AMD64

Grip (L-Type)

Nipple
