Zalman ZM-WB4 Plus [5/8] Exploded view

※

The specifications of any product may change without prior notice to improve performance.

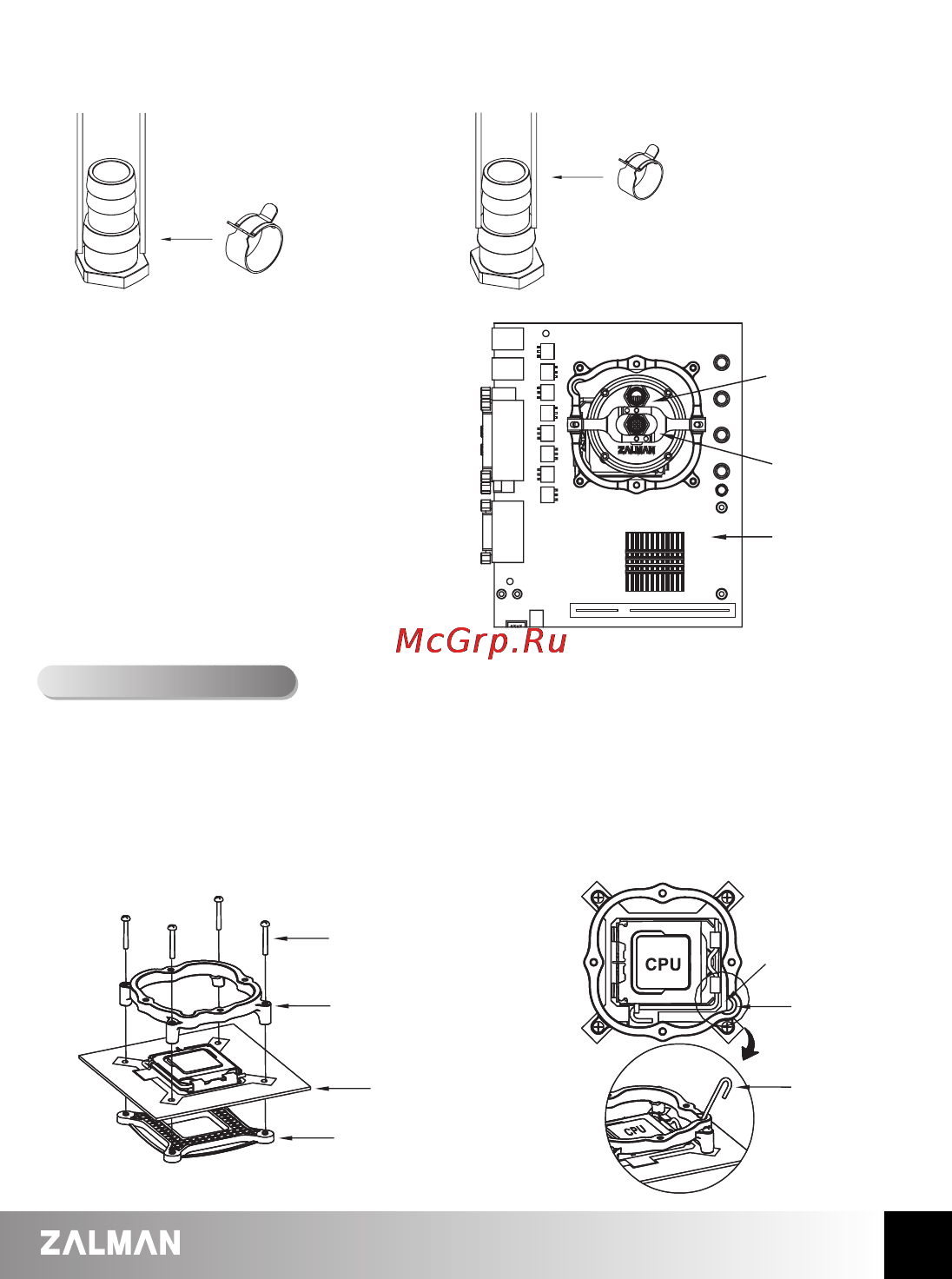

Clip Support Fixing Bolt

Clip Support for Socket 775

Motherboard

Backplate for Socket 775

Socket Lever

Lever Slot

Socket Lever

※※IInnssttaallllaattiioonn ffoorr DDiiffffeerreennccee TTuubbee SSiizzee

Tube Clamp A

(13.8 X 9.5mm) :

14x10mm, 13x10mm

Tube Clamp B (11.5 X 8mm) :

13x9mm, 12x9mm, 12x8mm, 11x8mm,

10x8mm

Note 1) Make sure that the outlet is installed

in a manner so that the outlet is placed

above the inlet as shown in the picture.

Outlet

Inlt

Motherboard

4. Exploded View

1) Intel - Socket 775

①①

Install Clip Supports for Socket 775

Align the clip support for socket 775 and the back plate for socket 775 with the mounting holes on the

motherboard and fasten them together using the fixing bolts for clip support. The lever slot on the clip

support should be properly oriented on the hinged side of the socket lever when installing.
