Zalman ZM-WB4 Plus [6/8] Intel socket 478 only in zm wb4 plus

※

The specifications of any product may change without prior notice to improve performance.

Retention Guide

Clip Support for Socket 478

Clip

Clip Bolt

Clip

Clip Bolt

②②

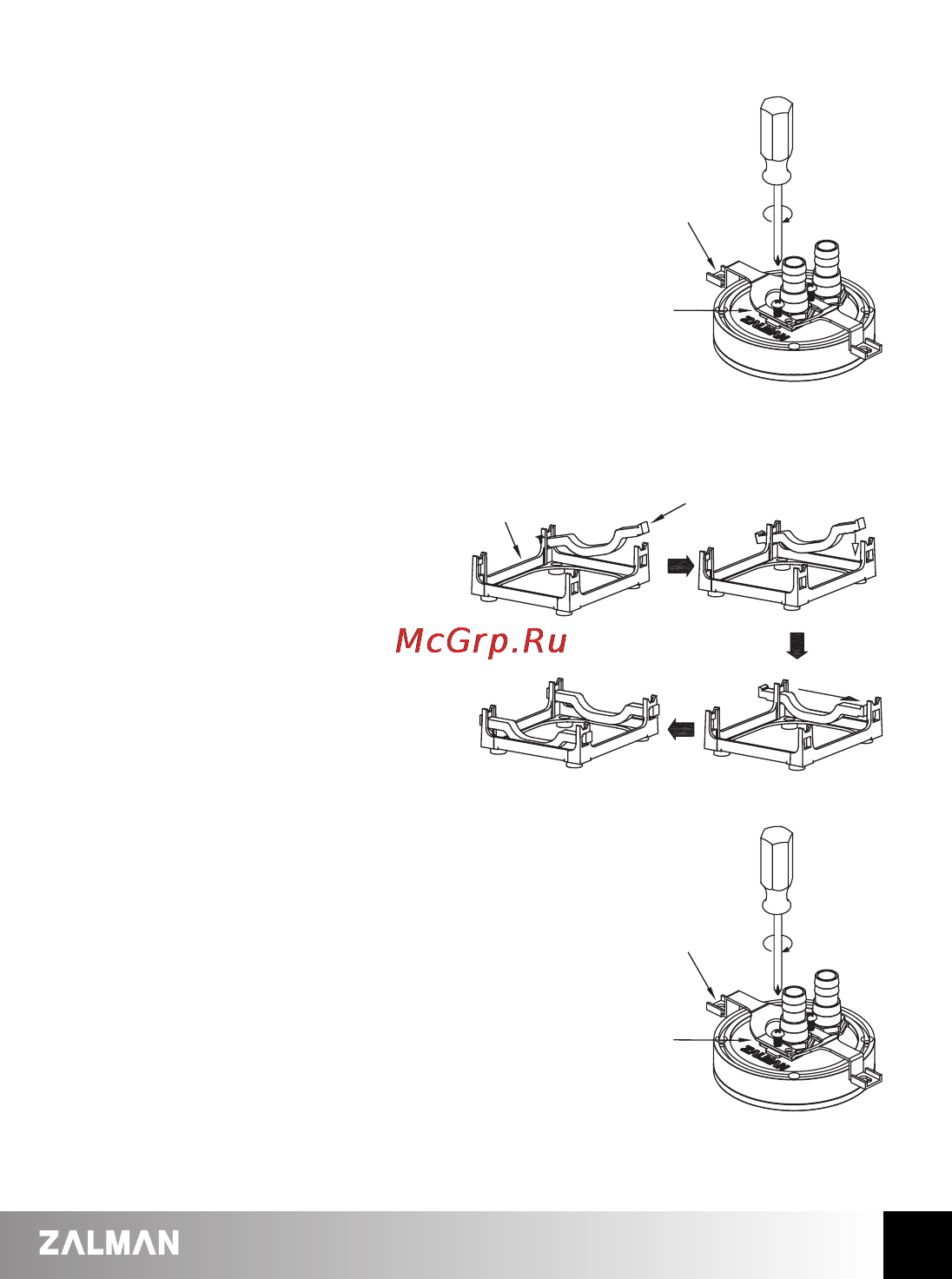

Install Clip

Align the Clips’ holes with the Water block tabs as

shown in the diagram, and install the Clips by slowly

screwing the Clip Bolts into the Clip holes. Hold the

Clips with one hand, and install with small hand

motions for easy installation.

②②

Install Clip

Align the Clips’ holes with the Water block tabs as

shown in the diagram, and install the Clips by slowly

screwing the Clip Bolts into the Clip holes. Hold the

Clips with one hand, and install with small hand

motions for easy installation.

③③

Apply Thermal Grease

Clean the contact surface of the CPU completely.

Apply Thermal Grease on the CPU surface that makes contact with the base of the Water Block.

2) Intel - Socket 478 (Only in ZM-WB4 Plus)

①①

Install the Clip Supports for Socket

478 Install the Clip Supports for Socket 478 on both

sides of the Retention Guide as shown in the diagram

on the right.
