3) AMD Socket (AM2/754/939/940)

②②

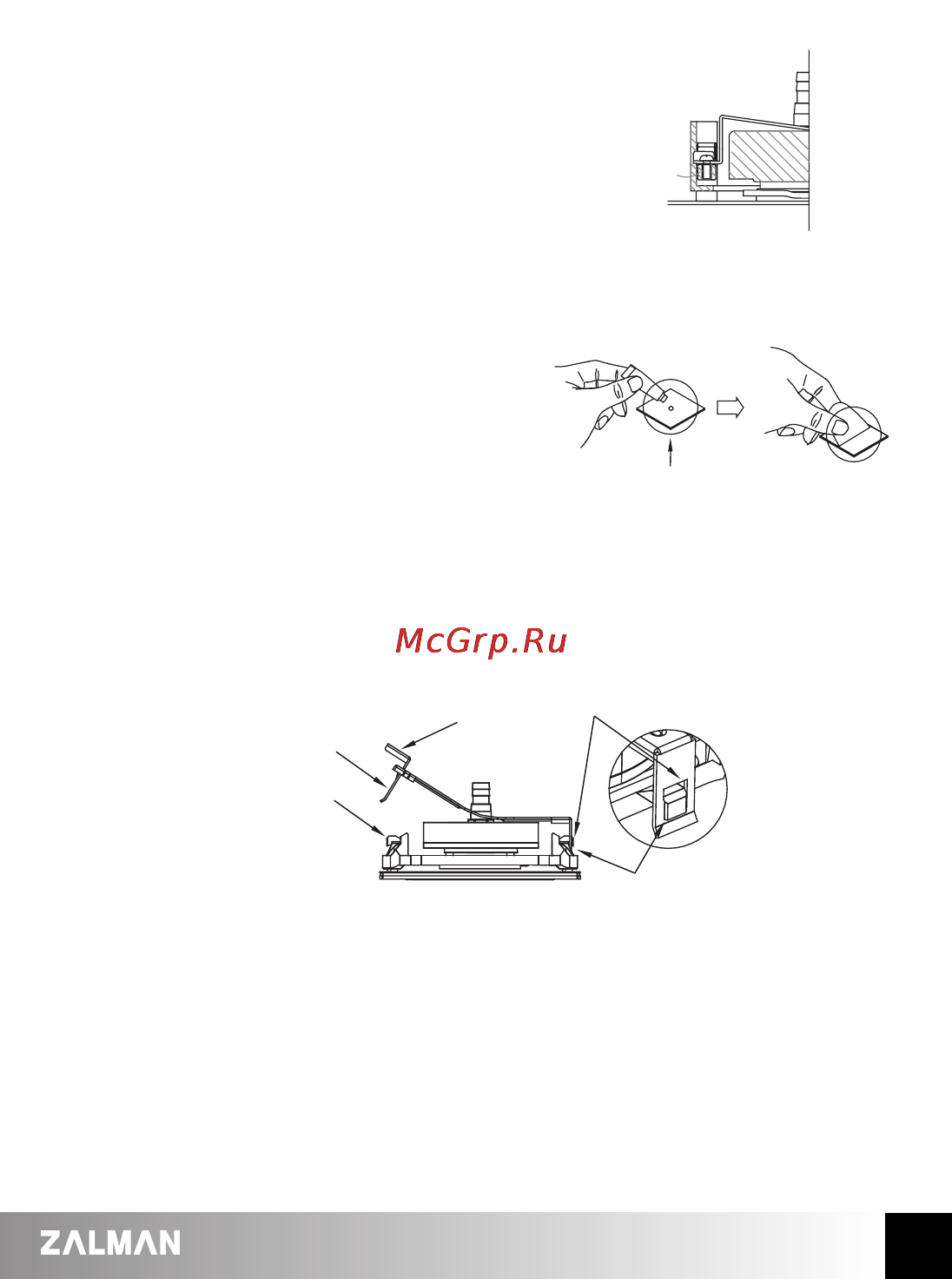

Install CPU Water Block

Set the CPU Water Block at the center of the CPU. Hook the support, then hook the Clip’s slot into the

center lug of Clip lever’s slot into the other center lug.

①①

Apply Thermal Grease

Clean the contact surface of the CPU completely.

Apply Thermal Grease on the CPU surface that

makes contact with the base of the Water Block.

Center Lug

Lever’s Slot

Thermal Grease

Lever

④④

Install CPU Water Block

Set the CPU Water Block at the center of the CPU.

Screw the Bolts in slightly, then tighten each Bolt

a few turns at a time while alternating between the

two until the Clips are completely pressed against

the Clip Support.

Clip’s Slot

Center Lug
