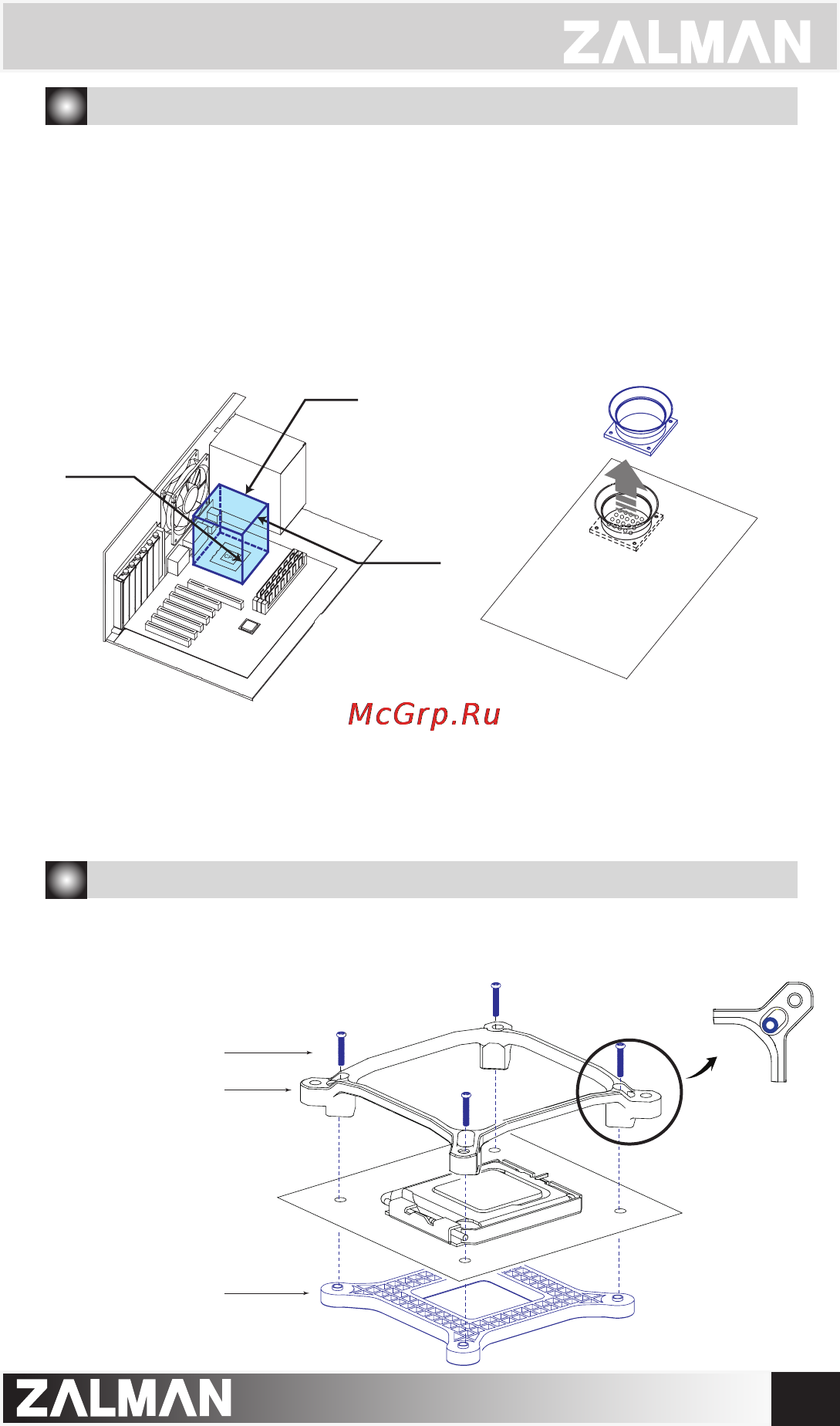

4.InstallationRequirements

1)SpaceRequirements

2) Air Guide Removal

Thecooler’sinstallationrequiresunobstructedspacewithdimensionsof

140mm(width),140mm(length), 165mm(height), and the CPU as a central

reference point. Please check if components such as ODDs and PSU protrude

intotherequiredspace.

Air guides on enclosures must be removed, before the cooler’s installation, for

theyprotrudeintothecooler’srequiredspace.

140

㎜

165

㎜

140

㎜

5. Installation

1) Intel Socket 1155/1156/775 and Socket 1366 Installation

①

- A Socket 775 Clip Support Installation

Bolt (Silver)

Socket 1155/1156/775

Clip Support

Socket 775 Backplate

M/B

3) (For heatsink-installed RAM users) Check for physical

interference between the RAM and CPU

For users of Intel and AMD motherboards, please check the RAM’s height before

installation. If the RAM’s height exceeds 36mm (1.42”), interference between CPU

cooler and RAM may prevent the use of Dual/Full-Channel Mode.
