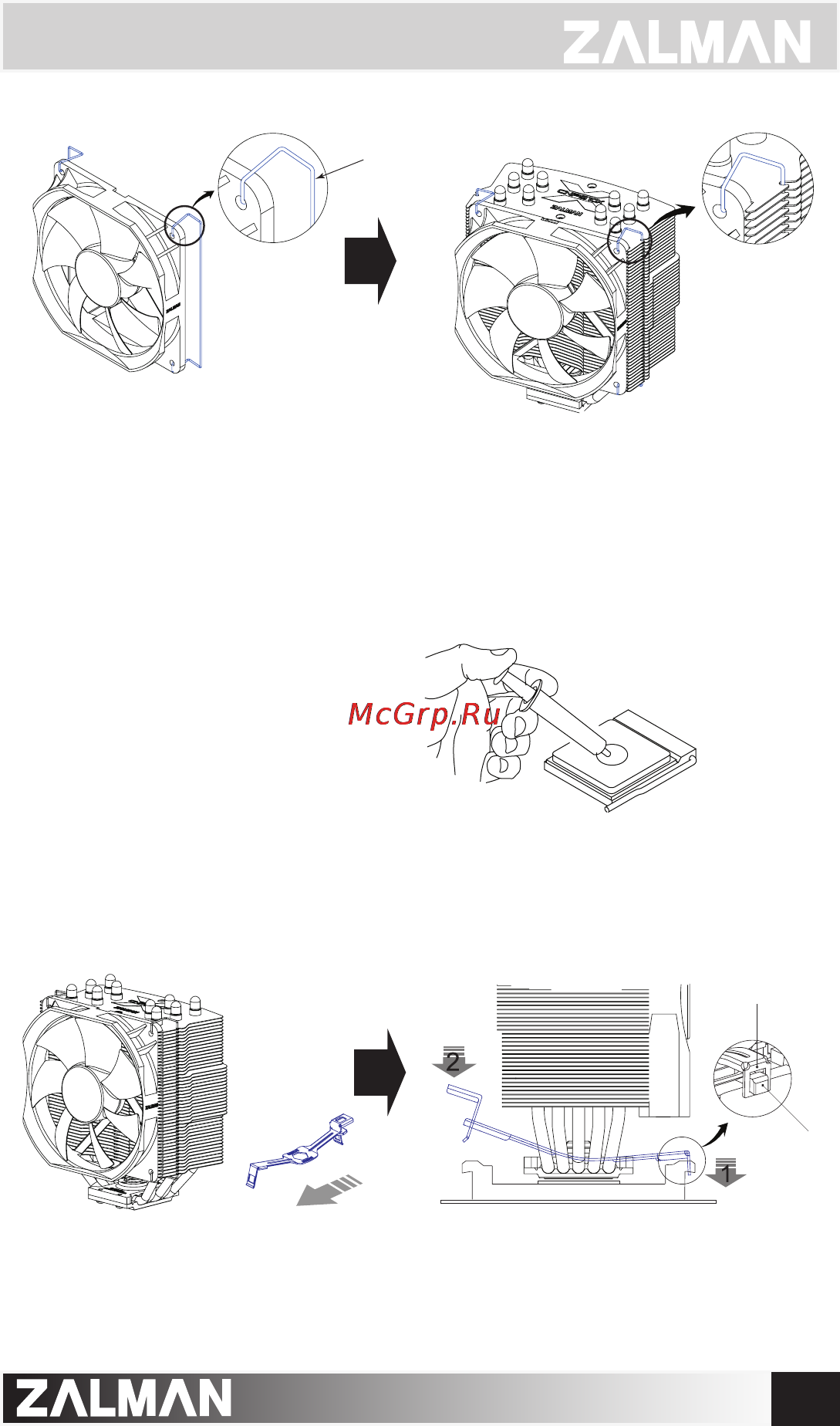

2) AMD Socket AM3/AM2+/AM2/754/939/940 Installation
②
Place the cooler on the center of the CPU. Align and connect the Clip’s Lug
Slot with the Lug of the motherboard’s retention frame. Press onto the Clip
Lever when aligning the Lever’s Lug Slot with the Lug.
Lug Slot
Lug
①
Clear off any particles or
residue from the CPU’s
surface then spread
(outwards from center) a
thorough layer of Thermal
Grease on the CPU and the
base of the cooler.
⑤
Use the Fixing Clip to fasten the Fan to the Heatsink.
⑥
Power Connection
③
Power Connection
Fixing Clip
