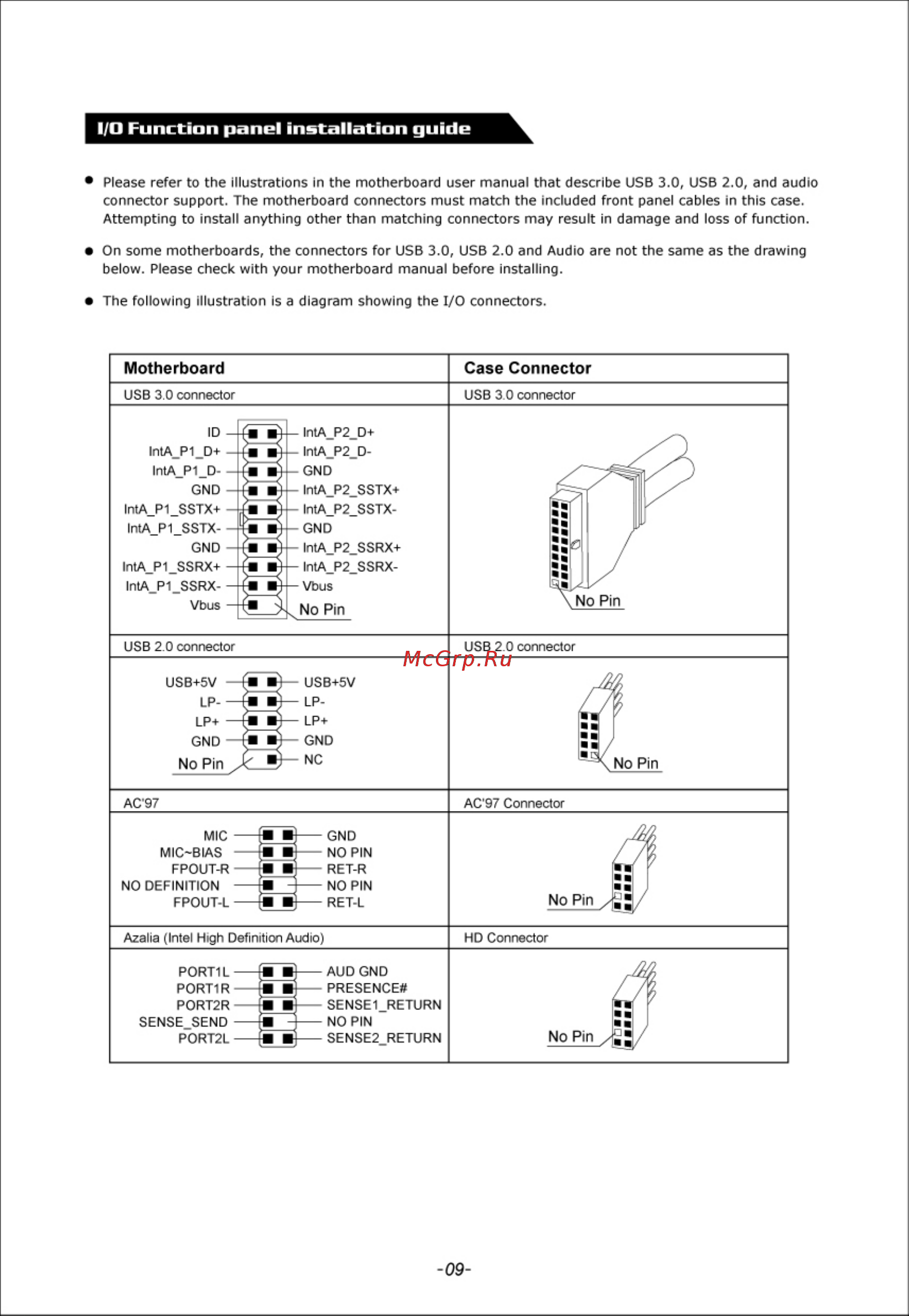

I O Function panel installation guide Please refer to the illustrations in the motherboard user manual that describe USB 3 0 USB 2 0 and audio connector support The motherboard connectors must match the included front panel cables in this case Attempting to install anything other than matching connectors may result in damage and loss of function On some motherboards the connectors for USB 3 0 USB 2 0 and Audio are not the same as the drawing below Please check with your motherboard manual before installing The following illustration is a diagram showing the I O connectors Motherboard Case Connector USB 3 0 connector USB 3 0 connector ID lntA_P1_D lntA_P1_D GND lntA_P1_SSTX lntA_P1_SSTX GND lntA_P1_SSRX lntA_P1_SSRX Vbus lntA_P2_D lntA_P2_D GND lntA_P2_SSTX lntA_P2_SSTX GND lntA_P2_SSRX lntA_P2_SSRX Vbus s 0 Pin No Pin USB 2 0 connector USB 5V LP LP GND No Pin x USB 2 0 connector USB 5V LP LP GND 1 NC No Pin AC 97 AC 97 Connector GND MIC NO PIN MIC BIAS FPOUT R RET R NO DEFINITION NO PIN FPOUT L RET L J Ji No Pin xfa Azalia Intel High Definition Audio PORT1L PORT1R PORT2R SENSE_SEND PORT2L HD Connector AUD GND PRESENCE SENSE1_RETURN NO PIN SENSE2_RETURN 09 No Pin
