Buffalo TS3400D0804 [11/181] Ts3200d

TS3200D

±°

±±

±²

±¹

±³

±´

±¶

±·

²°

²±

±¸

²´ ²µ

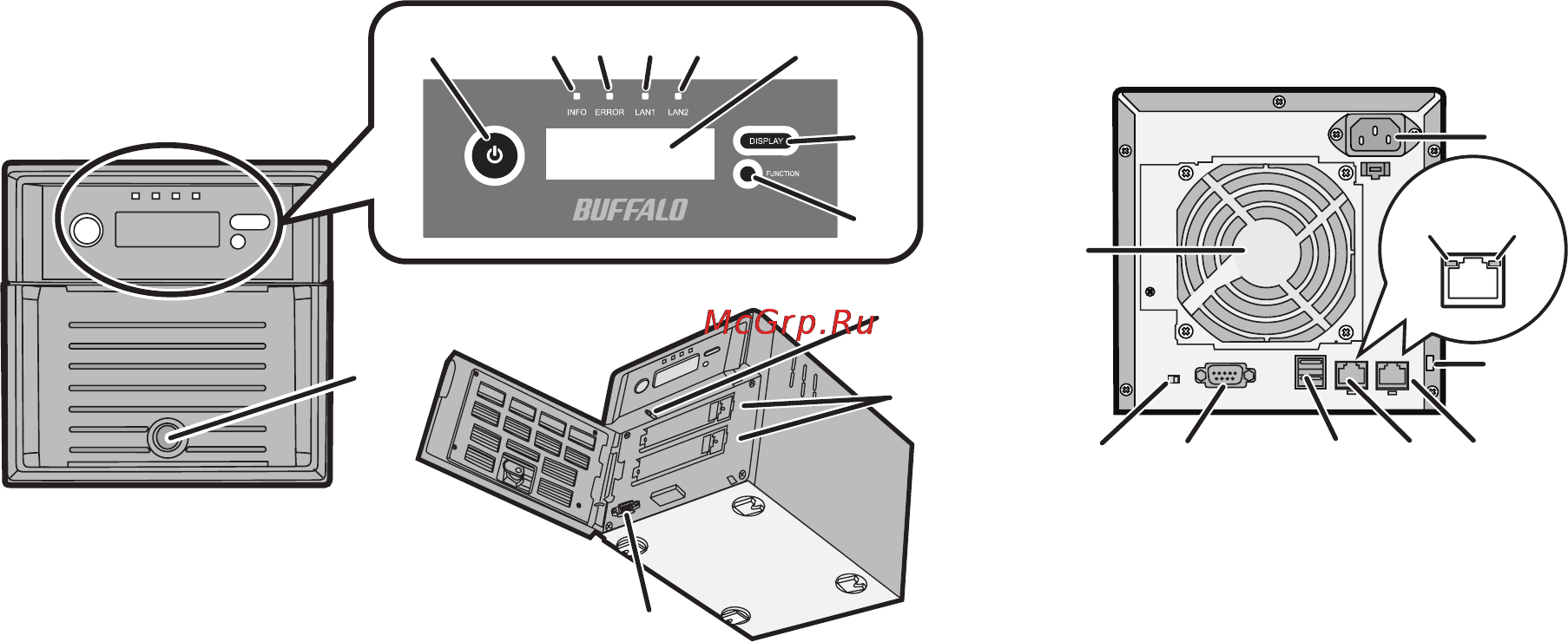

1 Power Button

To power on, connect the power cable and wait for 10 seconds, then hold down the power button for 1 second. To

power off, hold down the power button for 3 seconds (until it beeps).

2 Info LED

If there is a status message, the amber info LED will light up. Check the LCD panel to see the status message.

3 Error LED

If there is an error, the red error LED will light up. Check the LCD panel to see the error message.

4 LAN1 LED

When LAN port 1 is connected, this LED glows green. It blinks when the connection is active.

5 LAN2 LED

When LAN port 2 is connected, this LED glows green. It blinks when the connection is active.

6 LCD Panel

This display shows the status of many TeraStation settings. It also displays errors and messages when available.

7 Display Button

Switches between the different display modes. Also, if the TeraStation is beeping, press this button to stop it.

8 Function Button

Use this button for Direct Copy, dismounting USB devices, rebuilding RAID arrays, and configuring failover.

9 Drive Lock

Open the front panel with the key to replace hard drives or access the reset button.

10 Init Button

Hold down this button to initialize the TeraStation's admin username and password, IP address, SSL, and service

port restriction settings to their factory default values. The behavior of this button can be modified in Settings.

11 Status LEDs
