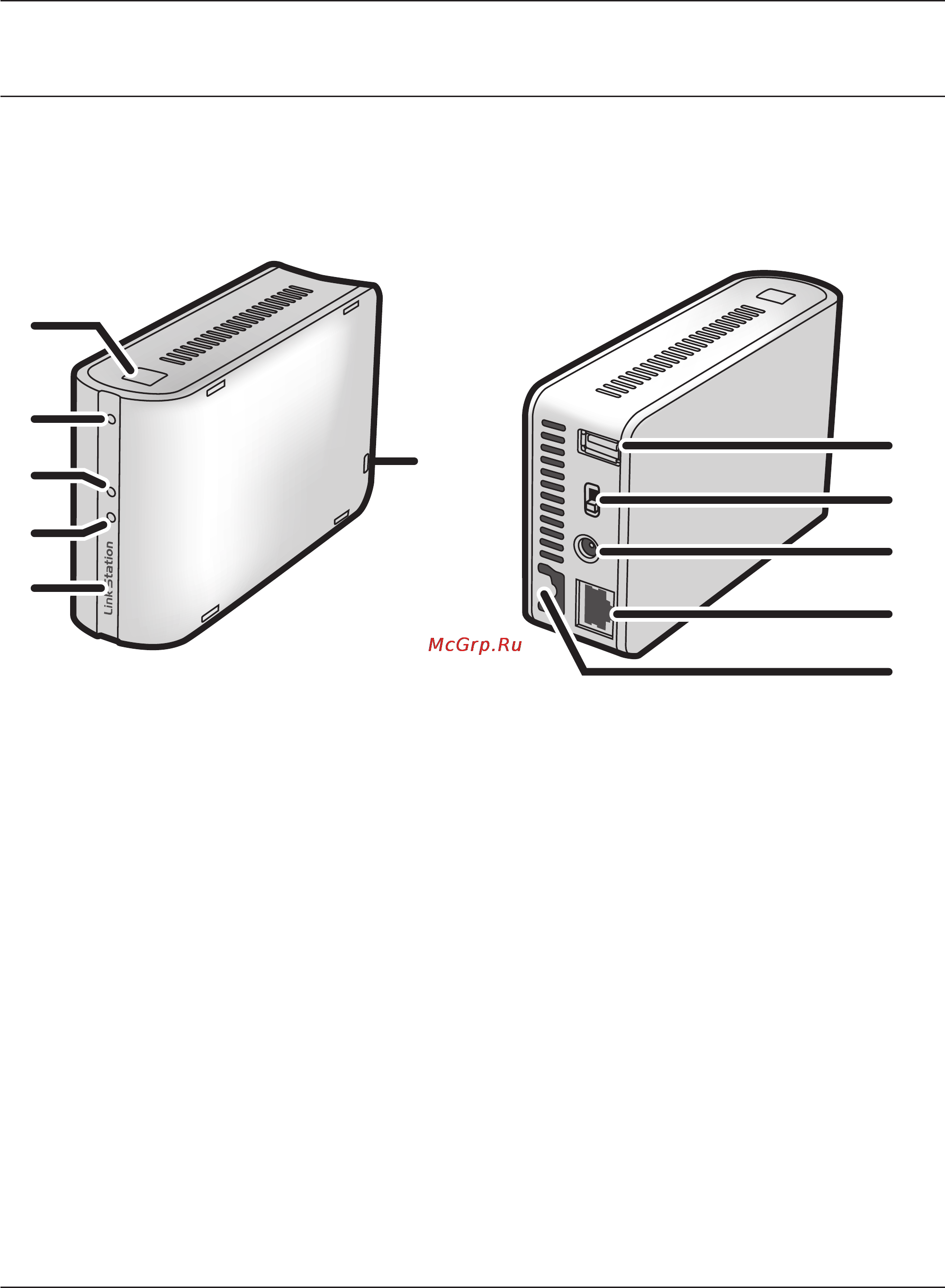

Diagrams and Layout (LS-WSXL)

Front

1 Function Button

The function button initiates direct copy, dismounts USB devices, and is used to initialize the

LinkStation.

2 Function LED

The function LED glows blue when direct copy is nished, during initialization, and during

USB dismounting (about 60 seconds). During direct copy the function LED blinks blue.

3 Link/Act LED

Glows green for connection.

Blinks green for access.

4 Info/Error LED

The info/error LED blinks orange when there’s a message and red when there’s an error.
