D-Link DMC-810SC [9/10] Switch

Link Status

Disconnect

Link 1

Link 2 Link 3 Link 4

Cable 1 Off Off Off Off

Cable 2 Off On On Off

Cable 3 Off Off Off Off

Cable 4 Off Off Off Off

NOTE: If connecting two converters with LLR function in both end, it is recommended that the monitor

end converter had to turn off the LLR function, and turn on the LLR function of the remote end

converter.

Switch 1 : On -> Forced Mode

Off -> Auto Negotiation mode

Switch 2 : On -> LLR enable

Off -> LLR dis able

Switch

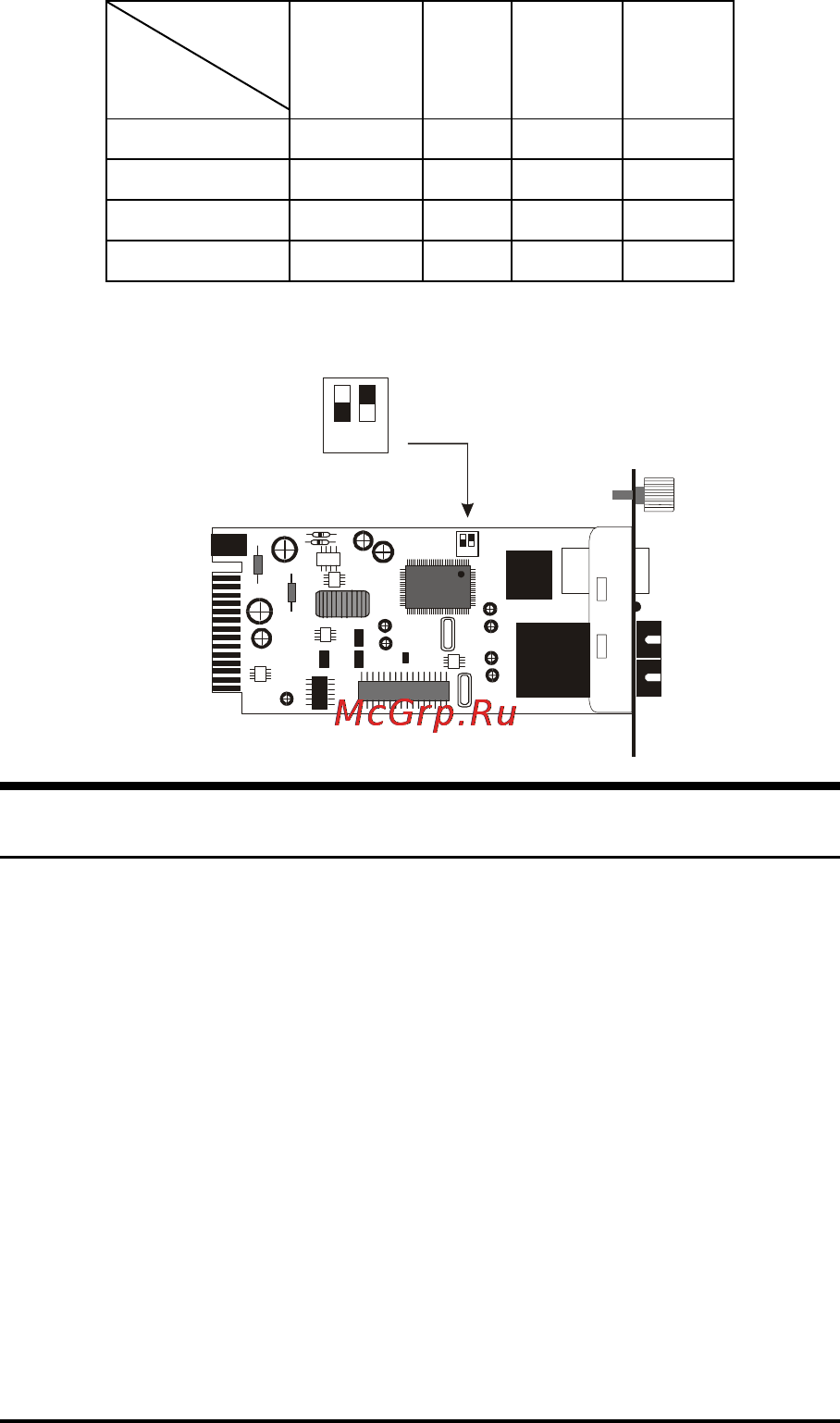

There is a two pin DIP switch on the module which define as

switch 1 and switch 2:

Switch 1: Fiber mode switch

When the switch was turned to “On”, it means that the

fiber was turned to forced mode, and “Off” for

auto-negotiation mode.

Note: Be sure the opposite end is using the same setting (forced or Auto-negotiation).

And when using two converters at the same time, the two converters MUST set to

forced mode.

Switch 2: LLR

When the switch was turned to “On”, it means that the

LLR was enabled and “Off” for disabled.

Note: When using two converters, don’t enable the both device’s LLR function at the
