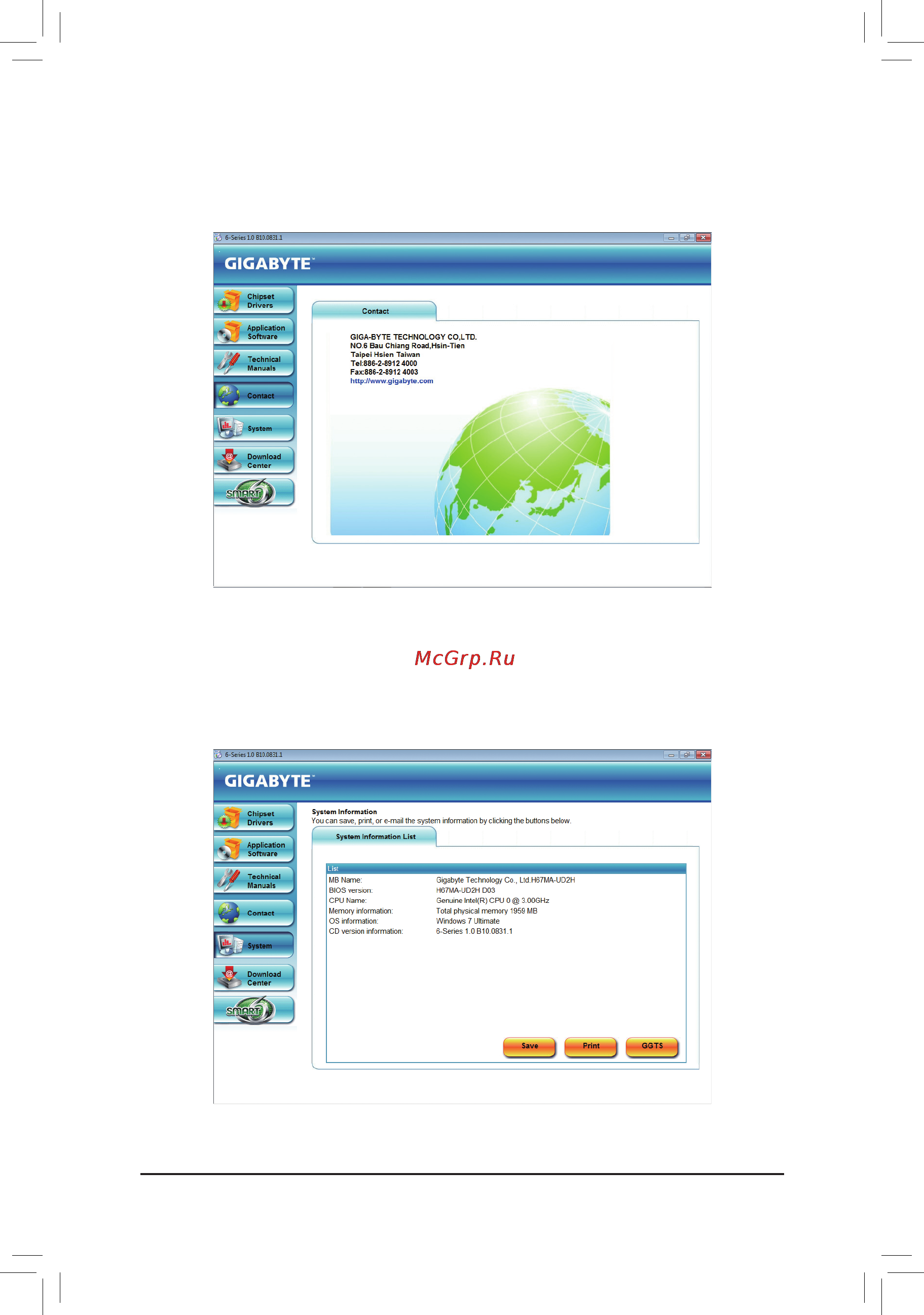

- 59 - Drivers Installation

3-4 Contact

For the detailed contact information of the GIGABYTE Taiwan headquarter or worldwide branch ofces, click

the URL on this page to link to the GIGABYTE website.

3-5 System

This page provides the basic system information.
