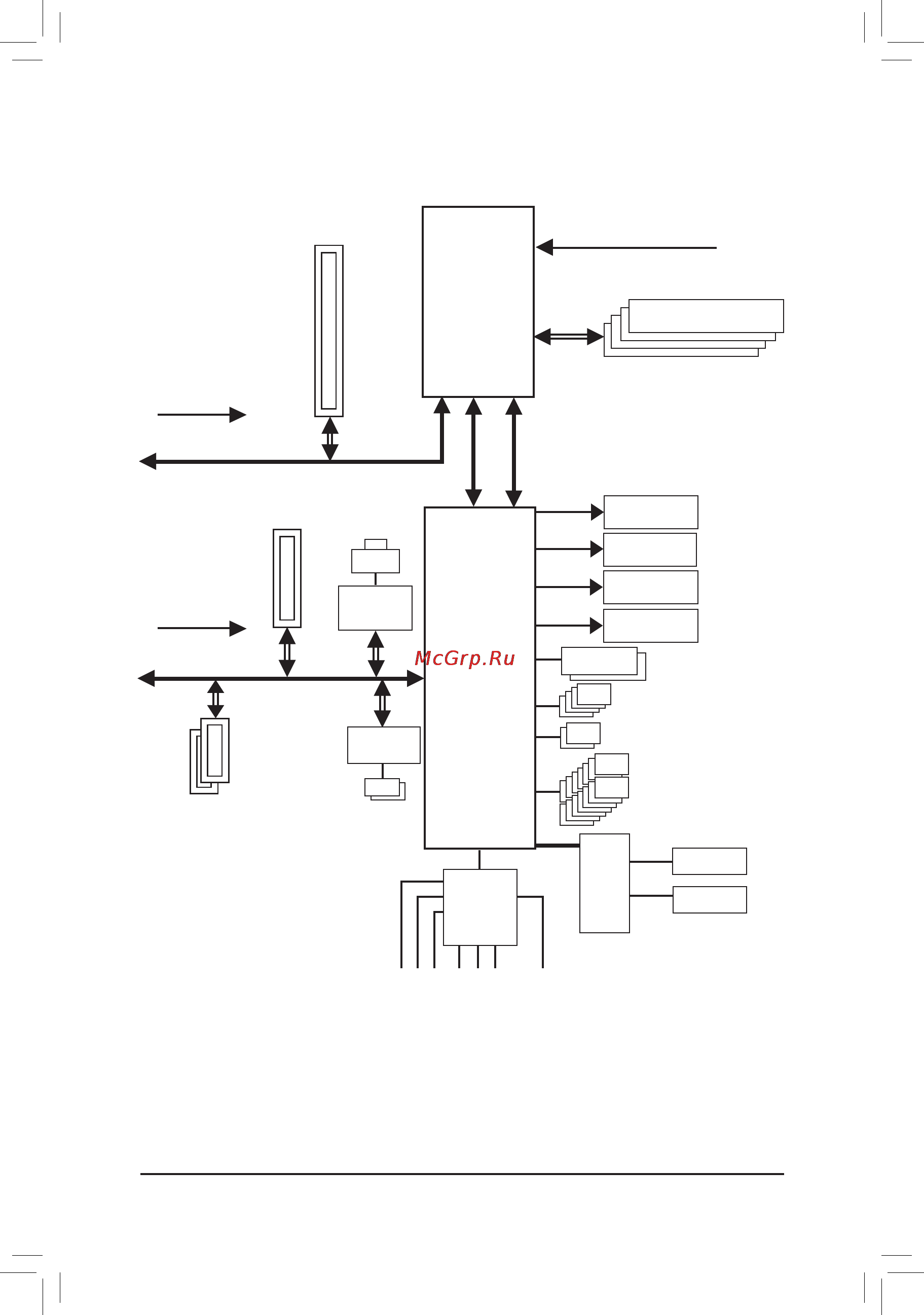

GA-H67MA-UD2H-B3 Motherboard Block Diagram
Center/Subwoofer Speaker Out
Line Out
MIC
Line In
S/PDIF Out
Side Speaker Out
Surround Speaker Out
CODEC
PS/2 KB/Mouse
LGA1155
CPU
Intel
®
H67
PCIe CLK
(100 MHz)
PCI Express Bus
CPU CLK+/- (100 MHz)
1 PCI Express x16
Dual BIOS
COM Port
14 USB 2.0/1.1
LPC
Bus
DDR3 1333/1066/800 MHz
x1
LAN
RJ45
x4
1 PCI Express x4
PCI Express Bus
x16
PCIe CLK
(100 MHz)
D-Sub
DVI-D
HDMI
x1
Renesas
D720200
Realtek
RTL8111E
2 USB 3.0/2.0
DisplayPort
Dual Channel Memory
iTE
IT8728
2 SATA 6Gb/s
4 SATA 3Gb/s
x1
2 PCI Express x1
DMI Interface
FDI Interface
