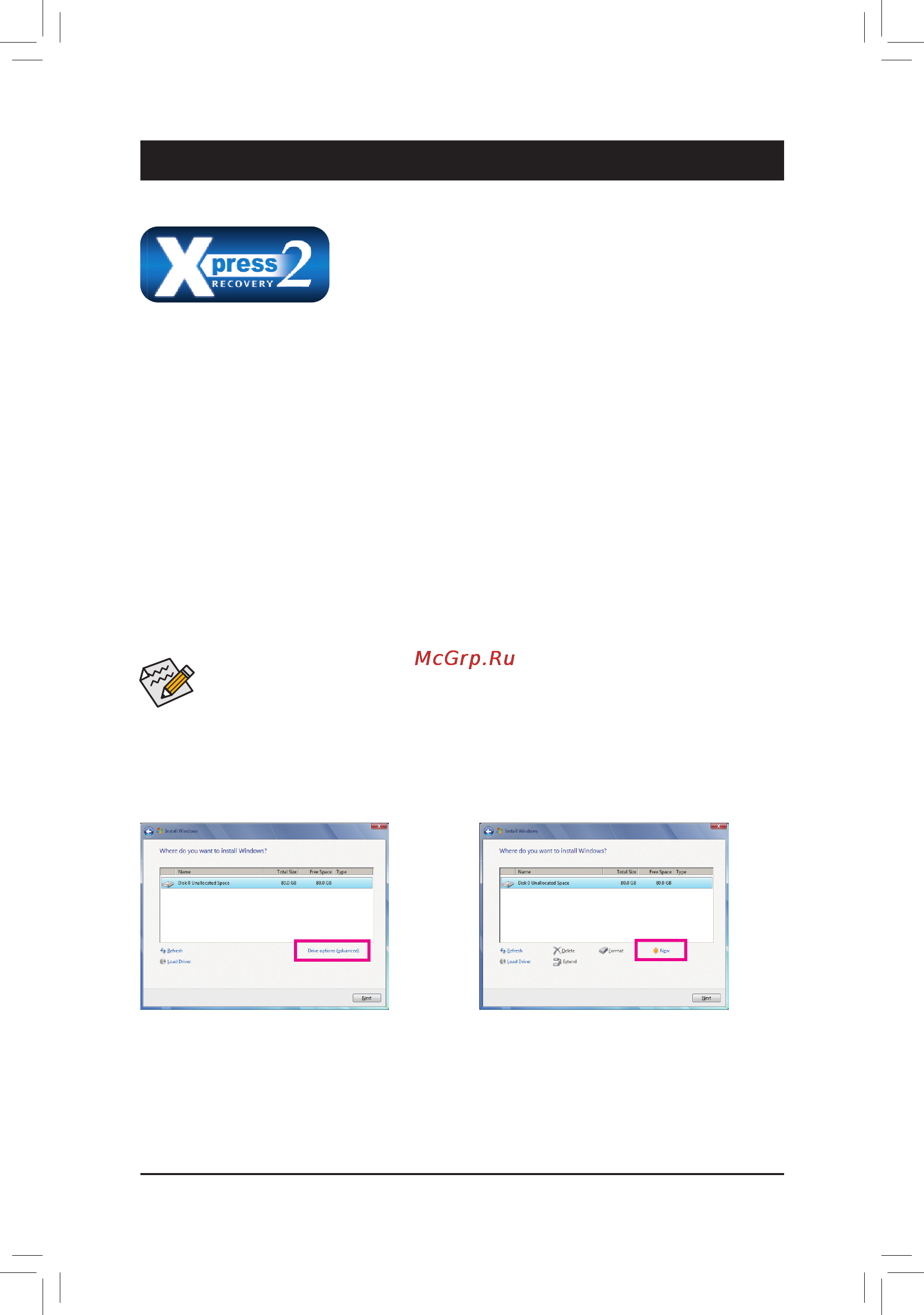

- 61 - Unique Features
4-1 Xpress Recovery2
Chapter 4 Unique Features
Xpress Recovery2 is a utility that allows you to quickly compress and
back up your system data and perform restoration of it. Supporting NTFS,
FAT32, and FAT16 le systems, Xpress Recovery2 can back up data on
PATA and SATA hard drives and restore it.
Before You Begin:
•
Xpress Recovery2 will check the rst physical hard drive
(Note)
for the operating system. Xpress Recovery2
can only back up/restore the rst physical hard drive that has the operating system installed.
•
As Xpress Recovery2 will save the backup le at the end of the hard drive, make sure to leave enough un-
allocated space in advanced (10 GB or more is recommended; actual size requirements vary, depending
on the amount of data).
•
It is recommended to back up your system soon after the operating system and drivers are installed.
•
The amount of data and hard drive access speed may affect the speed at which the data is backed up/
restored.
•
It takes longer to back up a hard drive than to restore it.
System Requirements:
•
At least 512 MB of system memory
•
VESA compatible graphics card
•
Windows XP with SP1 or later, Windows Vista, Windows 7
•
Xpress Recovery and Xpress Recovery2 are different utilities. For example, a backup le created
with Xpress Recovery cannot be restored using Xpress Recovery2.
•
USB hard drives are not supported.
•
Hard drives in RAID/AHCI mode are not supported.
Installation and Conguration:
Turn on your system to boot from the Windows Vista setup disk.
A. Installing Windows Vista and Partitioning the Hard Drive
Step 1:
Click Drive options.
Step 2:
Click New.
(Note) Xpress Recovery2 checks the rst physical hard drive in the following sequence: The rst SATA connector, the second
SATA connector and so forth. For example, When hard drives are attached to the rst and third SATA connectors, the hard
drive on the rst SATA connector is the rst physical drive.
