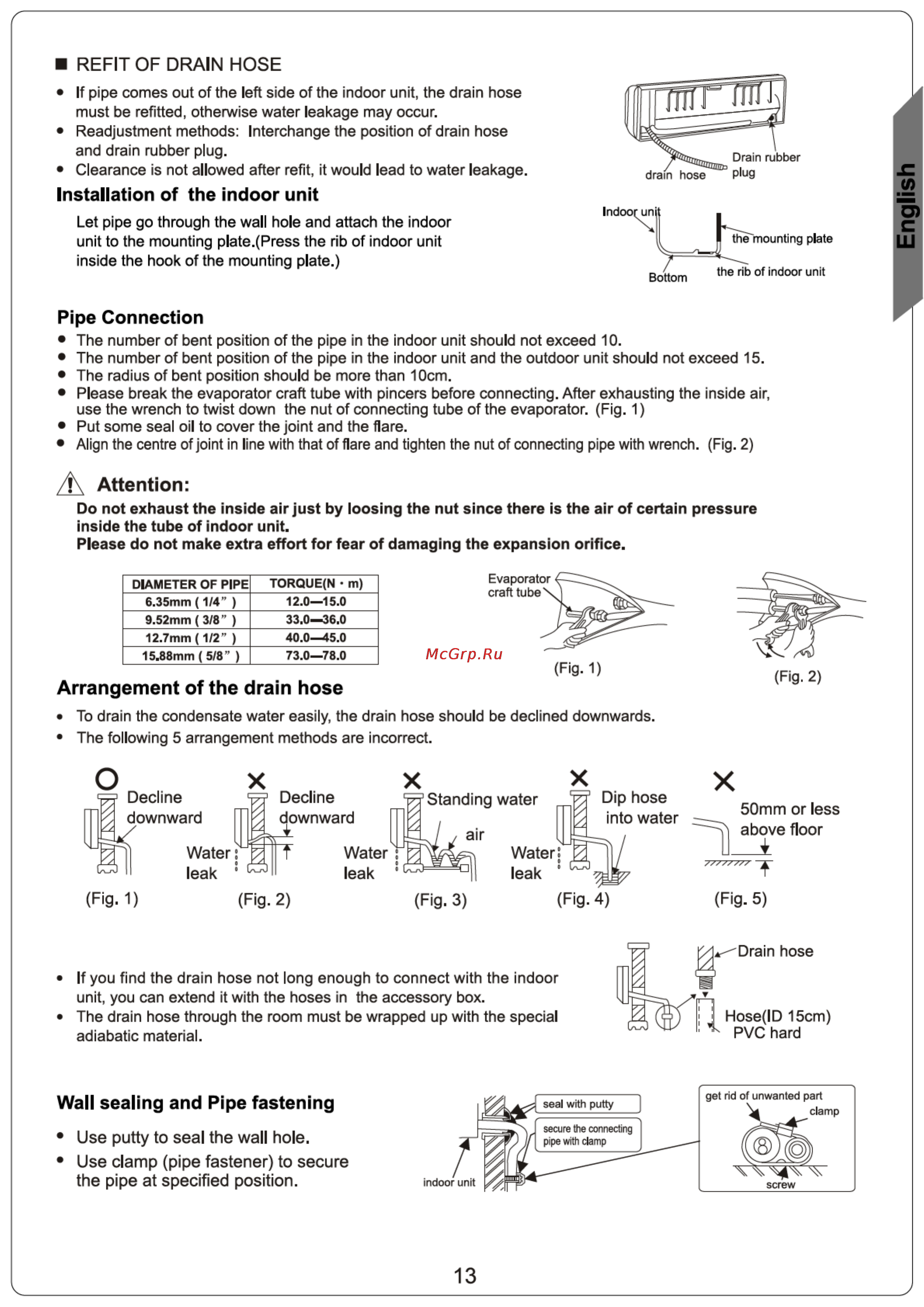

REFIT OF DRAIN HOSE If pipe comes out of the left side of the indoor unit the drain hose must be refitted otherwise water leakage may occur Readjustment methods Interchange the position of drain hose and drain rubber plug Clearance is not allowed after refit it would lead to water leakage Installation of the indoor unit Indoor uni Let pipe go through the wall hole and attach the indoor unit to the mounting plate Press the rib of indoor unit inside the hook of the mounting plate the mounting plate Bottom the rib of indoor unit Pipe Connection The number of bent position of the pipe in the indoor unit should not exceed 10 The number of bent position of the pipe in the indoor unit and the outdoor unit should not exceed 15 The radius of bent position should be more than 10cm Please break the evaporator craft tube with pincers before connecting After exhausting the inside air use the wrench to twist down the nut of connecting tube of the evaporator Fig 1 Put some seal oil to cover the joint and the flare Align the centre of joint in line with that of flare and tighten the nut of connecting pipe with wrench Fig 2 Attention Do not exhaust the inside air just by loosing the nut since there is the air of certain pressure inside the tube of indoor unit Please do not make extra effort for fear of damaging the expansion orifice DIAMETER OF PIPE 6 35mm 1 4 TORQUE N m 9 52mm 3 8 33 0 36 0 12 7mm 1 2 40 0 45 0 15 88mm 5 8 73 0 78 0 12 0 15 0 Fig 2 Arrangement of the drain hose To drain the condensate water easily the drain hose should be declined downwards The following 5 arrangement methods are incorrect w Decline Kj downward w Decline downward Water leak Fig 1 50mm or less above floor Water leak Fig 2 Fig 3 Fig 4 Fig 5 Drain hose If you find the drain hose not long enough to connect with the indoor unit you can extend it with the hoses in the accessory box The drain hose through the room must be wrapped up with the special adiabatic material Wall sealing and Pipe fastening Use putty to seal the wall hole Use clamp pipe fastener to secure the pipe at specified position 13 Hose ID 15cm PVC hard
