ENGLISH
6
Connection
The following available video output for this unit.
Composite Video
Use the AVc able (yellow terminal) to connect composite video output
terminal of this unit to the TV/monitor video input terminal.
SVideo
Use the Svideo cable to connect the svideo output terminal of this unit
to the TV/monitor Svideo input terminal.
Component Video (YUV)
Use core AV cable to connect the component output terminals of this
unit to 3 the corresponding TV/monitor input terminals.
VGA
Use a VGA cable to connect the VGA output terminal to the TV/monitor
VGA input terminal.
SCART
Use a 21_pin SCART cable to connect the SCART output terminal to the
TV/monitor SCART input terminal.
Note:
• Real connection depends on the TV/monitor input terminal.
• Don't use the all connections at the same time, otherwise the picture
will be affected.
Only the physical connection conforms to the video setting can
it produce the normal picture (please refer to the Video Setup in
System Setup).
SPEAKERS
The configuration and arrangement of a surround sound system
speakers is critical. For maximum listening enjoyment, refer to the
arrangement of speakers section in this manual prior to connecting
speakers.
Surround Sound Speakers
Front or main right and left speakers; center speaker
These three speakers provide extensive sound imaging and augment the
dynamic effect of the audio. A movie principal dialogue comes through
these speakers.
Rear or surround sound speakers
These two speakers provide 3D dynamic sound effects, and create an
enveloping atmosphere, as they add background sounds.
SubWoofer speaker
Provides rich and powerful bass, adding a powerful dimension of
realism.
Note: Audio recorded for the center speaker and subwoofer will be
assigned to the front and 3D rear speakers to obtain the optimum 3D
surround sound effect.
ARRANGEMENT OF SPEAKERS
The ideal surround sound speaker configuration may vary according
to room size and wall material. The figure below illustrates a typical
arrangement.
Hints:
1. Front or main speakers and central speaker should be placed at the
same level and in away that sound is oriented toward the listener
ears.
2. 3D surround sound or rear speakers should be placed 3’ higher than
the height of listener ears.
3. Subwoofer speaker may be placed anywhere within the room, as its
location produces little effect on a listener’s sensation to sound.
4. To obtain the optimum bass effect, a subwoofer is recommended in
home theater systems.

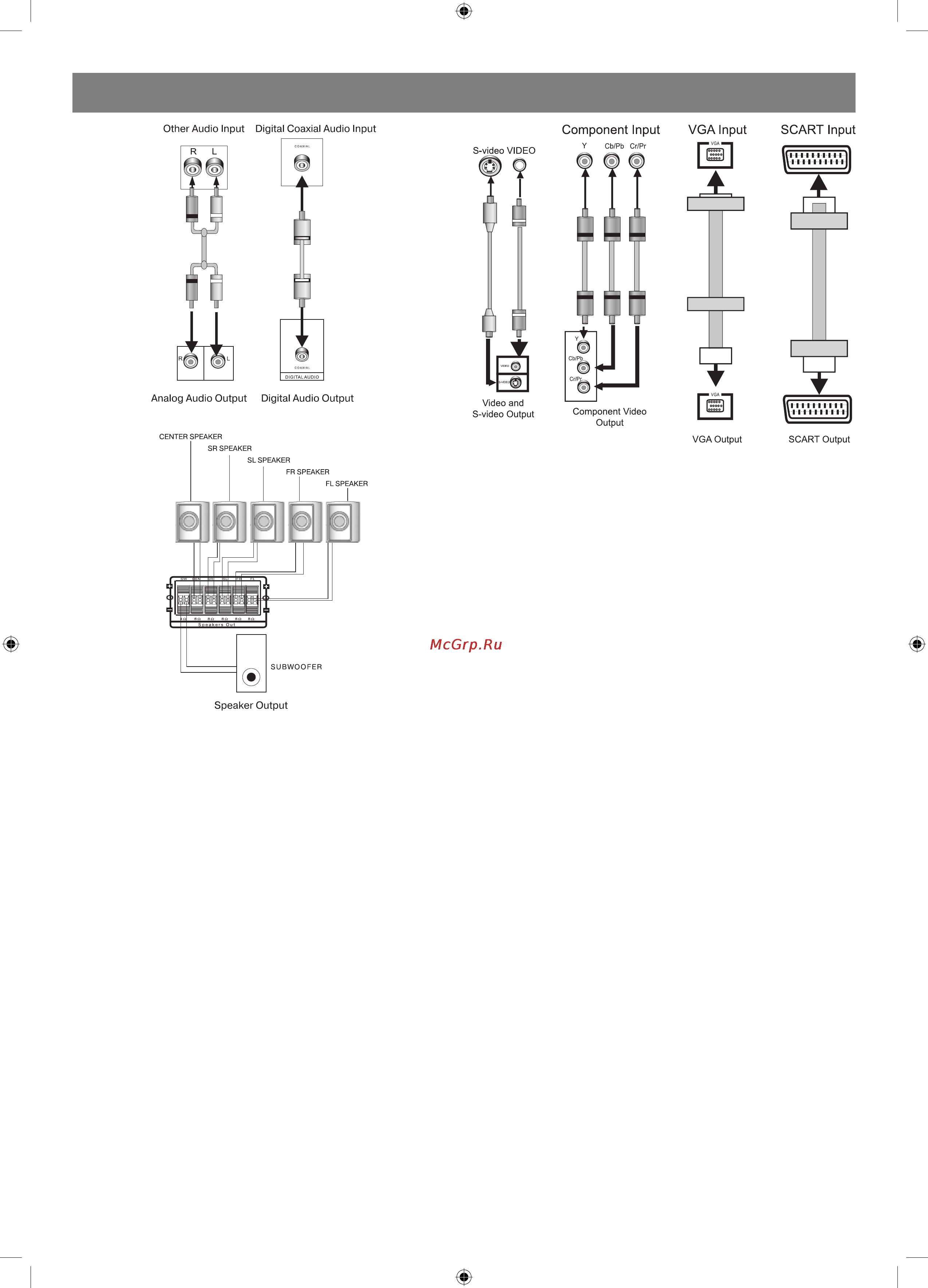

CONNECTING SPEAKERS
This welldesigned DVD receiver provides optimum sound quality when
the speakers used are within the range of their rated impedance.
Important
1. The minimum impedance of the five speaker terminals is 4ohm; for
the subwoofer, it is 8 ohm.
2. If you want to use only one speaker or listen to monophonic music,
do not parallel connect individual speakers to the left and right
channel terminals. See the figure on the below.
4060.indd 64060.indd 6 23.10.2006 9:25:1223.10.2006 9:25:12
