User’s Manual

CONNECTING TO A VCR/VCD/DVD/HDVR/SET-TOP BOX

Connect A/V devices via the DVI and Audio Line in connectors at the back of the monitor.

1. Connect the Y (green) connector on the DVI-I to YPbPr adapter cable to the Y output

connector on the A/V device.

2. Connect the Pb (blue) connector on the DVI-I to YPbPr adapter cable to the Pb/Cb

output connector on the A/V device.

3. Connect the Pr (red) connector on the DVI-I to YPbPr adapter cable to the Pr/Cr output

on the A/V device.

4. Connect the other end of the DVI-I to YPbPr adapter cable to the back of the monitor.

5. Connect the 3.5mm mini jack to R/L adapter cable to the audio output connector of the

A/V device and the other end to the audio input connector at the back of the monitor.

6. Turn on your monitor and A/V device.

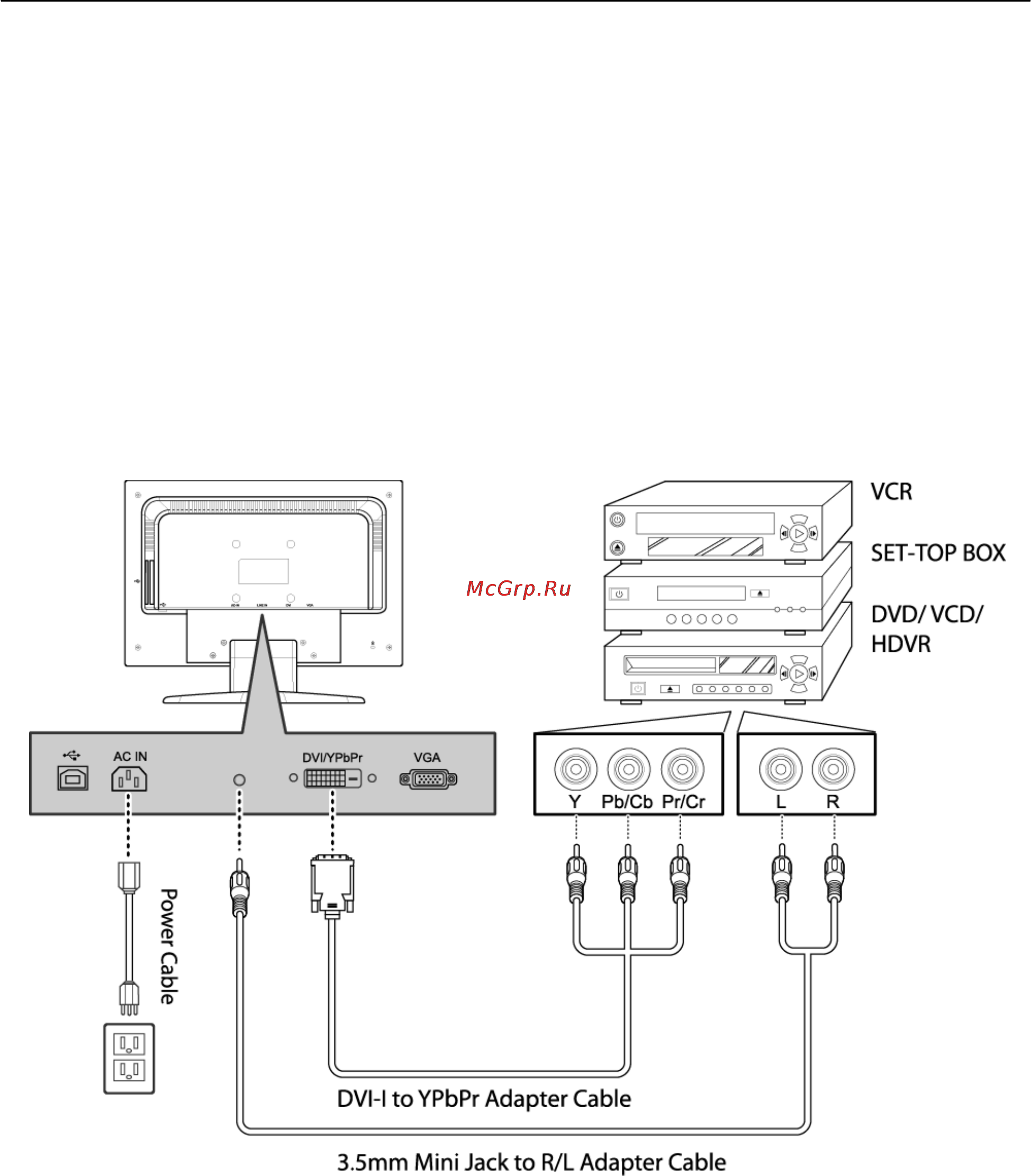

Figure 3: Connecting A/V Devices
