Hanns.g HW223DP [9/22] Installation instructions

User’s Manual

INSTALLATION INSTRUCTIONS

Install Remove

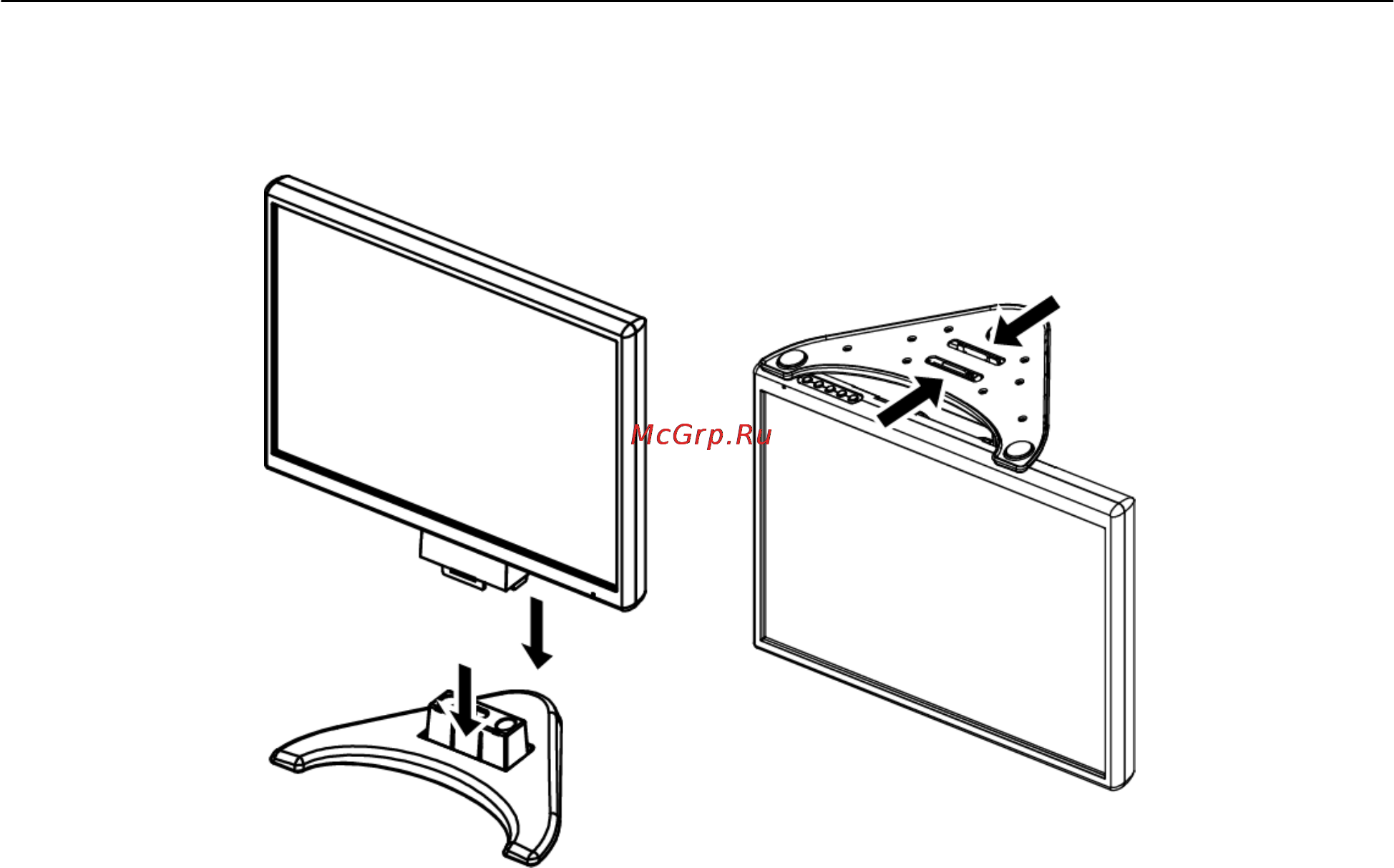

Figure 1: Installing and Removing the Base

INSTALLATION:

1. Align the monitor with the opening in the base.

2. Note that the longer section of the base points forward.

3. Snap the monitor into its base. A clear click sound will affirm that the base is connected

correctly.

4. Verify that the monitor is securely attached to the base by looking at the bottom of the

base and making sure that the clips are fully engaged in the base.

REMOVAL:

1. Flip over the monitor so that it us upside down.

2. Press the 2 clips on the base that holds the monitor in place.

3. Gently press and hold the 2 clips while pulling the base from the monitor unit they are

unattached.

POWER

POWER SOURCE:

1. Make sure that the power cord is the correct type required in your area.

2. This LCD monitor has an Internal universal power supply that allows operation in either

100/120V AC or 220/240V AC voltage area (No user adjustment is required.)

3. Connect the AC-power cord one end to your LCD monitor’s AC-input socket, the other

end to wall-outlet.
