Thermaltake Element V NVIDIA Edition [19/19] Content on this sheet is additional information for page 21 to page 26 of element v nvidia edition s user s manual

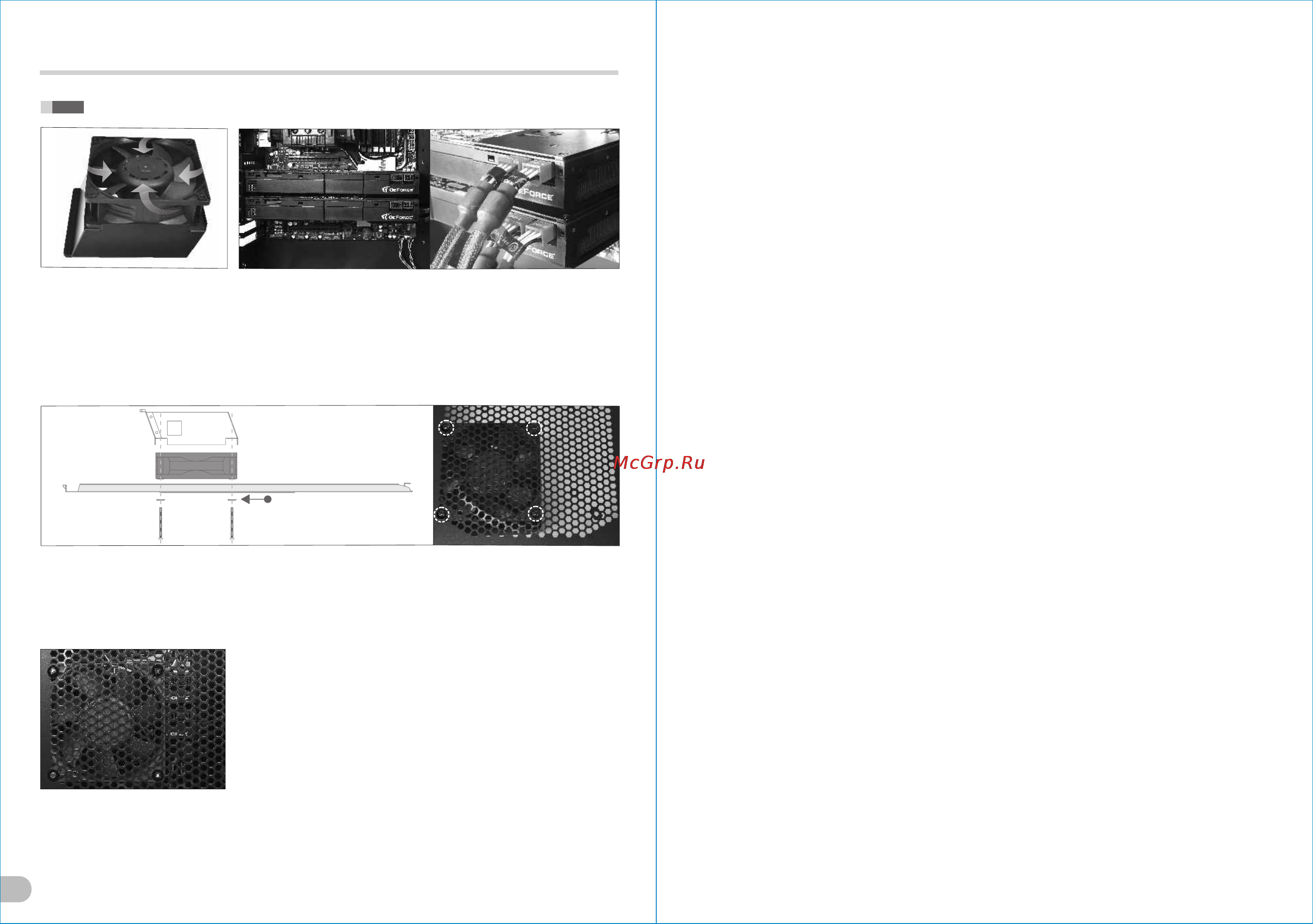

Place the 120 x 38 mm fan on the Fan Duct

3 as shown. Make sure the airflow of the

fan is pointed towards the Fan Duct (Airflow

direction is indicated by an arrow located on

the side of the fan).

Do not secure the fan onto the Fan Duct 3

yet.

Remove the 230 mm fan from the side panel. Place the side panel back onto the chassis.

Mark the locations on the perforated side panel that can be lined up with the fan on the Fan Duct system.

Remove the side panel and the Fan Duct system from the chassis.

Align the Fan Duct system with the pre-marked locations on the side panel.

Install the Fan Duct system to the side panel as shown. (4 x 6#32 screws and 4 x washers are used)

Install the graphic cards.

Attach the 3-4 pin wire to 120 x 38 mm fan

and connect to PSU directly.

Installation complete.

Connect the required PCI-E power

connectors from the power supply to

graphic cards.

QUAD SLI INSTALLATION

Performance Cooled by Thermaltake

Content on this sheet is additional information for page 21 to page 26

of Element V NVIDIA Edition's User's Manual

Notice:

Because each motherboard may have a different PCI-E slot location, the placement of

the Fan Duct system needs to be adjusted to provide maximum airflow. First manually

place the Fan Duct System on top of the graphic cards’ air intakes without any type of

attachment.

Fan Duct 3

120 x 38 mm fan

Washer

6#32 screw
