Kranzle 2+2 [4/20] Assembly of side brushes and push handle

4

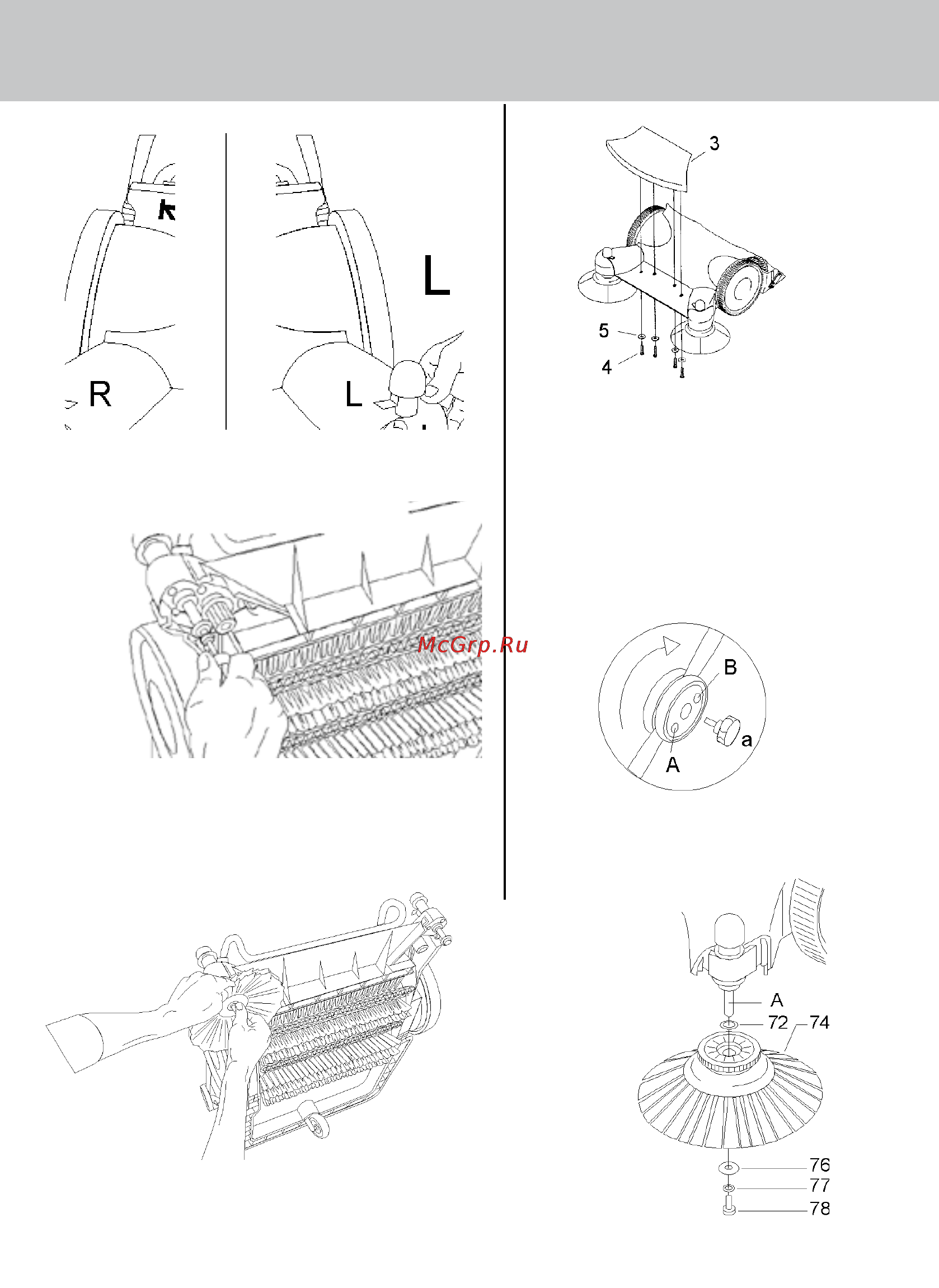

Assembly of side brushes and push handle

Nowpressthesafetycapsfromabove,makingsure

thattheyareattachedtothecorrectsides(engraved

rightandleft).

Loosenthefourplasticscrews(4)onthe

undersideofthedustspoiler(3)andplace

thescrewswiththeplainwasher(5)onthe

ground.

Pressthespoilerfromthetopontothe

housing.Nowturnthescrewswiththeplain

washerfrombelowthroughtheholesinthe

housingintothespoiler.Nowtightenthe

screws.

Fixthepushbarintotheworkpositionin

hole(A)usingthestarscrewsprovided(a).

Firstplacewasherno.72onsidebrushno.74abovetheballbearingand

placebothonbearingboltA.Tightenthescrewwithsafetywashersno.76

andno.77intothebolt.

Foldbackthehandleonthemachine.Nowputthe

sweeperupsidedownonthegroundand,remove

thescrewfromthebrassaxleoftheinletbrush.
