29-EN
01GB05CDA9886.fm
ALPINE CDA-9886M 68-12118Z86-A (EN)
Repeat Play
Only Repeat One is available for the iPod.
Repeat One:
A single song is repeatedly played back.
1
Press 4.
The song is played back repeatedly.
2
To cancel repeat play, select (off) with the above
procedure.
• During repeat playback, no other songs are selectable by pressing
or .
Displaying the Text
You can display the tag information of a song in the iPod.
Press VIEW.
Each press changes the display.
• When the Text Scroll is set to Manual, press and hold VIEW for at
least 2 seconds, the current text will be scrolled one time.
iPod mode:
*
1
TAG information
If the “Text Scroll” (page 21) is set to “Auto,” the tag information
will scroll automatically.
If there is no text information, nothing will be displayed.
*
2
The numbers of all songs displayed vary depending on the songs
selected by the search.
*
3
When the “Text Scroll” (page 21) is set to “Auto,” the display cannot
be switched by pressing VIEW. The display contents switch
alternately.
• Only alphanumeric characters (ASCII) can be displayed.
• If the artist, album or song name, created in iTunes, has too many
characters, songs may not be played back when connected to the
adapter. Therefore, a maximum of 250 characters is recommended.
The maximum number of characters for the head unit is 128
(128 byte).
• Some characters may not be correctly displayed.
• The display is blank when text information is not compatible with this
unit.
Alpine introduces IMPRINT - the world’s first technology that
thoroughly eliminates in-vehicle acoustic problems that normally
degrade sound quality, which enables us to experience music the way
the artist intended, refer to “About IMPRINT” (page 36).
When the IMPRINT audio processor (PXA-H100) (sold separately) is
connected to this unit, MultEQ and the following sound adjustment can
be performed.
Changing MultEQ mode
MultEQ, developed by Audyssey Labs, automatically corrects the audio
for the listening environment. The system is optimized for selected
positions in the vehicle. To accomplish this, MultEQ must take
measurements of the vehicles response characteristics. For details on the
set up procedure, consult your authorized Alpine dealer.
Press and hold IMPRINT for at least 2 seconds to
change MultEQ mode.
MultEQ Off (Manual Mode) Curve 1 (MultEQ-1)
Curve 2 (MultEQ-2) MultEQ Off (Manual Mode)
• The Curve mode can be selected only when curve 1 and curve 2 are
stored.
•
When using MultEQ, MX, X-OVER, T.Correction, Factory’s EQ,
SUBW. Phase, SUBW. Channel, TW Setup, EQ Mode, Filter Type,
Parametric EQ and Graphic EQ are set automatically. They are no
longer user adjustable.
• When an external audio processor is connected, the MultEQ function
cannot be used.
RPT (off) RPT
(Repeat One)
Elapsed Time
Track No./All Songs No.
*
2
(Blank)
(Blank)
Calendar
Clock
Artist Name
*
1
*
1
Song Name
*
Album Name
*
1
Song Name
*
1
Elapsed Time
Track No./All Songs No.
*
2
*
3
*
3

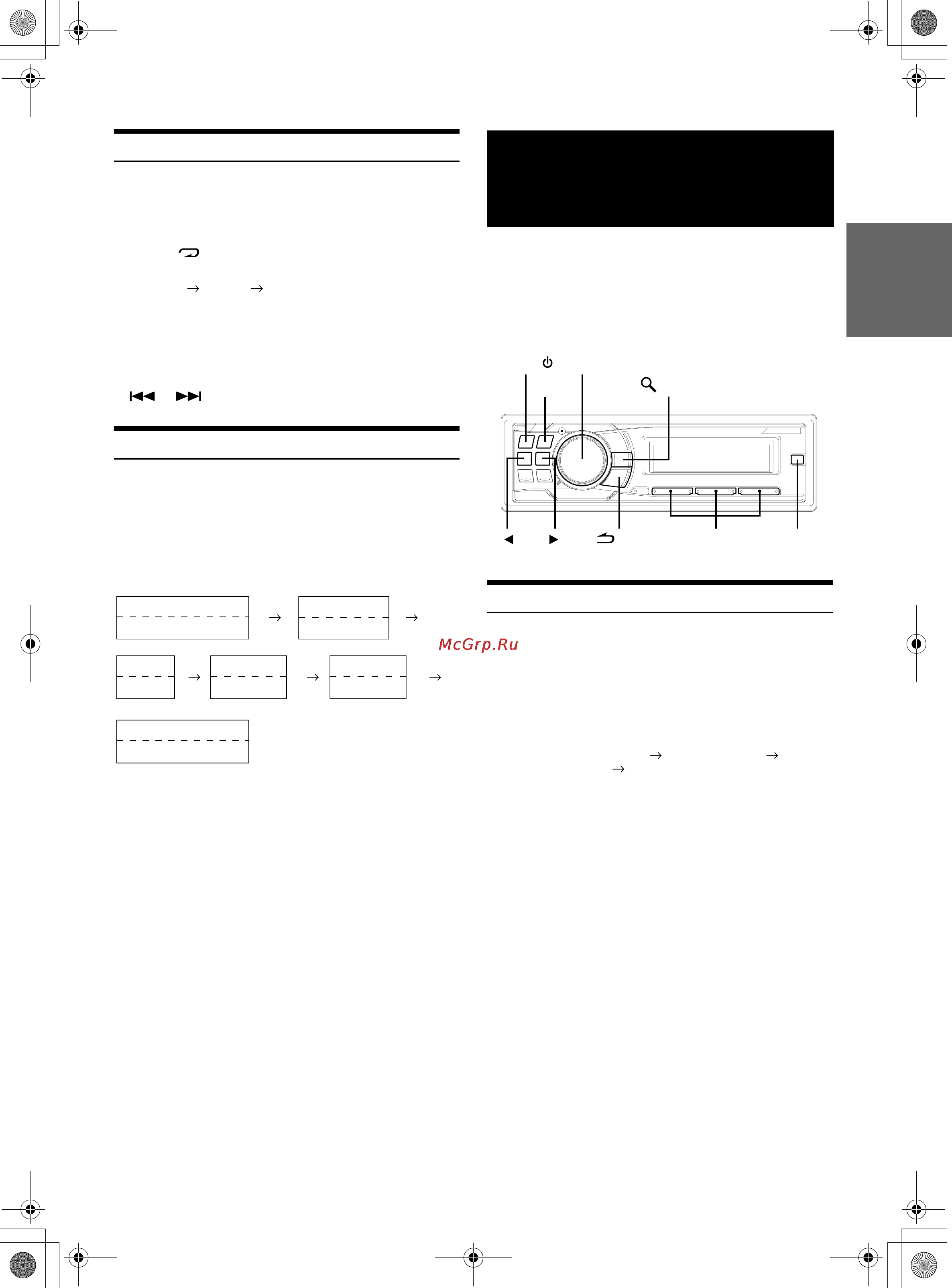

IMPRINT Operation
(Optional)
BAND
SOURCE/
/ESC
Preset buttons
(1 through 6)
IMPRINT
Rotary encoder
/ENT
01GB00CDA9886M.book Page 29 Monday, March 17, 2008 4:05 PM
