Routine maintenance
capacity and place it beneath the engine unit to catch the old
oil. Unscrew the drain plug on the underside of the crankcase
and allow the oil to drain.
Remove the large hexagon-headed plug which is located
just below the left-hand engine casing. Remove the plug,
followed by the spring and gauze element, and then wash all
these components carefully in a suitable solvent. Wipe out any
residual oil from the housing with a clean lint-free rag prior to
reassembly. Refit the drain plug, tightening it to a torque setting
of 2.0 - 3.5 kgf
m
(14.5 - 25
Ibf
ft), and refill the engine with
the correct quantity and grade of oil.
Six-monthly, or every 3600 miles (6000 km)
Repeat all service operations listed under previous
headings, then carry out the following:
/ Clean the air filter
Pull off the right-hand side panel and remove the two nuts
which secure the air filter cover. Withdraw the cover, checking
that the sealing gasket is in good condition, pull out the
retaining spring and withdraw the element assembly. Peel off
the inner and outer foam sleeves. Wash all components in white
spirit (Stoddard solvent) or in warm water and detergent and
dry them thoroughly. Soak the foam sleeves in the specified oil,
then squeeze them gently (do not wring them out or they will be
damaged) to expel all surplus oil. Refit the sleeves to the
element frame. On reassembly ensure that all components are
correctly fitted so that unfiltered air cannot bypass the element.
2 Check the spark plug
Remove the spark plug cap, unscrew the plug and check its
condition, comparing it with the photographs on page
65. If it is badly worn or fouled it must be renewed. If it is fit for
further service check the gap and reset it if necessary, as
described in Chapter 3.8.
3 Check the valve clearances
It is important that the correct valve clearance is
maintained. A small amount of free play is designed into the
valve train to allow for expansion of the various components. If
the setting deviates greatly from that specified, a marked drop
in performance will be evident. In the case of the clearance
becoming too great, it will be found that valve operation will be
noisy, and performance will drop off as a result of the valves not
opening fully. If on the other hand, the clearance is too small
the valves may not close completely. This will not only cause
loss of compression, but will also cause the valves to burn out
very quickly. In extreme cases, a valve head may strike the
piston crown, causing extensive damage to the engine. The
clearances should be checked and adjusted with a cold engine.
Place the machine on its centre stand and remove the
rocker cover, taking care not to damage the 0 ring. Remove the
gearchange pedal and the left-hand outer cover to expose the
generator rotor.

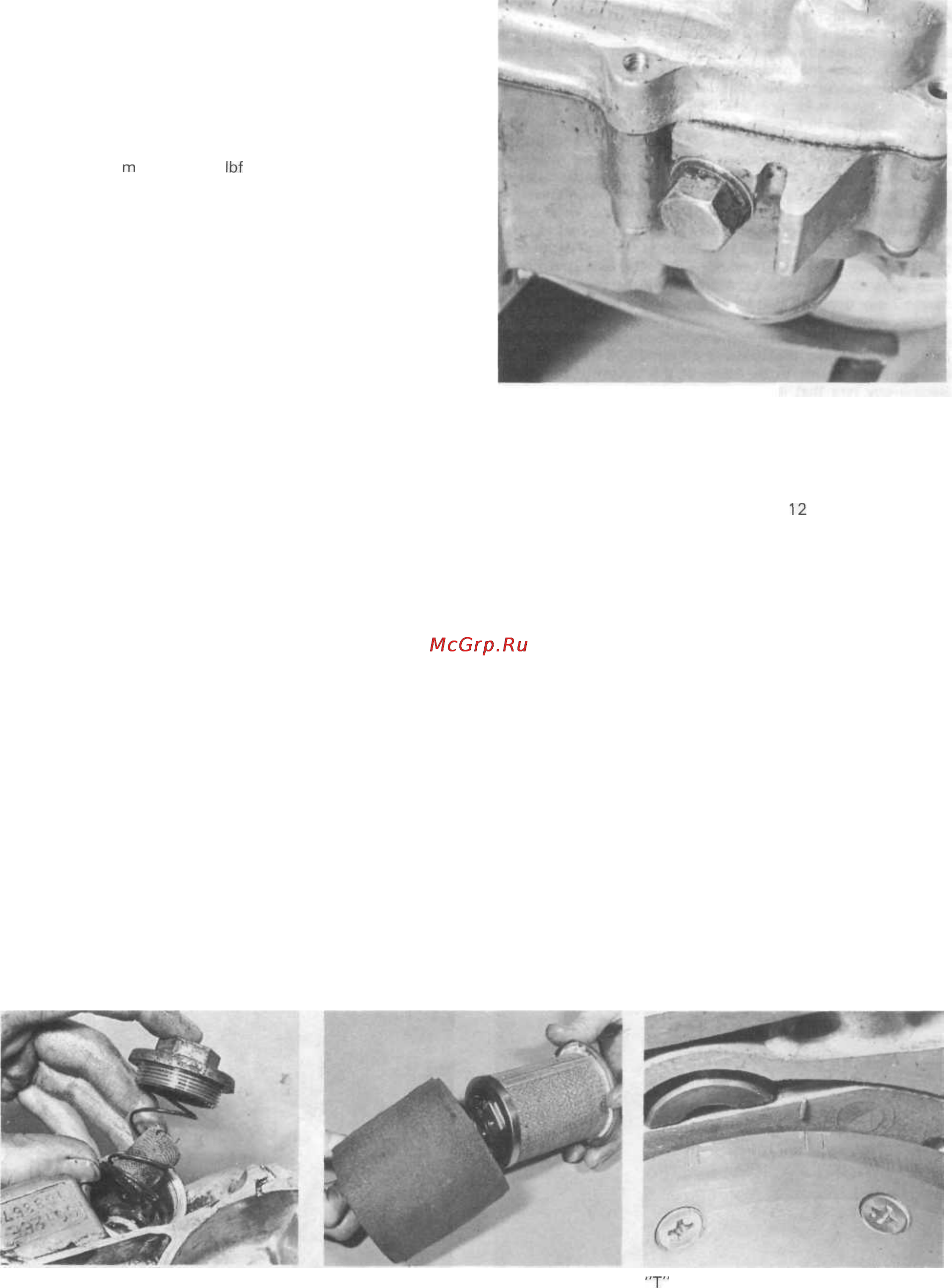

Remove plug and allow old oil to drain
Remove the spark plug, then slowly rotate the engine anti-
clockwise by way of the generator rotor, watching the inlet
valve. When it has opened and closed again (sunk down and
risen up to its original position), rotate the engine further until
the T mark on the rotor periphery aligns exactly with the raised
index mark which is positioned between
12
and 1 o'clock (from
the crankshaft) on the generator stator. The engine will then be
in the correct position for checking the valve clearances, namely
at Top Dead Centre (TDC) on the compression stroke; check
that there is free play at both rockers.
Using a 0.08 mm (0.003 in) feeler gauge, check the
clearance between the top of each valve stem and its cor-
responding rocker. The feeler gauge must be a light sliding fit,
with the rocker and valve stem just nipping it. If necessary,
slacken the locknut, and turn the small square-headed adjuster
to obtain the correct setting. Tighten the locknut, holding the
adjuster at the same time to prevent it from moving. Finally,
recheck the setting and then repeat the procedure on the other
rocker.
4 Check the contact breaker points and ignition
timing
Note: since the generator stator plate is located by its
countersunk retaining screws, the ignition timing can only be
altered by opening or closing the contact breaker gap; therefore
both operations are described as one. The full procedure is
given here for ease of reference, but if the points are found to
be in good condition and if the gap has not altered or is within
the tolerance, then the ignition timing will be sufficiently
accurate and there will be no need to carry out the full check.
First remove the gearchange pedal, the left-hand outer cover,
the spark plug and the left-hand side panel.
Strainer is easily removed for cleaning Dismantle the element for cleaning
-j-
mark should align as shown
and lubrication
