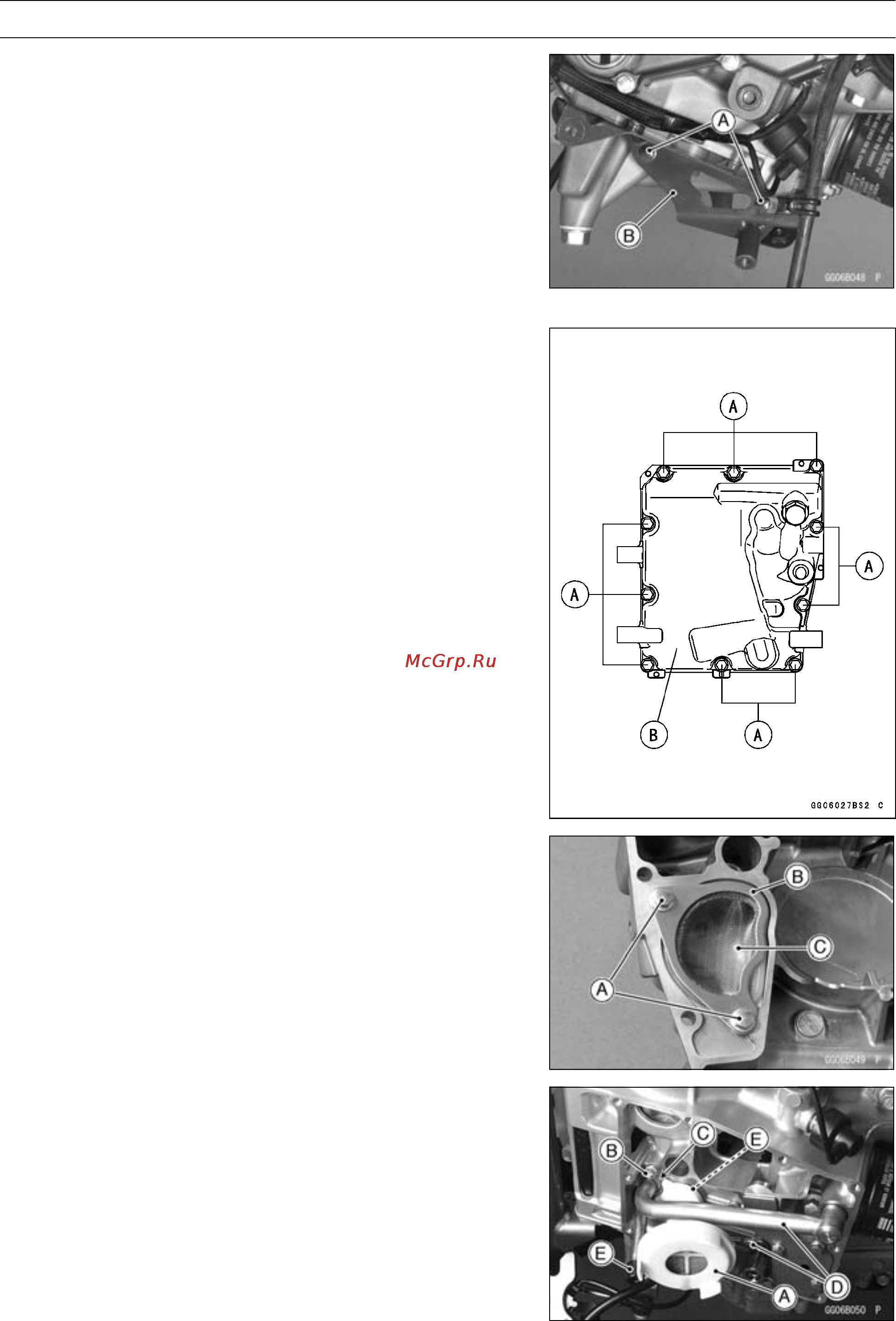

ENGINE LUBRICATION SYSTEM 7-9
Oil Pan
Oil Pan Removal
•
Drain the engine oil (see Engine Oil Change in the Peri-
odic Maintenance chapter).
•
Remove:
Exhaust Pipe (see Exhaust Pipe Removal in the Engine
Top End c h a p ter )
Muffler Body (see Muffler Body Removal in the Engine
Top End c h a p ter )
•
Remove the bolts [A] and right lower fairing bracket [B].
•
Remove the left lower fairing bracket in the same way as
right.
•
Remove:
Oil Pan Bolts [A]
Oil Pan [B]
•
Remove the following from the oil pan as necessary.
Filter Plate Bolts [A]
Filter Plate [B]
Filter [C]
•
Remove the following from the lower crankcase half as
necessary.
Oil Screen [A]
Oil Pipe Plate Bolt [B]
Oil Pipe Plate [C]
Oil Pipes [D]
Dampers [E]
