16-50 ELECTRICAL SYSTEM
Electric Starter System
•

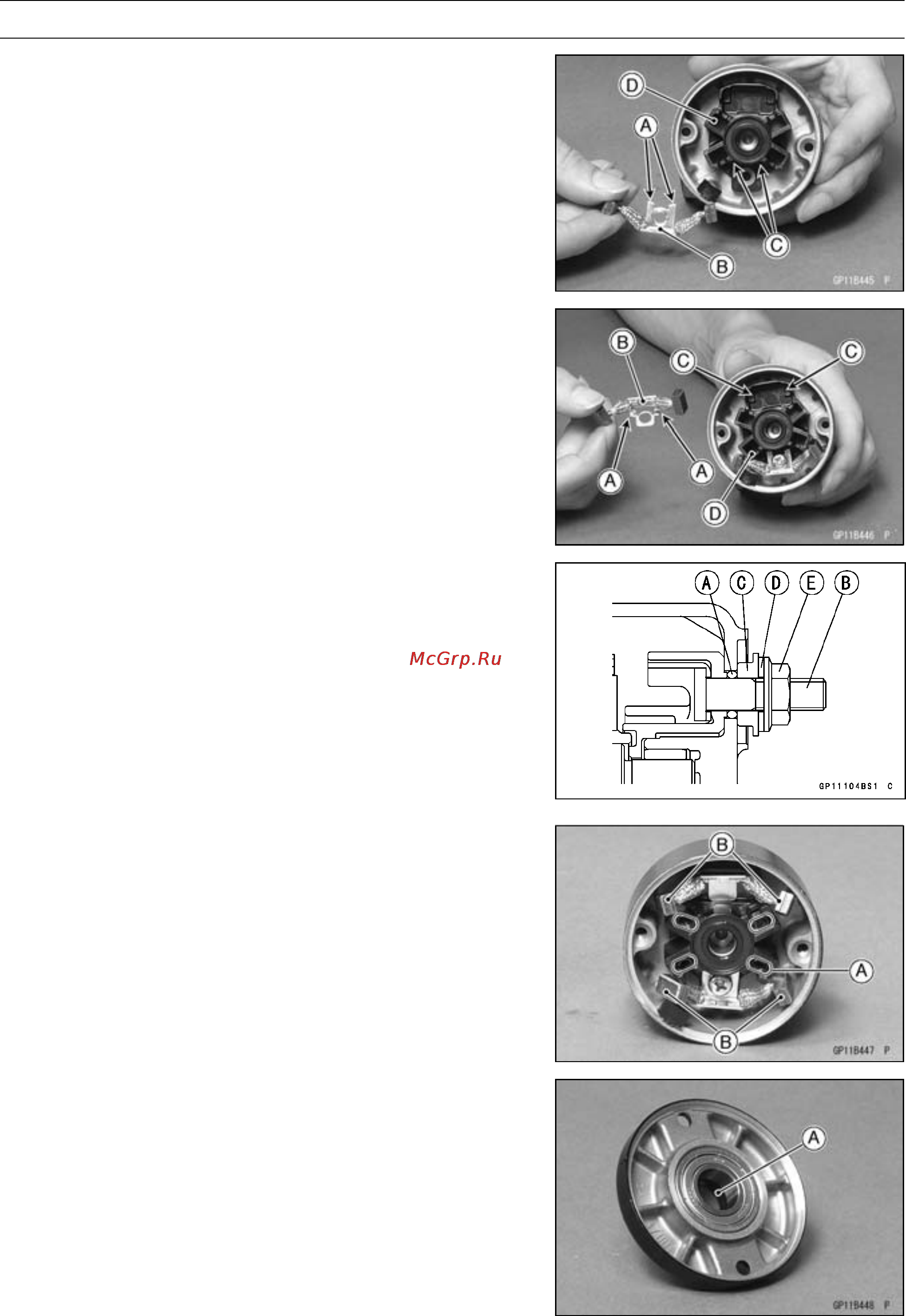

Align the stoppers [A] of the negative brush assy [B] to
the grooves [C] of the brush holder [D].
•
Tighten the screw securely.
•
Align the stoppers [A] of the positive brush assy [B] to the
grooves [C] of the brush holder [D].
•
Install the starter motor terminal.
•
Replace the O-ring [A] with a new one.
•
Install the following parts to the starter motor terminal [B].
New O-ring
Collar [C]
Washer [D]
Starter Motor Terminal Locknut [E]
○
Install the collar so that stepped side faces outward.
•
Tighten:
Torque - Starter Motor Terminal Locknut: 11 N·m (1.1
kgf·m, 97 in·lb)
•
Install the brush springs [A] and insert the brushes [B].
•
Apply thin coat of grease to the oil seal [A].
