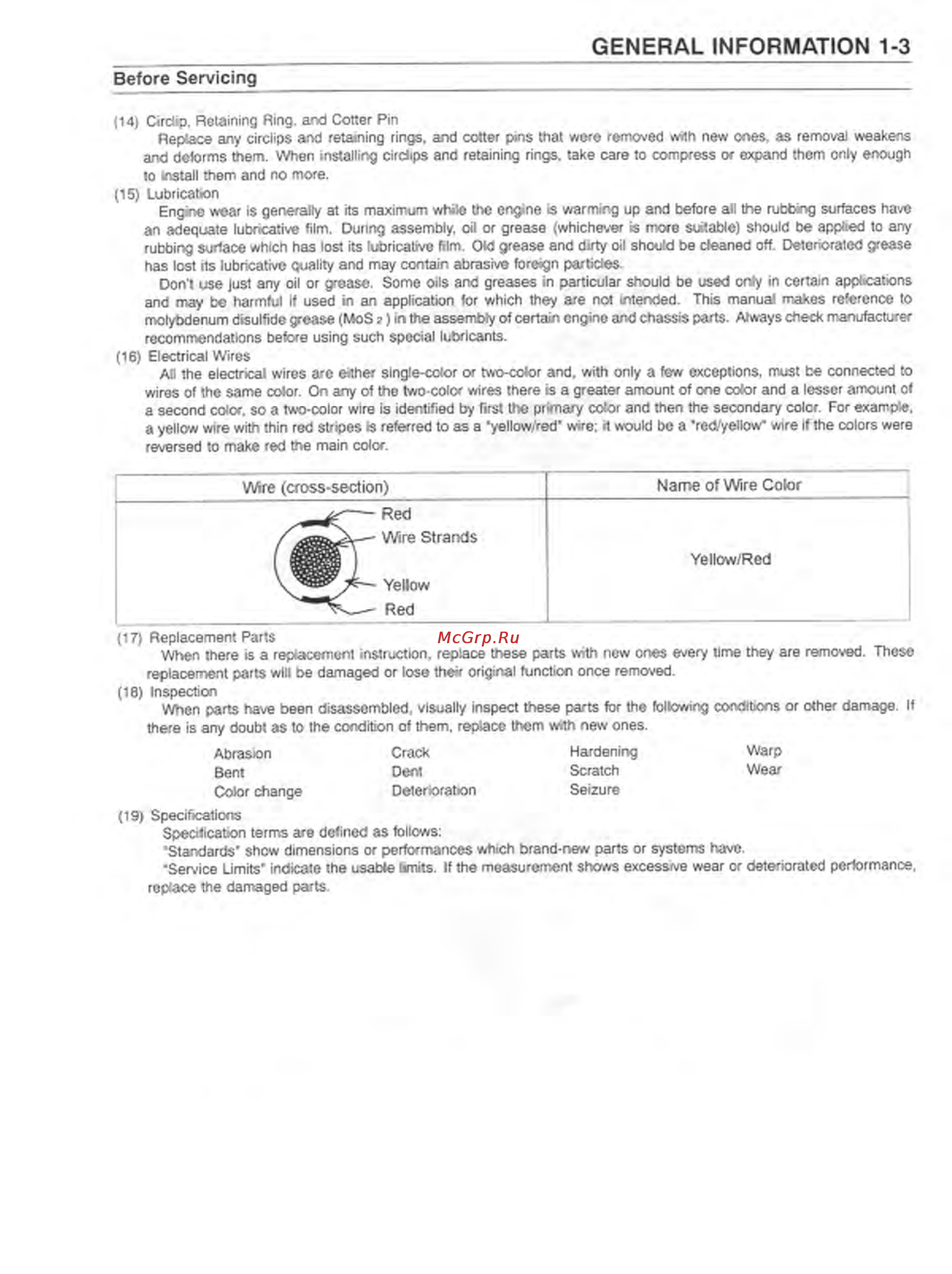

GENERAL INFORMATIO Before Servicing 14 Circlip Retaining Ring and Cotter Pin Replace any circlips and retaining rings and cotter pins that were removed with new ones as removal and deforms them When installing circlips and retaining rings take care to compress or expand them onl to Install them and no more 15 Lubrication Engine wear is generally at its maximum while the engine is warming up and before all the rubbing surfa an adequate lubricative film During assembly oil or grease whichever is more suitable should be applie rubbing surface which has lost its lubricative film Old grease and dirty oil should be cleaned off Deteriorate has lost its lubricative quality and may contain abrasive foreign particles Don t use just any oil or grease Some oils and greases in particular should be used only in certain ap and may be harmful if used in an application for which they are not intended This manual makes ref molybdenum disulfide grease MoS 2 in the assembly of certain engine and chassis parts Always check ma recommendations before using such special lubricants 16 Electrical Wires All the electrical wires are either single color or two color and with only a few exceptions must be con wires of the same color On any of the two color wires there is a greater amount of one color and a lesser a second color so a two color wire is identified by first the primary color and then the secondary color For a yellow wire with thin red stripes is referred to as a yellow red wire it would be a red yellow wire if the co reversed to make red the main color Name of Wire Color Wire cross section Red Wire Strands Yellow Red Yellow Red 17 Replacement Parts When there is a replacement instruction replace these parts with new ones every time they are remov replacement parts will be damaged or lose their original function once removed 18 Inspection When parts have been disassembled visually inspect these parts for the following conditions or other d there is any doubt as to the condition of them replace them with new ones Abrasion Bent Color change Crack Dent Deterioration Hardening Scratch Seizure Warp Wear 19 Specifications Specification terms are defined as follows Standards show dimensions or performances which brand new parts or systems have Service Limits indicate the usable limits If the measurement shows excessive wear or deteriorated performan replace the damaged parts
