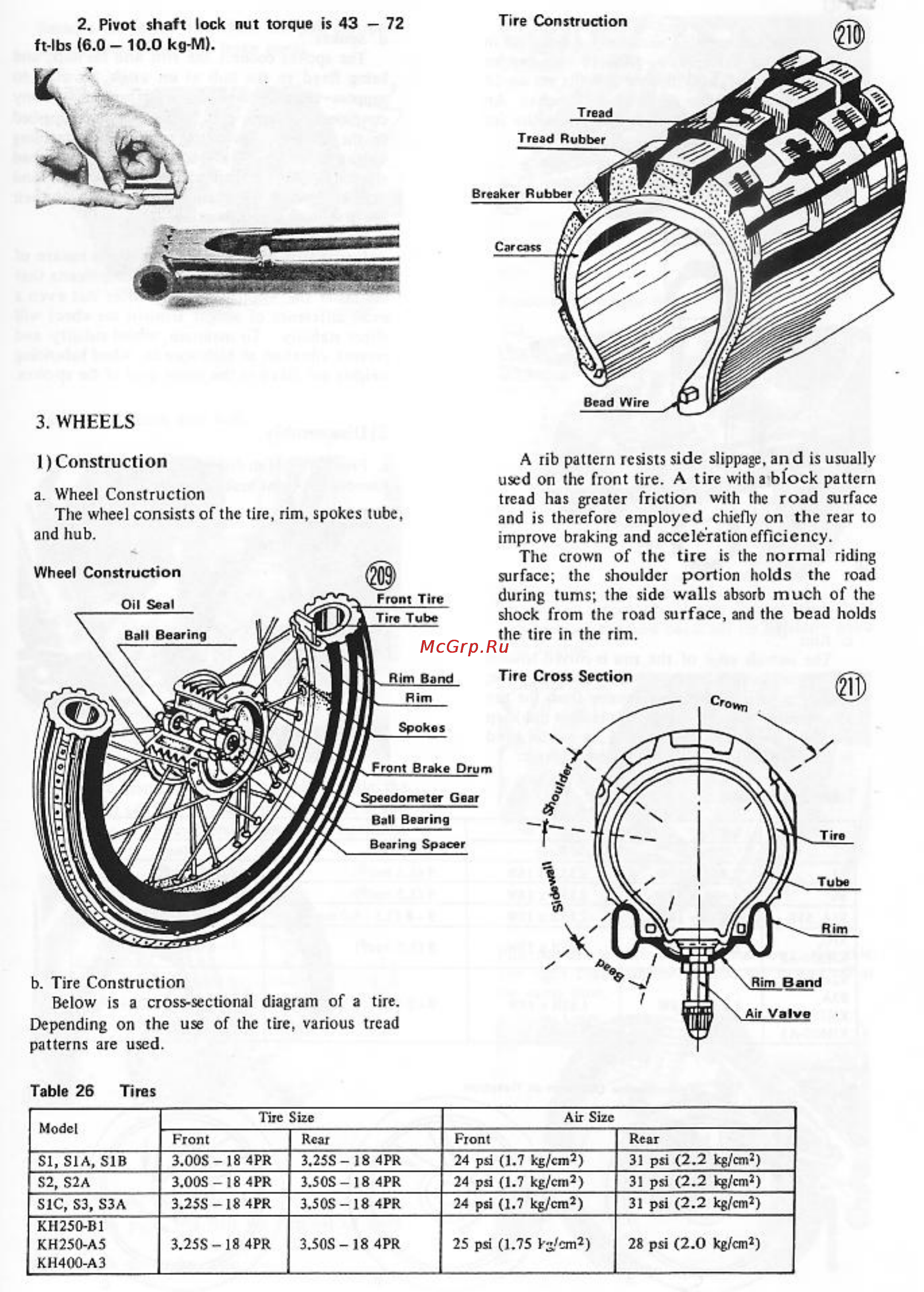

2 Pivot shaft lock nut torque is 43 72 ft lbs 6 0 10 0 kg M 3 WHEELS I Construction a Wheel Construction The wheel consists of the tire rim spokes tube and hub A rib pattern resists side slippage and is usually used on the front tire A tire with a block pattern tread has greater friction with the road surface and is therefore employed chiefly on the rear to improve braking and acceleration efficiency The crown of the tire is the normal riding surface the shoulder portion holds the road during turns the side walls absorb much of the shock from the road surface and the bead holds the tire in the rim b Tire Construction Below is a cross sectional diagram of a tire Depending on the use of the tire various tread patterns are used Table 26 Tires Model SI SIA SIB S2 S2A SIC S3 S3A KH250 B1 KH250 A5 Tire Size Front Rear 3 00S 18 4 PR 3 25S 18 4PR 3 00S 18 4PR 3 50S 18 4PR 3 25S I8 4PR 3 50S 18 4PR Air Size Front 24 psi 1 7 kg cm2 24 psi 1 7 kg ern2 24 psi 1 7 kg cm2 Rear 31 psi 2 2 kg cm2 31 psi 2 2 kg cm2 31 psi 2 2 kg cm2 3 25S 18 4PR 25 psi 1 75 Pg cm2 28 psi 2 0 kg cm2 3 50S 18 4PR
