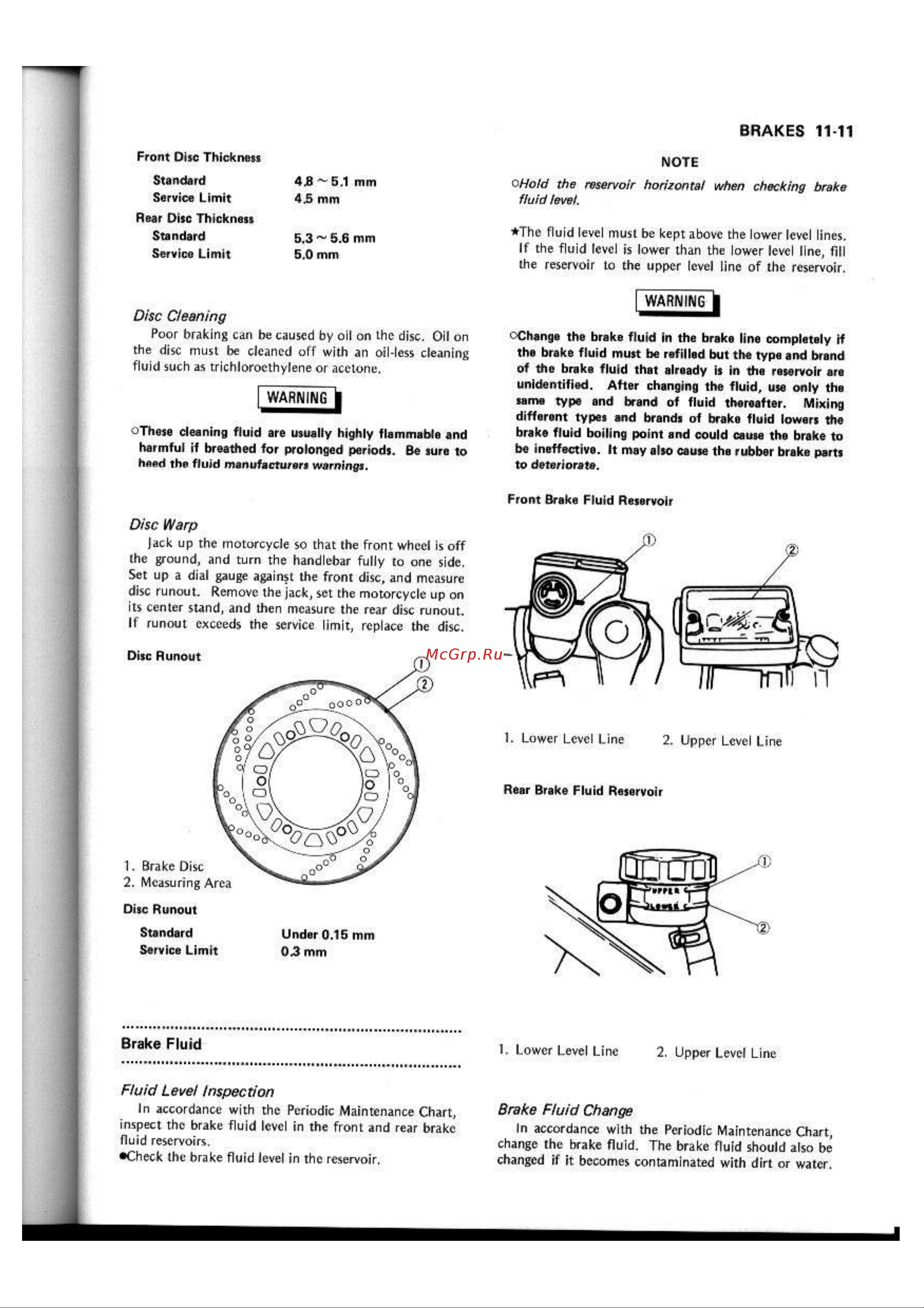

Kawasaki NINJA EX250R (1987) [166/248] Brakes 11 11

Kawasaki NINJA EX250R (1987) [166/248] Brakes 11 11

Содержание

Похожие устройства

BRAKES 11 Front Disc Thickness Standard Service Limit Rear Disc Thickness Standard Service Limit NOTE 45 5 1 mm 45 mm 5 3 5 6 mm 5 0 mm cHotd the reservoir horizontal when checking br fluid level The fluid level must be kept above the lower level lin If the fluid level is lower than the lower level line the reservoir to the upper level Une of the reservoir WARNING Disc Cleaning Poor braking can be caused by oil on the disc Oil on the disc must be cleaned off with an oil less cleaning fluid such as trichloroethylene or acetone WARNING j These cleaning fluid are usually highly flammable and harmful if breathed for prolonged periods Be sure to heed the fluid manufacturers warnings cChange the brake fluid in the brake line completel the brake fluid must be refilled but the type and br of the brake fluid that already is in the reservoir unidentified After changing the fluid use only same type and brand of fluid thereafter Mix different types and brands of brake fluid lowers brake fluid boiling point and could cause the brake be ineffective It may also cause the rubber brake pa to deteriorate Front Brake Fluid Reservoir Disc Warp Jack up the motorcycle so that the front wheel is off the ground and turn the handlebar fully to one side Set up a dial gauge against the front disc and measure disc runout Remove the jack set the motorcycle up on its center stand and then measure the rear disc runout If runout exceeds the service limit replace the disc Disc Runout 1 Lower Level Line 2 Upper Level Line Rear Brake Fluid Reservoir Disc Runout Standard Service Limit Under 0 15 mm 0 3 mm Brake Fluid 1 Lower Level Line 2 Upper Level Line Fluid Level Inspection In accordance with the Periodic Maintenance Chart inspect the brake fluid level in the front and rear brake fluid reservoirs Check the brake fluid level in the reservoir Brake Fluid Change In accordance with the Periodic Maintenance Char change the brake fluid The brake fluid should also b changed if it becomes contaminated with dirt or water
