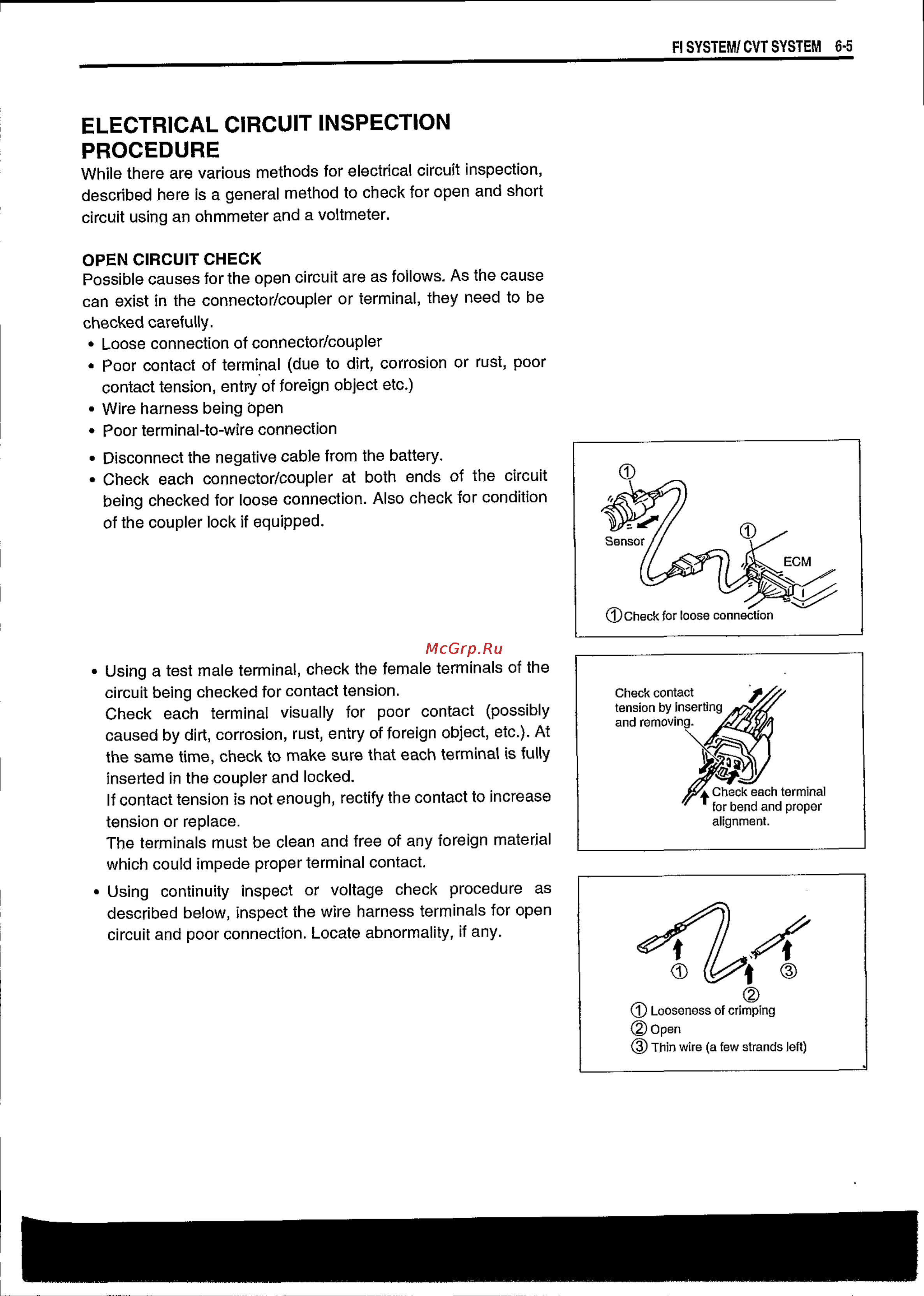

Fl SYSTEM CVT SYSTEM ELECTRICAL CIRCUIT INSPECTION PROCEDURE While there are various methods for electrical circuit inspection described here is a general method to check for open and short circuit using an ohmmeter and a voltmeter OPEN CIRCUIT CHECK Possible causes for the open circuit are as follows As the cause can exist in the connector coupler or terminal they need to be checked carefully Loose connection of connector coupler Poor contact of terminal due to dirt corrosion or rust poor contact tension entry of foreign object etc Wire harness being Open Poor terminal to wire connection Disconnect the negative cable from the battery Check each connector coupler at both ends of the circuit being checked for loose connection Also check for condition of the coupler lock if equipped Using a test male terminal check the female terminals of the circuit being checked for contact tension Check each terminal visually for poor contact possibly caused by dirt corrosion rust entry of foreign object etc At the same time check to make sure that each terminal is fully inserted in the coupler and locked If contact tension is not enough rectify the contact to increase tension or replace The terminals must be clean and free of any foreign material which could impede proper terminal contact Using continuity inspect or voltage check procedure as described below inspect the wire harness terminals for open circuit and poor connection Locate abnormality if any Check contact tension by inserting and removing Check each terminal for bend and proper alignment
