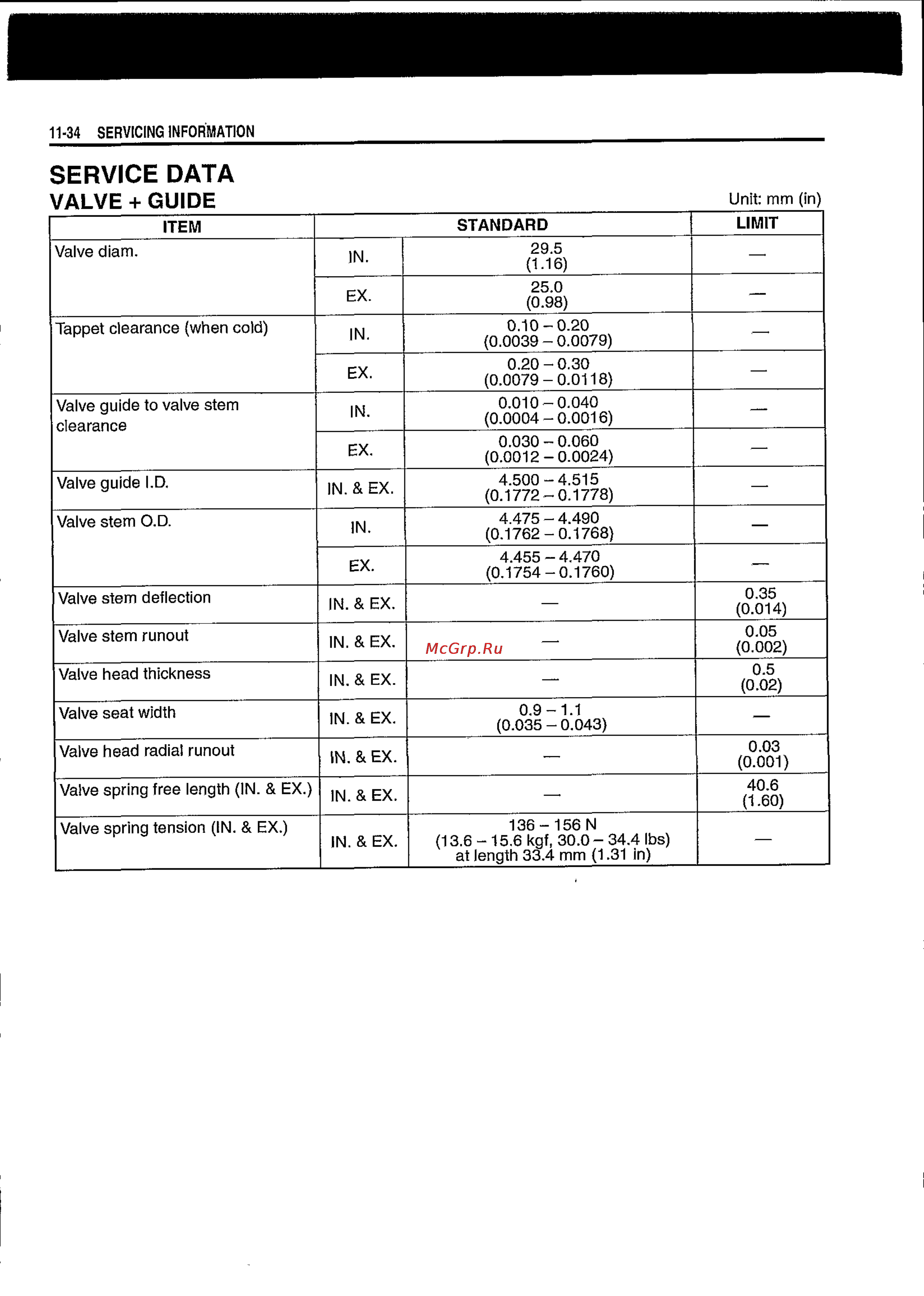

Suzuki BURGMAN AN650 (2003) [438/463] Service data
![Suzuki BURGMAN AN650 (2003) [438/463] Service data](/views2/1121328/page438/bg1b6.png)
